Publish Lists

Publish Lists are lists of tags which are exposed by the device using a "Pub/Sub" (publish and subscribe) protocol. These tags are refreshed periodically throughout the day. Their contained data is sent to the IoT Hub. These tags can then be used by any client. A Publish List can be connected to a Real-time tag or a Historical tag.

To Add a New Publish List:

In the Workbench, expand a project and the expand the Internet of Things node. Right-click on the Publish Lists node, as shown below, and then click on Add Publish List.

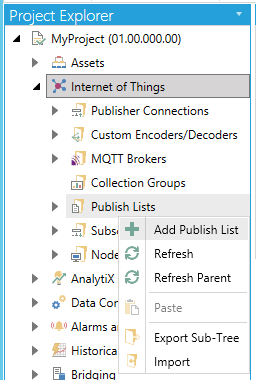

Add Publish List from Project Explorer in the Workbench

-OR-

Select Publish Lists then click on the Add Publish List button (shown below) in the Edit section of the Home ribbon in the Workbench.

Add Publish List Button

This opens the New Publish List properties in the middle of the Workbench shown below. The properties are split between the General and Published Points tabs, described below.

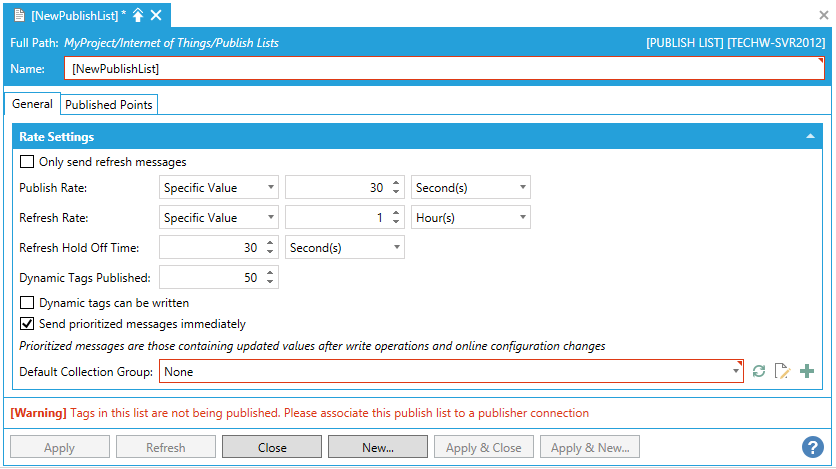

New Publish List Properties - General Tab

General Tab

Rate Settings

Only send refresh messages -Click this checkbox if you choose to only send Refresh messages. Selecting this option deactivates the Publish Rate setting below.
Publish Rate - Use the pulldown menu to select from either Specific Value or Trigger. If you select Specific Value, you can enter a rate in the nearby text entry field (or use the up/down arrows) and then select the units [Second(s), Minute(s), Hour(s), or Day(s)] in the pulldown menu to the right. If you select Trigger, you can enter a trigger in the text entry field or click on the button, which opens the Data Browser, allowing you to navigate to your selected trigger. The publish rate defines how often changed data values will be sent to the cloud.
Refresh Rate - Use the pulldown menu to select from either Specific Value or Trigger. If you select Specific Value, you can enter a rate in the nearby text entry field (or use the up/down arrows) and then select the units [Second(s), Minute(s), Hour(s), or Day(s)] in the pulldown menu to the right. If you select Trigger, you can enter a trigger in the text entry field or click on the button, which opens the Data Browser, allowing you to navigate to your selected trigger. The refresh rate defines how often all data will be sent to the cloud, including any values that have remained unchanged.
Refresh Hold Off Time - Enter a time in the first text entry field or use the up/down arrow buttons. In the next field, use the pulldown menu to select the units type from Second(s), Minute(s), Hour(s), or Day(s). This entry defines how long the IoT Publisher will wait after startup before sending the first refresh message.
Dynamic Tags Published - Enter the number of dynamic tags to publish in the text entry field (or use the up/down arrows). Subscribers are allowed to request points from a device that are not defined in its publish list. Such points are called "Dynamic Tags" and the settings here allow the user to limit how many of these tags can be requested.
Dynamic tags can be written - Click this checkbox to allow dynamic tags to be written.
Send prioritized messages immediately - Click this checkbox to send prioritized messages right away rather than wait for normal priority message rate settings. NOTE: Prioritized messages are those containing updated values after write operations and online configuration changes.
Default Collection Group - Use the pulldown menu to select a default from configured Collection Groups. Click on the button to refresh the list of Collection Groups. Click on the button to edit the list of existing Collection Groups. Click on the button to add a new Collection Group. The collection group defines how often the values for the points in the publish list are collected on the device.
Default Logger - Use the pulldown menu to select a default from configured Loggers. Click on the button to refresh the list of Loggers. Click on the button to edit the list of existing Loggers. Click on the button to add a new Logger. The logger is used to log the tags that have been configured for Local Buffering and HDA.
Analyzer Group -Use the pulldown menu to select a default from configured Analyzer Groups. Click on the button to refresh the list of Analyzer Groups. Click on the button to edit the list of existing Analyzer Groups. Click on the button to add a new Analyzer Group.

Published Points Tab

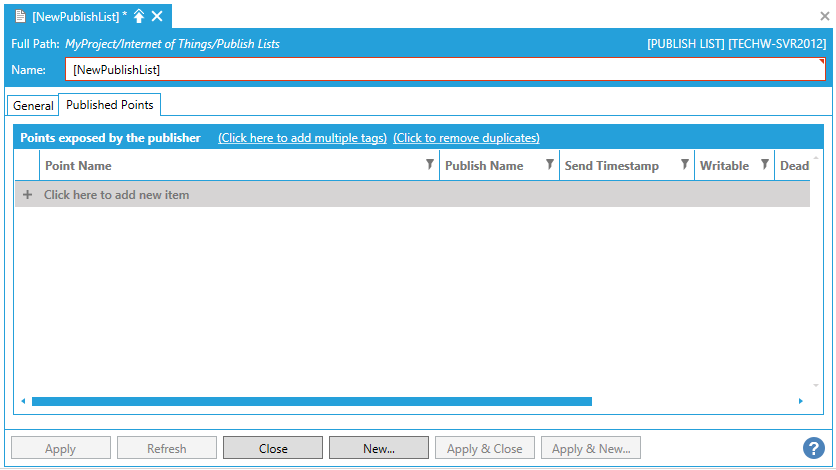

Published Points Tab in the New Publish List Properties

Specify the points that will be exposed by the publisher

You can add multiple points by clicking on Click here to add multiple tags. This opens the Data Browser where you can navigate to your selected tags.

You can also click on Click to remove duplicates which will delete any identical published points.

You can add single points by clicking on + Click here to add new item. This changes the property window, as shown below.

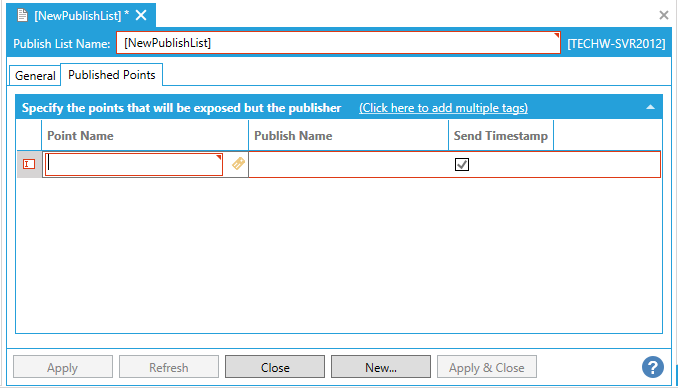

Added Point Name Entry

Enter a Point Name or click on the button to open the Data Browser and navigate to your selected tag. Enter a Publish Name for how you want this data point to appear in the IoT Hub. Ensure that the Send Timestamp checkbox is checked (it is checked by default) if you want timestamp info included with the data point. You can select if the point is Writable or not via the checkbox. You can opt for the selected point, via checkbox, whether you want to associate it with Real Time Publishing, Local Buffering and HDA, and/or Cloud Buffering and HDA (if enabled). You can enter a Deadband in the text entry field for that cell. You can also select the associated Collection Group and Logger via those columns'' pulldown menus.

Click Apply to save your changes and Close to return to the Workbench. Your new Publish List will now appear in the Project Explorer.
