The features on this page require a GENESIS64 Advanced license and are not available with GENESIS64 Basic SCADA . |
|
|
The features on this page require a GENESIS64 Advanced license and are not available with GENESIS64 Basic SCADA . |
The Search capabilities within ICONICS software suites (GENESIS64, AnalytiX, Hyper Historian, MobileHMI) have been improved in V10.95.
Global Search has been improved for the following components:
Global Search Settings can be configured under the FrameWorX node (in Global Search Settings) in the Workbench.
Global Search is enabled through a Global Search Point Manager, which can find terms within BACnet, SNMP, OPC and OPC UA connections. A SQL Server CE cache allows for quick searching. The Global Search Point Manager can be configured through the Workbench.
An AssetWorX Search is completed through the AssetWorX Point Manager, which is optimized for assets. This speeds up and simplifies the process of an AssetWorX Search.
Searches can help locate an exact match for a single term or a combination of terms. Searches also support the use of Wildcards (e.g *, ?), which matches standard Windows behavior. For more information on this topic, visit https://msdn.microsoft.com/en-us/library/069b0htd.aspx.

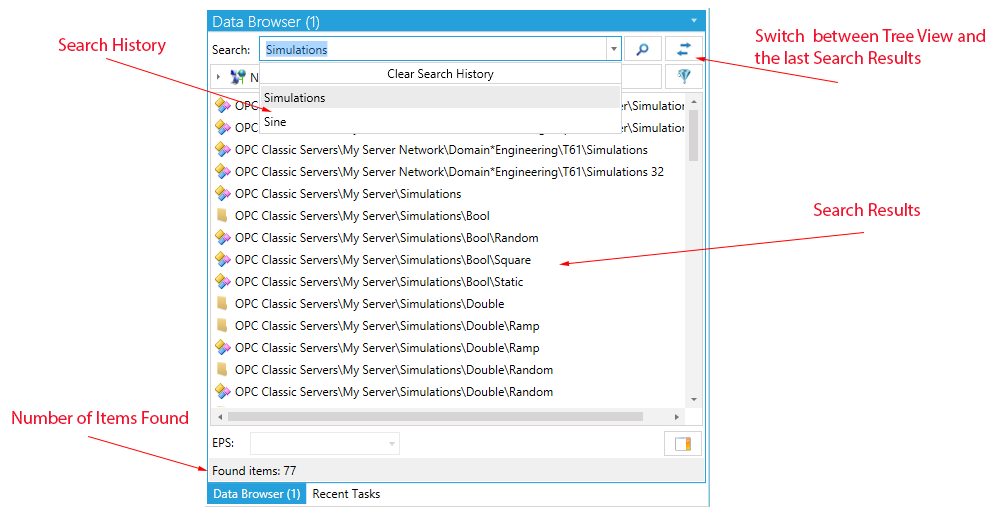

Data Browser Search Example

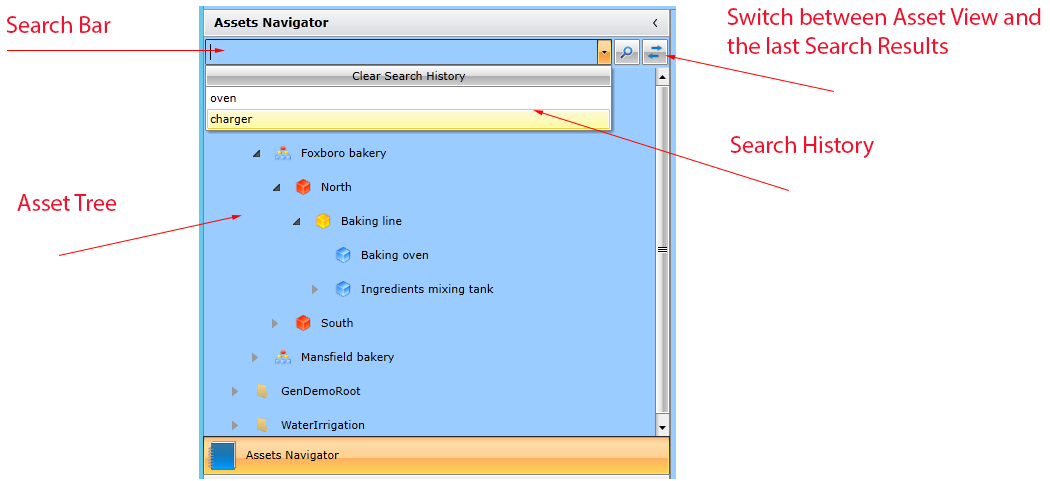

Asset Navigator Search Example - Asset Tree View

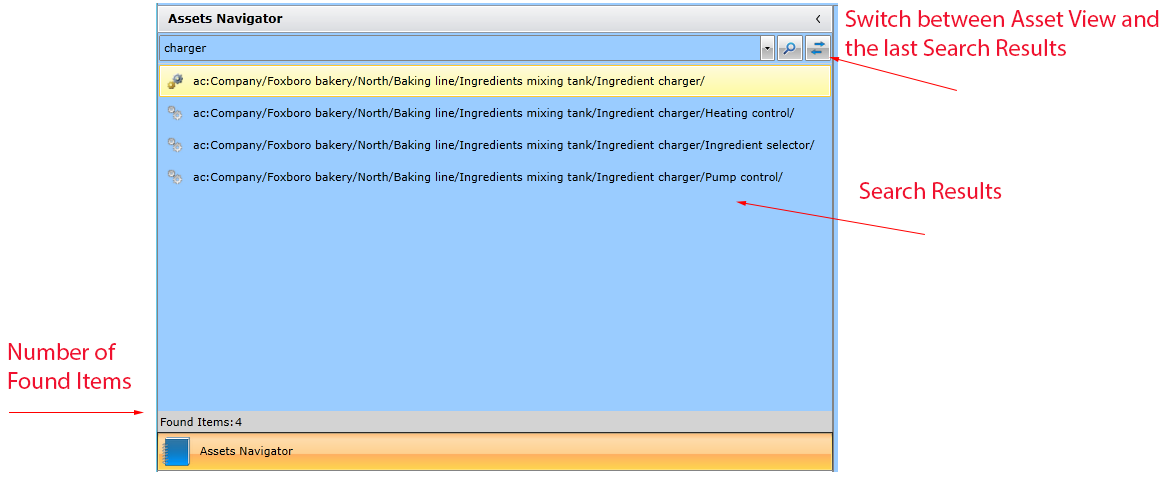

Asset Navigator Search Example - Search Results View

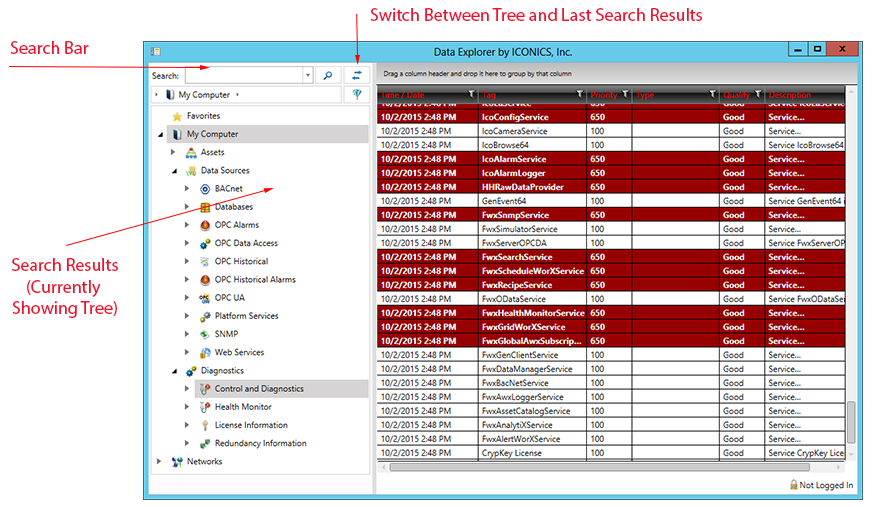

Data Explorer Search Example

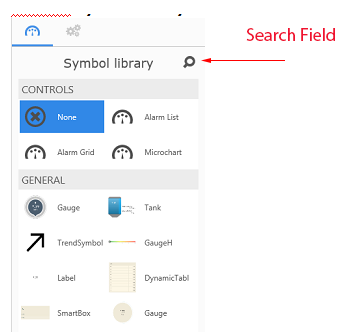

KPIWorX (Symbol Library) Search Example

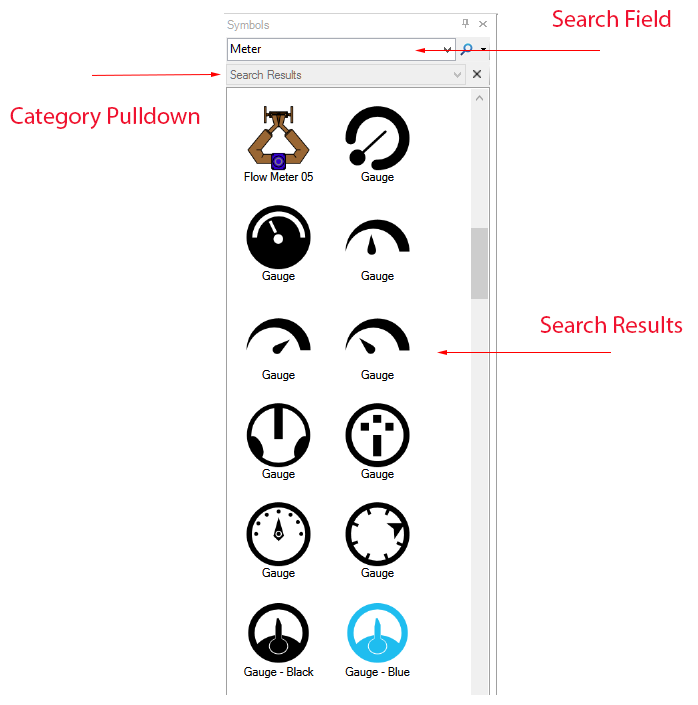

Symbol Library Search Example
See Also:
Asset Navigator
