Energy AnalytiX at a Glance
Energy AnalytiX classifies the collected data by functionality, including:
Meter Data
Weather Data
Cost Data
Energy Variables (such as occupancy)
Energy Calculations
Internally, it creates interval-based data both for meter summaries as well as energy calculations for key periods such as:
· Base Summary Interval (e.g., every 15, 20, or 30 minutes, etc.)
The above interval defines the output resolution of energy calculations such as consumption, cost or carbon.
In addition, Energy AnalytiX utilizes energy variables to produce rich energy-related analytical data, which can be easily displayed in built-in charts and reports as well as third-party analytical tools such as Power BI.
In order to facilitate advanced analytical capabilities, Energy AnalytiX utilizes several key concepts at the provider configuration level.
Expanded Energy AnalytiX Provider in the Project Explorer in the Workbench
These key concepts provide rich analytics results and allow Energy AnalytiX to support advanced data insights and reports.

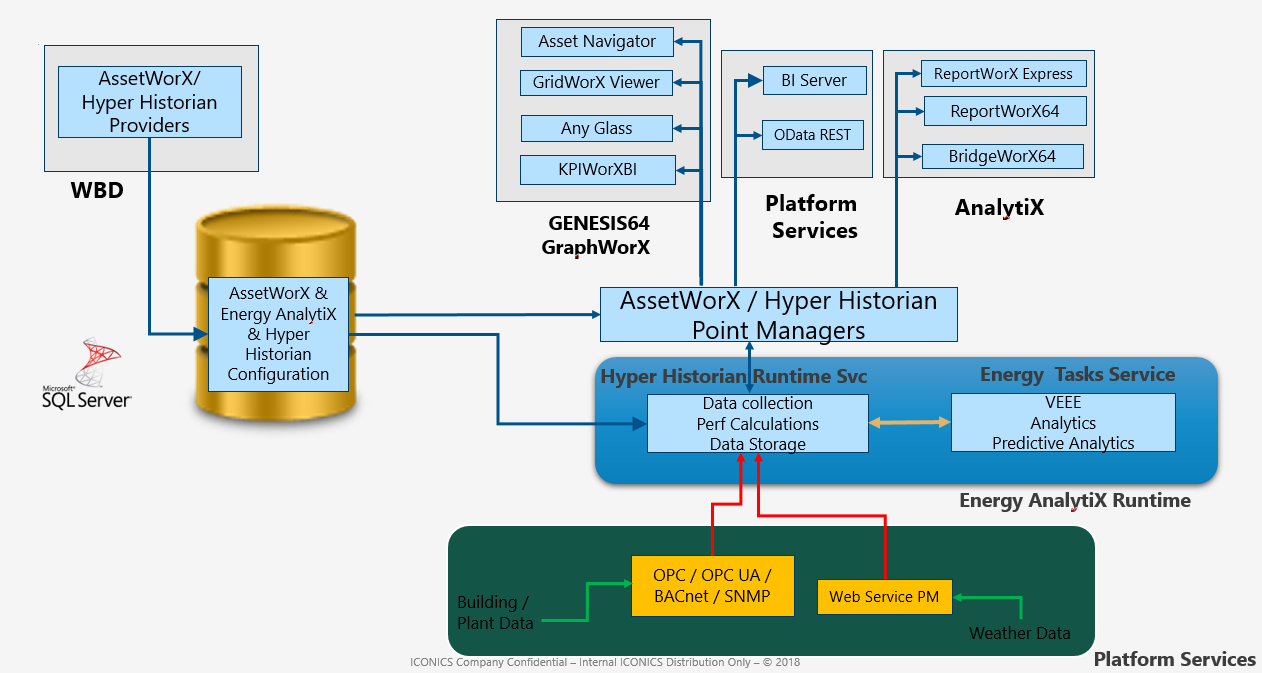

Energy AnalytiX Internals
See Also:
How Energy AnalytiX Runtime Works
Working with Energy AnalytiX Runtime Modules
