Expression Editor

The Expression Editor, shown independently below, is available to assist you in creating local and global expressions for your GENESIS64 applications.

When opened from the Unified Data Manager, it creates an expression that is added to a global expression. However, the Expression Editor also appears on the Expression tab of the Data Browser. In the Data Browser, the expression you create is a local one, suited solely for a local purpose. The expression is not reusable in and of itself, although the editor does provide a drop-down list that lets you see the last 50 expressions that were created it the editor.

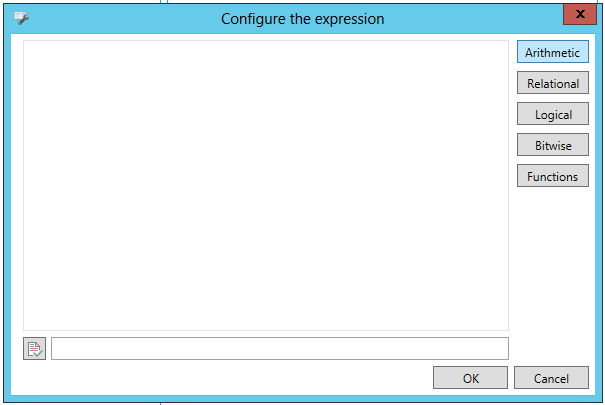

Expression Editor ('Configure the expression' window)

Each button in the Expression Editor displays a list of available functions. In cases such as the Variables button, the OPC tabs of the Data Browser are opened to allow you to make an assignment based on tag values. With this editor, you can build an expression, then use the Check Syntax button at the bottom left to make sure you've built it correctly. The important thing to remember about the Expression Editor is that although it checks your expression syntax, it does not check whether the expression is correctly applied.

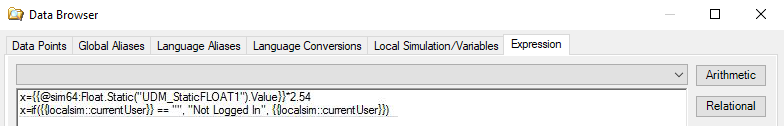

The drop-down list at the top of the Edit Expression dialog box keeps track of the last 50 expressions you have entered. The expression entered most recently is the first one in the drop-down list.

Let's take a look at ways to write local expressions.

Writing Expressions

An expression is a string that defines and evaluates a data connection between a client and an OPC server. During runtime mode, OPC servers resolve the data value for the expression. To indicate that a data connection is an expression, precede the string with the "x=" token, as shown below:

x={{ICONICS.Simulator.1\SimulatePLC.PumpSpeed}}

The OPC tag is surrounded by double braces {{ and }}. Parameters are surrounded by double carets << and >>. For example, the expression for calculating a conversion from Celsius to Fahrenheit reads:

x= (<<Thermometer>>*1.8)+32

Where the <<Thermometer>> parameter will be substituted when the expression is in use.

You can either type your expressions directly into the text box of the Edit Expression dialog box, or you can use the symbols and functions provided that help you use the proper string syntax when writing expressions. There are certain options you can use when writing expressions; they include String Expressions, String Comparison, Data type Conversion and Point Extension Syntax. The Expression Editor also provides buttons that list available functions to assist you in writing expressions; click on one of the hyperlinks to go do a more detailed discussion:

• Arithmetic

• Relational

• Logical

• Bitwise

• Code Blocks

• Functions

• Variables opens another instance of the Data Browser so you can make an assignment based on tag values; refer to Data Type Conversion and Point Extension System (PES), below

Strings in Expressions

Strings can be used in expressions. Constant strings are delimited with double quotation marks. For example:

“Hello World”

Constant strings can also be enclosed between $” and “$ characters. For example:

$”Hello World”$

Back to top

String Comparison

When comparing strings or numeric data coming from the server as strings, the comparison is based on the orders of the characters. For example, the expression...

x="world" > "hello"

...evaluates as true, because the character “w” comes after the character “h” in alphabetical order.

Sometimes the string comparison may be misleading. For example...

x="20" > "100"

...evaluates as true, because the character "2" comes after the character "1" in the character table. Of course, if there were an expectation of a numeric comparison, 20 < 100 and the above expressions might seem to be evaluated incorrectly, but they are not.

Back to top

Data Type Conversion

Expressions allow calculations to be performed on incoming data. An OPC server can provide data in one or more data types, such as "float," "long," "integer," "string," etc. Some OPC servers provide numeric data as a string. For example, the numeric value 20 may be provided as the string “20” (character "2" followed by character "0"). This may be lead an incorrect expression evaluation (see the String Comparison section above).

There is a workaround, though. If you add a numerical zero to each of the tags, the logic operators will work properly. For example:

x=({{JC.N1OPC.1.0\HDQTRS\sys2\ad-3.Present Value}}+0) > ({{JC.N1OPC.1.0\HDQTRS\sys2\ad-4.Present Value}}+0)

Some of the functions provided in the Expression Editor use parameters of type numeric. When possible, the Expression Editor automatically converts the string into a number. For example, the string “20” can automatically be converted to the number 20.

But if the string contains alphabetic characters or symbols, then the automatic conversion is impossible. For example, the string “20hello” cannot be converted into a number.

Even if the string contains only numeric characters and valid symbols, there may still be cases in which an automatic conversion is not possible. For example, the string “123.45.23” cannot be converted into a number because it contains two decimal separators.

Sometimes strings and numbers are mixed in expressions. In this case, the Expression Editor attempts to convert the string into a number. For example:

Str + Number, where Str is a string convertible to a Number, results in a Number.

If the string is not convertible into a number, then the result will have a bad quality.

The following is an example of a valid expression:

x=5+”6”

Back to top

Point Extension Syntax

The Point Extension Syntax (PES) allows for retrieving additional information related to OPC tags, such as quality and timestamp.

To use the PES:

1. Prefix your tag name with “tag:”

2. Postfix your tag name with “#” followed by a PES token.

Valid PES tokens are:

• quality (returns the OPC quality associated with the tag value)

• timestamp (returns the timestamp associated with the tag value)

The following are example expressions using a valid PES request:

• tag: ICONICS.Simulator\SimulatePLC.Ramp#timestamp

• tag: ICONICS.Simulator\SimulatePLC.Ramp#quality

• tag:\\pc1\ICONICS.Simulator\SimulatePLC.Ramp#timestamp

• tag:\\pc1\ICONICS.Simulator\SimulatePLC.Ramp#quality

Back to top

Arithmetic Expressions

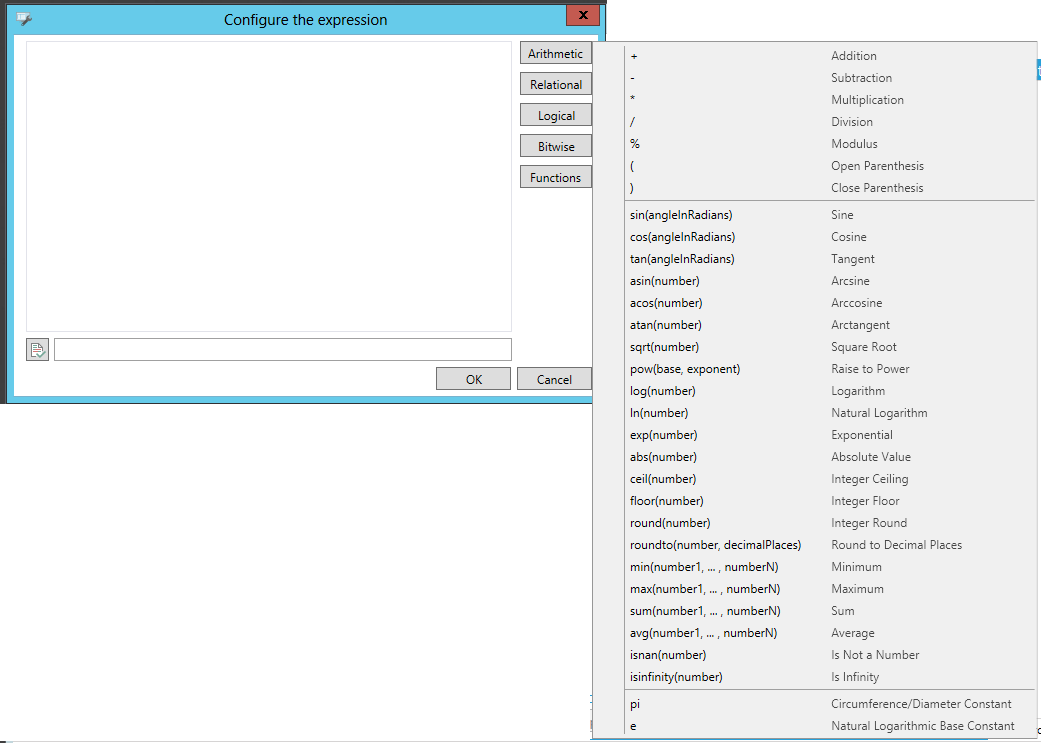

Symbols on the Arithmetic menu are shown in the figure below.

Arithmetic Symbols Menu

The symbols '+', '-', '*', '/' and '%' use the following format:

parameter symbol parameter

Where parameter is a local variable, an OPC tag, a constant, or another expression. The expression results in a number of any type (float, long, etc.). Some examples are shown in the table below.

Arithmetic Expression Examples

Back to top

Relational Expression

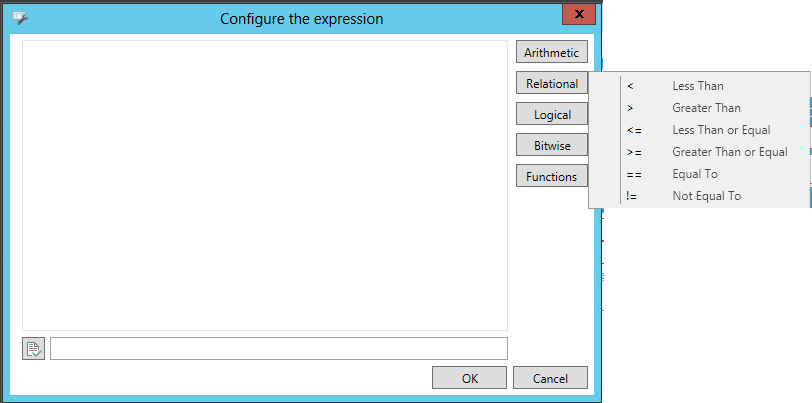

Symbols on the Relational menu are shown in the figure below.

Relational Symbols Menu

The symbols '<', '>', '<=', '>=', '==' and '!=' use the following format:

parameter symbol parameter

Where parameter is local variable, an OPC tag, a constant, or another expression. The result of the expression results in a Boolean value (0 or 1). The following table shows some examples of relational expressions.

Relational Expression Examples

Back to top

Logical Expressions

Symbols on the Logical menu are shown in the figure below.

Logical Symbols Menu

The symbols '&&' and '||' use the following format:

parameter symbol parameter

And the symbol '!' uses the following format:

symbol parameter

where parameter is a local variable, an OPC tag, a constant, or another expression for the symbol && or || or !. The result of the expression is the Boolean value (0 or 1). Refer to the table below for some examples of logical expression.

Logical Expression Examples

Back to top

Bitwise Expressions

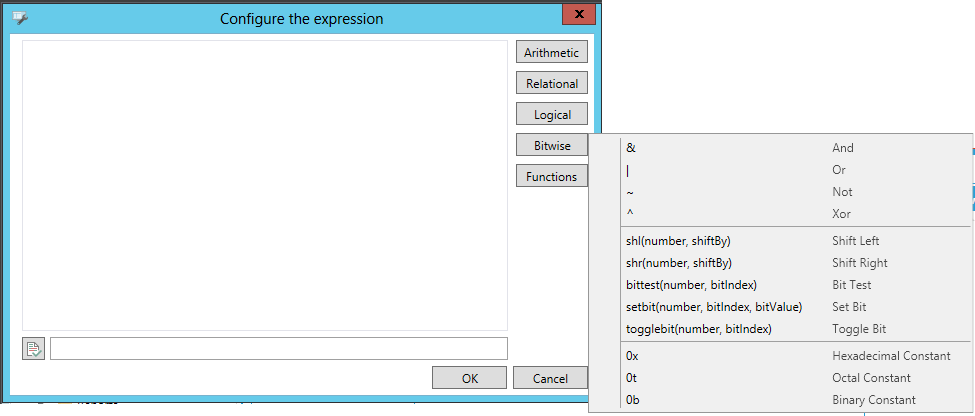

Symbols on the Bitwise menu are shown in the figure below.

Bitwise Menu

The symbols '&', '|', and '^' of the bitwise group use the following format:

parameter symbol parameter

where parameter is a local variable, an OPC tag, a constant, or another expression.

The symbol '~' of the logical group uses the following format:

~ parameter

The symbols ' shl' and ' shr' of the bitwise group use the following format:

symbol (number, shift by)

Where number must be a local variable, an OPC tag, a constant, or another expression; and shift by sets the number of bits to shift.

The symbol ' bittest' of the bitwise group uses the following format:

BitTest (number, bit position)

Where number is a local variable, an OPC tag, a constant, or another expression; and bit position sets is the position of the bit to test. A bit position of "0" indicates the "less significant" bit.

The following two examples use the variables ~~var1~~ and ~~var2~~ in several expressions that use bitwise symbols.

In Example 1, the decimal values for these variables are:

~~var1~~ = 8

~~var2~~ = 10

In Example 2, the decimal values for these variables are:

~~var1~~ = 96

~~var2~~ = 8

Back to top

Code Blocks

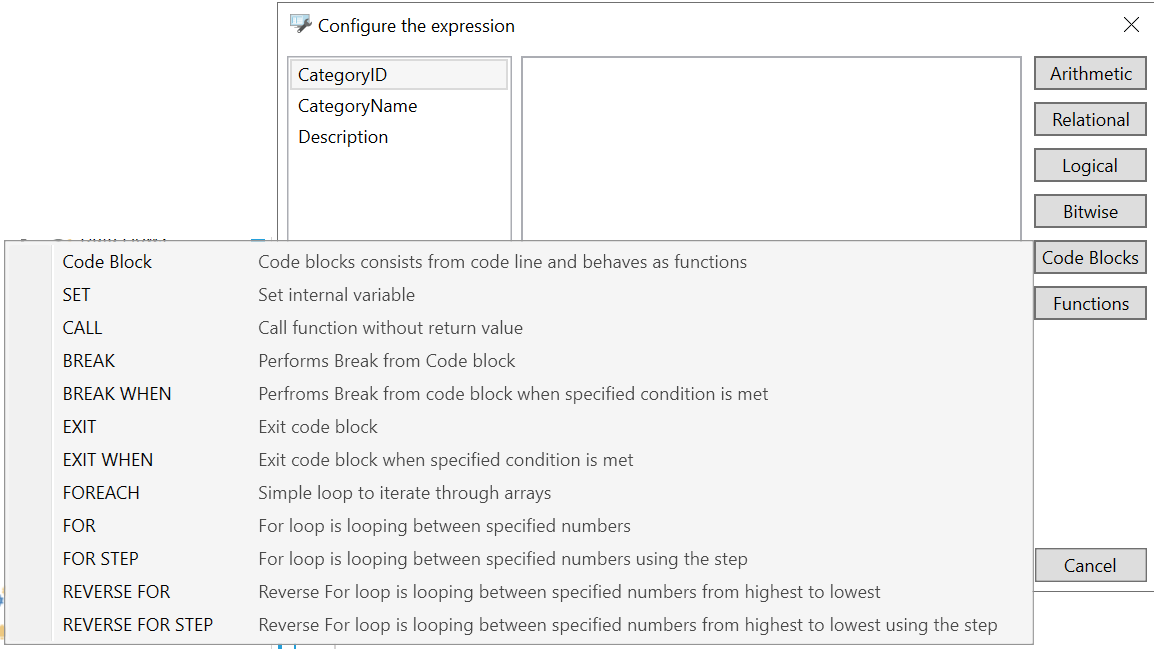

Symbols on the Code Blocks menu are shown in the figure below.

Code Blocks Menu

As new functionality has been added to the expression engine over the years, expressions have grown more and more complex, difficult to read, and difficult to maintain. To help simplify complex expressions, users can now optionally use Code Blocks, which provide looping functionality and fast access to internal variables.

DECLARE

Optional internal variable declaration section

(example: @myvariable; @mysecondVariable = 10;)

BEGIN

Code section with code lines...

END

Each code block returns a single value. Code blocks can be used by themselves or in line with standard expression editor functions.

Inside the code section of a code block, users can utilize new commands, such as SET, FOR, FOREACH and EXIT.

Click HERE for more info on Code Blocks and Looping.

Back to top

Functions Expression

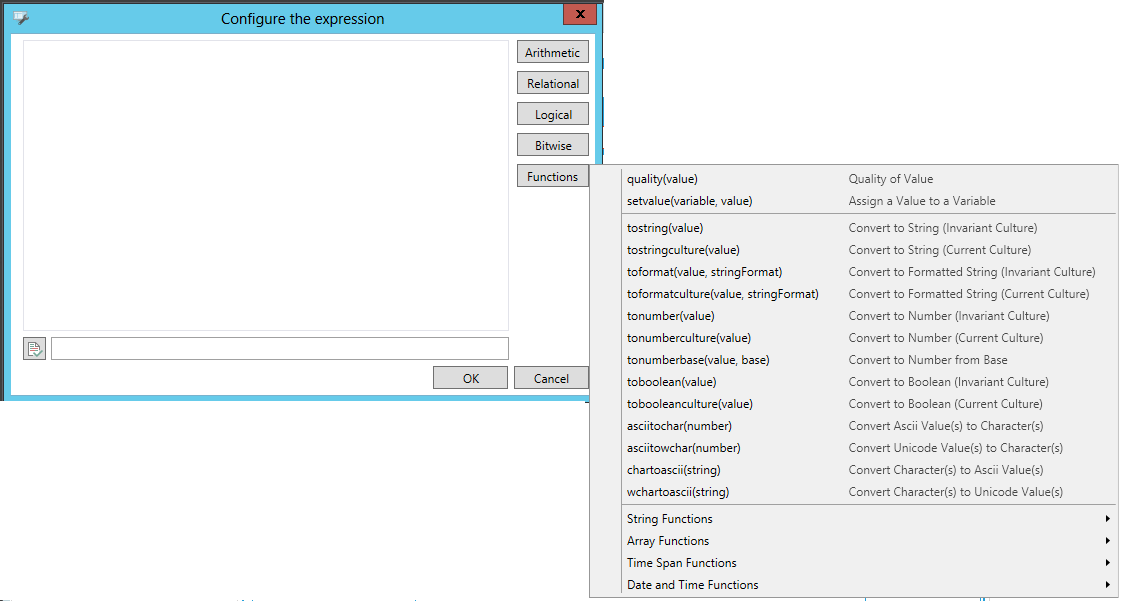

Symbols on the Functions menu are shown in the figure below.

The Functions Menu

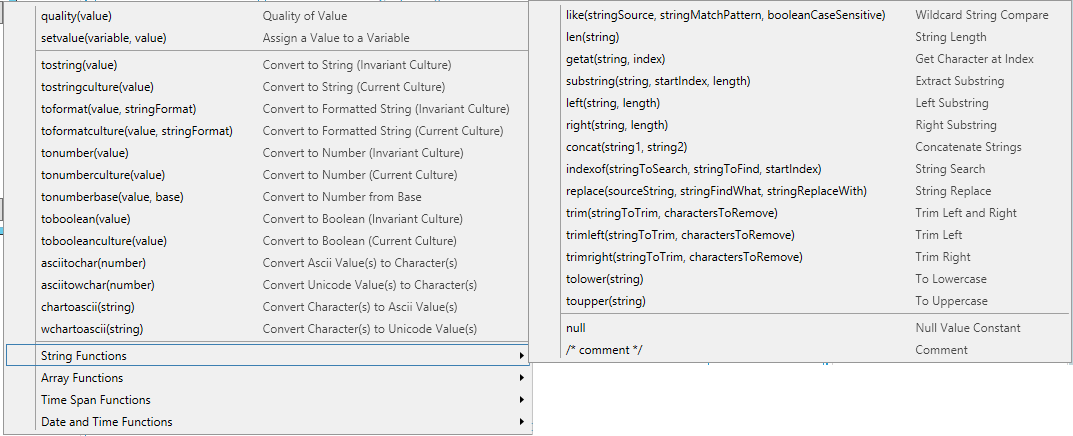

String Functions

String Functions

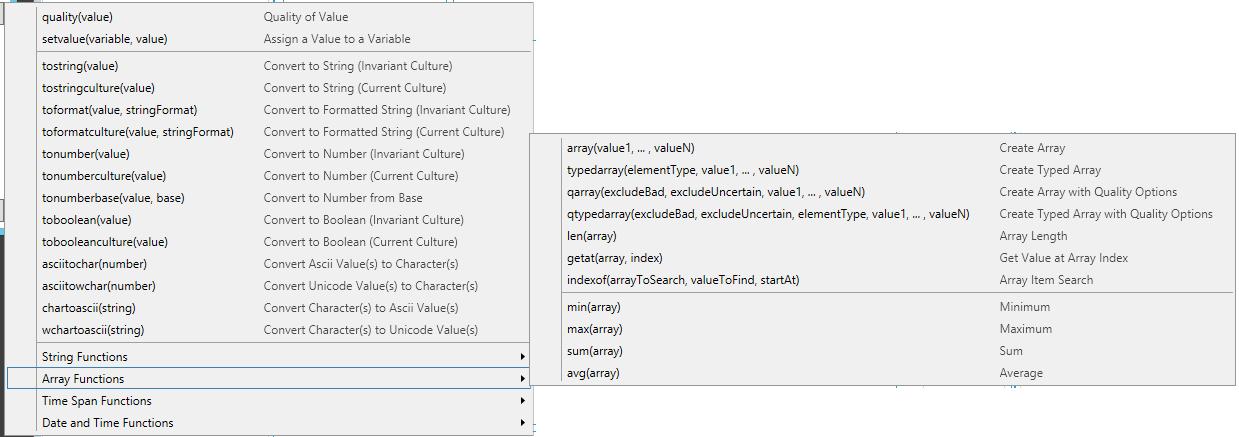

Array Functions

Array Functions

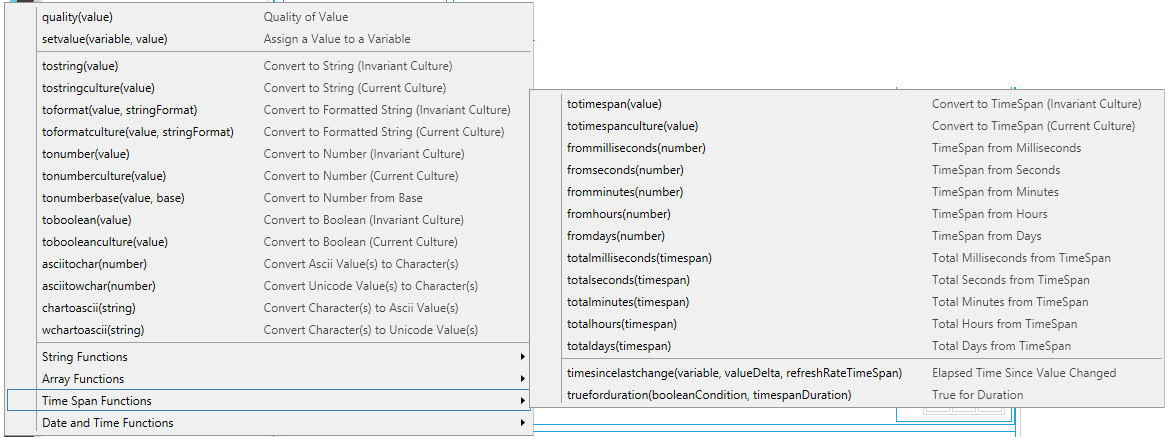

Time Span Functions

Time Span Functions

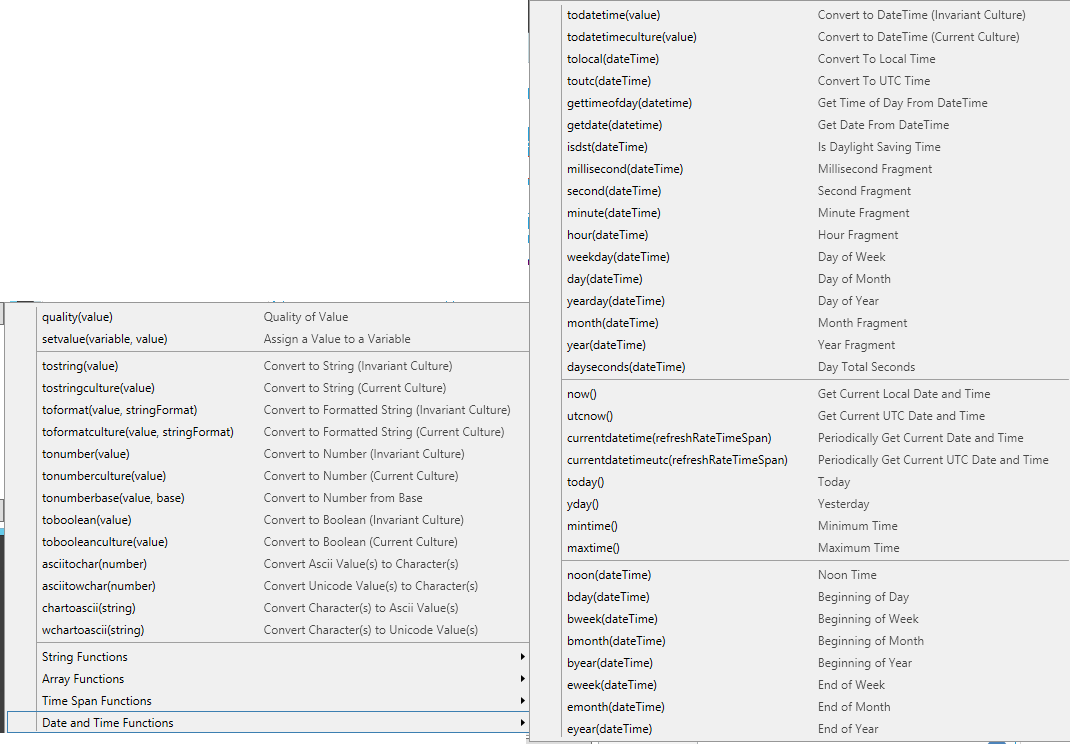

Date and Time Functions

Date and Time Functions

Time conversion functions are implemented by forwarding the calls to the .NET equivalents. In .NET a DateTime object can be of 3 possible kinds (determined by the Kind property):

• Local

• UTC

• Unspecified

Conversions may have different results depending on the Kind property.

For example, this is the conversion table for tolocal based on the Kind property:

For the toutc function:

As you can see the Kind.Unspecified has 2 opposite behaviors depending on the function you are calling. Even converting from string to datetime can give you different kinds. Consider:

tolocal(todatetime("2022-03-29T15:00:00")) à returns 17:00 because the conversion from string returns 15:00 with Kind.Unspecified (assumed UTC)

tolocal(todatetime("2022-03-29T15:00:00Z")) à returns 17:00 because the conversion from string returns 15 with Kind.Utc (UTC)

tolocal(todatetime("2022-03-29T15:00:00+02")) à returns 15:00 because the conversion from string returns 15:00 with Kind.Local (local, so no conversion)

Back to top
