System Configuration

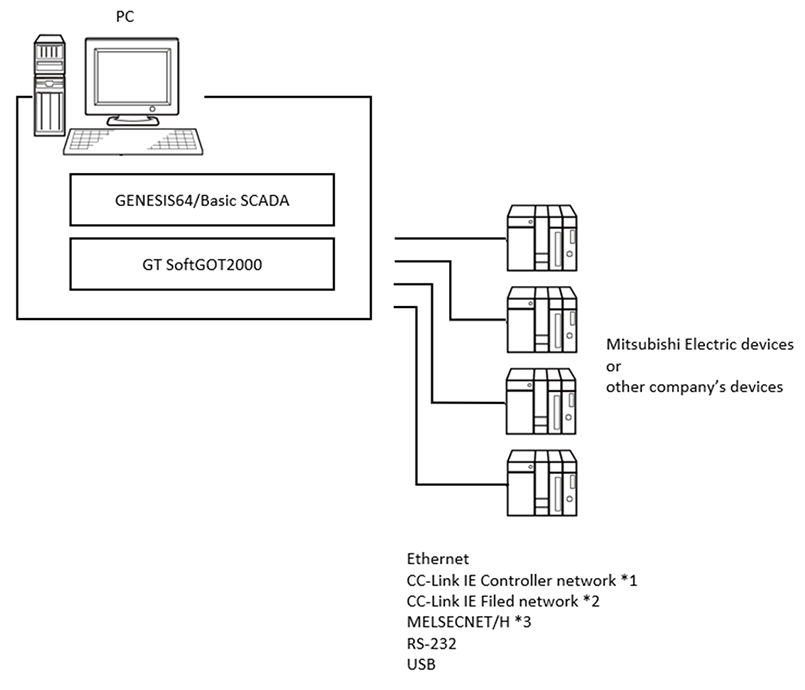

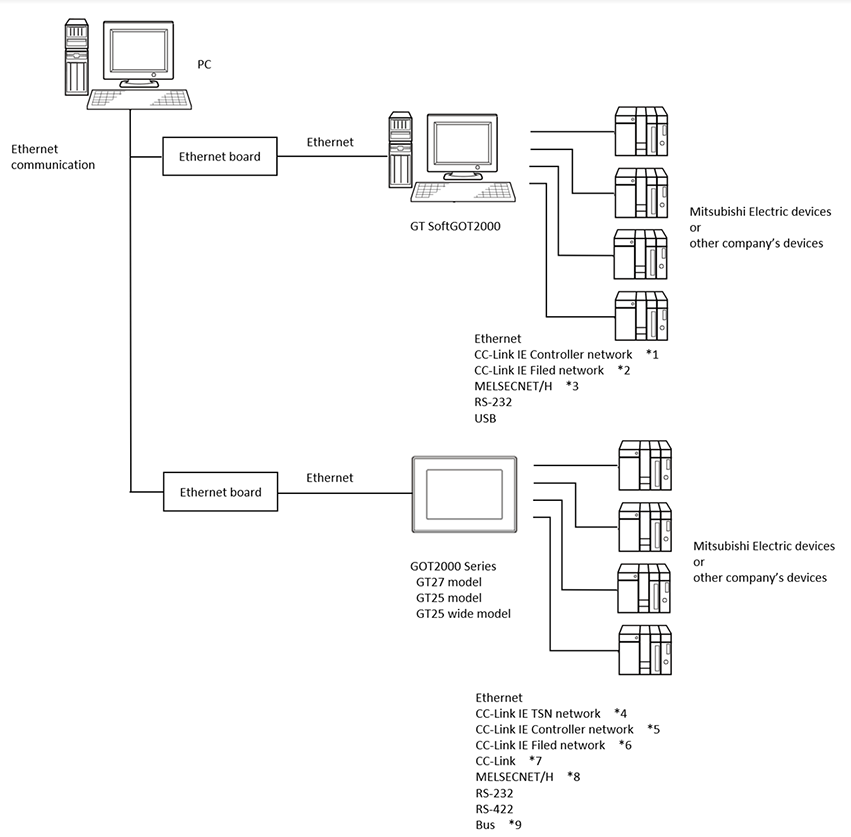

MELSEC System Configuration

The system configuration when using MELSEC is shown for each communication protocol. For details on the cables used, refer to the manuals for each Mitsubishi Electric product.

System Configuration Details

Communication Method with a Personal Computer	Connection Method	Connected Device
CPU USB Communication	USB	RCPU, FX5CPU, QCPU (Q mode), QSCPU, LCPU, FXCPU, LHCPU *4
Serial Communication*1	RS-232	C24 module for RCPU, QCPU, LCPU
		FX5 expansion board (FX5-232-BD)
		FX5 expansion adapter (FX5-232-ADP)
		CPU built-in serial port (QCPU (Q mode), LCPU) *5
		FX3 expansion board (FX3G-232-BD, FX3U-232-BD)
		FX3 special adapter (FX3U-232ADP-MB)
	RS-232/RS-485 conversion	FX5 expansion board (FX5-485-BD)
		FX5 expansion adapter (FX5-485-ADP)
		FX5 built-in serial port
	RS-232/RS-422 conversion	FX3 expansion board (FX3G-422-BD, FX3U-422-BD)
	RS-232/RS-422 conversion	FX3 built-in serial port
Ethernet Communication *2	Ethernet board – Ethernet	Ethernet unit (RCPU, QCPU (Q mode), QSCPU, LCPU)
		Ethernet built-in CPU (RCPU, FX5CPU, QCPU (Q mode), LCPU, FXCPU, LHCPU) *6
		FX3 Ethernet interface block (FX3U-ENET-L)
		FX3 special adapter (FX3U-ENET-ADP)
		CC-Link IE TSN unit (RCPU*3)
CC-Link IE Controller Network Communication	CC-Link IE controller network board - CC-Link IE controller network	CC-Link IE controller network module (RCPU, QCPU (Q mode), QSCPU)

*1 Communicate with MELSOFT connection. For details, refer to the manual of the connected Mitsubishi Electric product.

*2 When the connected device communicates with multiple MELSOFT (Mitsubishi Electric's engineering software products such as GX Works3) by TCP, the same number of settings as the connected MELSOFT (MELSOFT connected device settings) are need to be set in the parameter settings of the connected device. For details, refer to the manual of the connected Mitsubishi Electric product.

*3 Not compatible with RnPCPU and RnPSFCPU.

*4 Excluding FX5U, FX5UC, FX3U, FX3UC.

*5 Excluding Q00UJ, Q00U, Q01U, Q02U, Q03UD, Q04UDEH, Q06UDEH, Q10UDEH, Q13UDEH, Q20UDEH, Q26UDEH, Q50UDEH, Q100UDEH, Q04UDPV, Q06UDPV, Q13UDPV, Q26UDPV, Q03UDV, Q04UDV, Q06UDV, Q13UDV, Q26UDV, L02/L02-P, L06/L06-P, L26/L26-P, L26-BT/L26-PBT.

*6 Excluding Q01U, Q02U, Q03UD, Q04UDH, Q06UDH, Q10UDH, Q12PRH, Q13UDH, Q13UDH, Q20UDH, Q25PRH, Q26UDH, QS001, L02/L02S-P.

Components

Available PLC CPU

The programmable controller CPUs that can be used with this product are shown below. Devices not listed in the table cannot be used.

Available PLC CPU

Type	List of model names
RnCPU	R00CPU, R01CPU, R02CPU, R04CPU, R08CPU,R16CPU, R32CPU, R120CPU
RnPCPU	R08PCPU, R16PCPU, R32PCPU, R120PCPU
RnSFCPU	R08SFCPU, R16SFCPU, R32SFCPU, R120SFCPU
RnPSFCPU	R08PSFCPU, R16PSFCPU, R32PSFCPU, R120PSFCPU
RnENCPU	R04ENCPU, R08ENCPU, R16ENCPU, R32ENCPU, R120ENCPU
FX5CPU	FX5UCPU, FX5UCCPU, FX5UJCPU
QnPRHCPU	Q12PRHCPU, Q25PRHCPU
QnU(J)CPU, QnUD(E)HCPU	Q00U(J)CPU, Q01UCPU, Q02UCPU, Q03UD(E)CPU, Q04UD(E)HCPU, Q06UD(E)HCPU, Q10UD(E)HCPU, Q13UD(E)HCPU, Q20UD(E)HCPU, Q26UD(E)HCPU, Q50UDEHCPU, Q100UDEHCPU
QnUDPVCPU	Q04UDPVCPU, Q06UDPVCPU, Q13UDPVCPU, Q26UDPVCPU
QnUDVCPU	Q03UDVCPU, Q04UDVCPU, Q06UDVCPU, Q13UDVCPU, Q26UDVCPU
QSCPU	QS001CPU
LnCPU	L02CPU, L02CPU-P, L02SCPU, L02SCPU-P, L06CPU, L06CPU-P, L26CPU, L26CPU-BT, L26CPU-P, L26CPU-PBT
FX3CPU	FX3G, FX3GC, FX3S, FX3U, FX3UC, FXUC-32MT-LT (-2)
LHCPU	L04HCPU, L08HCPU, L16HCPU

Available PLC Module and Adapter

The PLC modules/adapters that can be used with this product are shown below. Devices not listed in the table cannot be used.

Available PLC Module/Adapter

Type	List of model names
C24 module for RCPU	RJ71C24, RJ71C24-R2, RJ71C24-R4
C24 module for QCPU	QJ71C24N, QJ71C24N-R2, QJ71C24N-R4
C24 module for LCPU	LJ71C24, LJ71C24-R2
Ethernet module	RJ71E71, QJ71E71-100, LJ71E71-100
CC-Link IE Controller Network module	RJ71GP21(S)-SX, QJ71GP21-SX, QJ71GP21S-SX
CC-Link IE TSN module	RJ71GN11-T2 (Used as an Ethernet port)
FX5 expansion board	FX5-232-BD, FX5-485-BD (Only FX5U and FX5UJ can be installed)
FX5 expansion adapter	FX5-232ADP, FX5-485ADP
FX3 expansion board	FX3G-232-BD, FX3U-232-BD, FX3G-422-BD, FX3U-422-BD
FX3 special adapter	FX3U-232-ADP-MB, FX3U-485ADP-MB, FX3U-ENET-ADP
FX3 Ethernet interface block	FX3U-ENET-L

Accessible Registers

The accessible registers of this product is shown below. The I/O address of MELSEC is specified by "register name" + "number". For details on the register, refer to the manual for each CPU.

*1 In the MELSEC and its manual, I/O address and register is called “device”.

*2 Digit specification for BIT type register are not available.

List of Registers (RCPU)

Classification	Register Name	Register Type	Notation	Support Availability	Remarks
RnCPU, RnPCPU, RnENCPU	B	BIT	Hexadecimal	Available
	BL	-	Decimal	Unavailable
	CC	BIT	Decimal	Unavailable	Coil
	CN	WORD	Decimal	Unavailable	Current value
	CS	BIT	Decimal	Unavailable	Contact
	D	WORD	Decimal	Available
	D	BIT	Decimal	Available	Bit specification
	F	BIT	Decimal	Available
	FD	WORD	Decimal	Unavailable
	FX	BIT	Hexadecimal	Unavailable
	FY	BIT	Hexadecimal	Unavailable
	GV:	WORD	Hexadecimal	Available	Label memory (Global label) *2
	GV:	BIT	Hexadecimal	Available	Label memory (Global label) *2 Bit specification
	I	-	Decimal	Unavailable	Non-monitorable device
	J	-	Decimal	Unavailable	Non-monitorable device
	J*\X	-	-	Unavailable
	J*\Y	-	-	Unavailable
	J*\B	-	-	Unavailable
	J*\SB	-	-	Unavailable
	J*\W	-	-	Unavailable
	J*\SW	-	-	Unavailable
	U*\G	-	-	Unavailable
	U3En\G	WORD	Decimal	Unavailable
	U3En\HG	WORD	Decimal	Unavailable	Non-monitorable device
	L	BIT	Decimal	Available
	LCC	BIT	Decimal	Unavailable	Coil
	LCN	DWORD	Decimal	Unavailable	Current value
	LCS	BIT	Decimal	Unavailable	Contact
	LSTC	BIT	Decimal	Unavailable	Coil
	LSTN	DWORD	Decimal	Unavailable	Current value
	LSTS	BIT	Decimal	Unavailable	Contact
	LTC	BIT	Decimal	Unavailable	Coil
	LTN	DWORD	Decimal	Unavailable	Current value
	LTS	BIT	Decimal	Unavailable	Contact
	LZ	DWORD	Decimal	Unavailable	Long index register
	M	BIT	Decimal	Available
	N	-	Decimal	Unavailable	Non-monitorable device
	P	-	Decimal	Unavailable	Non-monitorable device
	R	WORD	Decimal	Available
	R	BIT	Decimal	Available	Bit specification
	RD	WORD	Decimal	Unavailable	Refresh data register
	RD	BIT	Decimal	Unavailable	Refresh data register
	S	BIT	Decimal	Unavailable	Non-monitorable device
	SB	BIT	Hexadecimal	Available
	SD	WORD	Decimal	Available
	SD	BIT	Decimal	Available	Bit specification
	SM	BIT	Decimal	Available
	STC	BIT	Decimal	Unavailable	Coil
	STN	WORD	Decimal	Unavailable	Current value
	STS	BIT	Decimal	Unavailable	Contact
	SW	WORD	Hexadecimal	Available
	SW	BIT	Hexadecimal	Available	Bit specification
	TC	BIT	Decimal	Unavailable	Coil
	TN	WORD	Decimal	Unavailable	Current value
	TS	BIT	Decimal	Unavailable	Contact
	TR	-	Decimal	Unavailable	Non-monitorable device
	U	-	Hexadecimal	Unavailable	Non-monitorable device
	V	BIT	Decimal	Unavailable
	W	WORD	Hexadecimal	Available
	W	BIT	Hexadecimal	Available	Bit specification
	X	BIT	Hexadecimal	Available
	Y	BIT	Hexadecimal	Available
	Z	WORD	Decimal	Unavailable	Index register
	ZR	WORD	Decimal	Available
ZR	BIT	Decimal	Available	Bit specification
RnSFCPU, RnPSFCPU	B	BIT	Hexadecimal	Available
	BL	-	Hexadecimal	Unavailable
	CC	BIT	Decimal	Unavailable	Coil
	CN	WORD	Decimal	Unavailable	Current Value
	CS	BIT	Decimal	Unavailable	Contact
	D	WORD	Decimal	Available
	D	BIT	Decimal	Available	Bit specification
	F	BIT	Decimal	Available
	FD	WORD	-	Unavailable
	FX	-	-	Unavailable
	FY	-	-	Unavailable
	GV:	WORD	Hexadecimal	Available	Label memory (Global label) *2
	GV:	BIT	Hexadecimal	Available	Label memory (Global label) *2 Bit specification
	I	-	Decimal	Unavailable	Non-monitorable device
	J	-	Decimal	Unavailable	Non-monitorable device
	J*\X	-	-	Unavailable
	J*\Y	-	-	Unavailable
	J*\B	-	-	Unavailable
	J*\SB	-	-	Unavailable
	J*\W	-	-	Unavailable
	J*\SW	-	-	Unavailable
	U*\G	-	-	Unavailable
	U3E*\G	WORD	Decimal	Unavailable
	U3E*\HG	WORD	Decimal	Unavailable	Non-monitorable device
	L	BIT	Decimal	Available
	LCC	BIT	Decimal	Unavailable	Coil
	LCN	DWORD	Decimal	Unavailable	Current value
	LCS	BIT	Decimal	Unavailable	Contact
	LSTC	BIT	Decimal	Unavailable	Coil
	LSTN	DWORD	Decimal	Unavailable	Current value
	LSTS	BIT	Decimal	Unavailable	Contact
	LTC	BIT	Decimal	Unavailable	Coil
	LTN	DWORD	Decimal	Unavailable	Current value
	LTS	BIT	Decimal	Unavailable	Contact
	LZ	DWORD	Decimal	Unavailable	Long index register
	M	BIT	Decimal	Available
	N	-	Decimal	Unavailable	Non-monitorable device
	P	-	Decimal	Unavailable	Non-monitorable device
	R	WORD	Decimal	Available
	R	BIT	Decimal	Available	Bit specification
	RD	WORD	Decimal	Unavailable	Refresh data register
	RD	BIT	Decimal	Unavailable	Refresh data register
	S	BIT	Decimal	Unavailable	Non-monitorable device
	SA\B	BIT	Hexadecimal	Available*1
	SA\CC	BIT	Decimal	Unavailable*1	Coil
	SA\CN	WORD	Decimal	Unavailable*1	Current value
	SA\CS	BIT	Decimal	Unavailable*1	Contact
	SA\D	WORD	Decimal	Available*1
	SA\D	BIT	Decimal	Available*1	Bit specification
	SA\M	BIT	Decimal	Available*1
	SA\SD	WORD	Decimal	Available*1
	SA\SD	BIT	Decimal	Available*1	Bit specification
	SA\SM	BIT	Decimal	Available*1
	SA\STC	BIT	Decimal	Unavailable*1	Coil
	SA\STN	WORD	Decimal	Unavailable*1	Current value
	SA\STS	BIT	Decimal	Unavailable*1	Contact
	SA\TC	BIT	Decimal	Unavailable*1	Coil
	SA\TN	WORD	Decimal	Unavailable*1	Current value
	SA\TS	BIT	Decimal	Unavailable*1	Contact
	SA\W	WORD	Hexadecimal	Available*1
	SA\W	BIT	Hexadecimal	Available*1	Bit specification
	SA\X	BIT	Hexadecimal	Available*1
	SA\Y	BIT	Hexadecimal	Available*1
	SB	BIT	Hexadecimal	Available
SD	WORD	Decimal	Available
SD	BIT	Decimal	Available	Bit specification
SM	BIT	Decimal	Available
STC	BIT	Decimal	Unavailable	Coil
STN	WORD	Decimal	Unavailable	Current value
STS	BIT	Decimal	Unavailable	Contact
SW	WORD	Hexadecimal	Available
SW	BIT	Hexadecimal	Available	Bit specification
TC	BIT	Decimal	Unavailable	Coil
TN	WORD	Decimal	Unavailable	Current value
TS	BIT	Decimal	Unavailable	Contact
TR	-	Decimal	Unavailable	Non-monitorable device
U	-	Hexadecimal	Unavailable	Non-monitorable device
V	BIT	Decimal	Unavailable	Edge relay
W	WORD	Hexadecimal	Available
W	BIT	Hexadecimal	Available	Bit specification
X	BIT	Hexadecimal	Available
Y	BIT	Hexadecimal	Available
Z	WORD	Decimal	Unavailable	Index register
ZR	WORD	Decimal	Available
ZR	BIT	Decimal	Available	Bit specification

*1 Safety registers can only be set to "read".

*2 Global label (GV*) will be reflected in the configuration screen by file import, but do not change the address.

List of Registers (FX5CPU)

Classification	Register Name	Register Type	Notation	Support Availability	Remarks
FX5CPU	B	BIT	Hexadecimal	Available
	BL	-	Decimal	Unavailable
	CC	BIT	Decimal	Unavailable	Coil
	CN	WORD	Decimal	Unavailable	Current value
	CS	BIT	Decimal	Unavailable	Contact
	D	WORD	Decimal	Available
	D	BIT	Decimal	Available	Bit specification
	ER	WORD	Decimal	Available
	F	BIT	Decimal	Available
	GV:	WORD	Hexadecimal	Available	Label memory (Global label) *1
	GV:	BIT	Hexadecimal	Available	Label memory (Global label) *1 Bit specification
	I	-	Decimal	Unavailable	Non-monitorable device
	L	BIT	Decimal	Available
	LCC	BIT	Decimal	Unavailable	Coil
	LCN	WORD	Decimal	Unavailable	Current value
	LCS	BIT	Decimal	Unavailable	Contact
	LZ	DWORD	Decimal	Unavailable	Long index register
	M	BIT	Decimal	Available
	N	-	Decimal	Unavailable	Non-monitorable device
	P	-	Decimal	Unavailable	Non-monitorable device
	R	WORD	Decimal	Available
	R	BIT	Decimal	Available	Bit specification
	S	-	-	Unavailable
	SB	BIT	Hexadecimal	Available
	SD	WORD	Decimal	Available
	SD	BIT	Decimal	Available	Bit specification
	SM	BIT	Decimal	Available
	STC	BIT	Decimal	Unavailable	Coil
	STN	WORD	Decimal	Unavailable	Current value
	STS	BIT	Decimal	Unavailable	Contact
	SW	WORD	Hexadecimal	Available
	SW	BIT	Hexadecimal	Available	Bit specification
	TC	BIT	Decimal	Unavailable	Coil
	TN	WORD	Decimal	Unavailable	Current value
	TS	BIT	Decimal	Unavailable	Contact
	TR	-	Decimal	Unavailable	Non-monitorable device
	U*\G	-	-	Unavailable
	W	WORD	Hexadecimal	Available
	W	BIT	Hexadecimal	Available	Bit specification
	X	BIT	Octal	Available
	Y	BIT	Octal	Available
	Z	WORD	Decimal	Unavailable	Index register

*1 Global label (GV*) will be reflected in the configuration screen by file import, but do not change the address.

List of Registers (QCPU)

Classification	Register Name	Register Type	Notation	Support Availability	Remarks
QnPRHCPU QnU(J)CPU QnUD(E)HCPU QnUDPVCPU QnUDVCPU	B	BIT	Hexadecimal	Available
	BL	BIT	Decimal	Unavailable	Non-monitorable device
	CC	BIT	Decimal	Unavailable	Coil
	CN	WORD	Decimal	Unavailable	Current value
	CS	BIT	Decimal	Unavailable	Contact
	D	WORD	Decimal	Available
	D	BIT	Decimal	Available	Bit specification
	F	BIT	Decimal	Available
	FD	WORD	Decimal	Unavailable
	FX	BIT	Hexadecimal	Unavailable
	FY	BIT	Hexadecimal	Unavailable
	I	-	Decimal	Unavailable	Non-monitorable device
	J	-	Decimal	Unavailable	Non-monitorable device
	Jn\B	-	-	Unavailable
	Jn\SB	-	-	Unavailable
	Jn\SW	-	-	Unavailable
	Jn\W	-	-	Unavailable
	Jn\X	-	-	Unavailable
	Jn\Y	-	-	Unavailable
	L	BIT	Decimal	Available
	M	BIT	Decimal	Available
	N	-	Decimal	Unavailable	Non-monitorable device
	P	-	Decimal	Unavailable	Non-monitorable device
	R	WORD	Decimal	Available
	R	BIT	Decimal	Available	Bit specification
	S	BIT	Decimal	Unavailable	Non-monitorable device
	SB	BIT	Hexadecimal	Available
	SD	WORD	Decimal	Available
	SD	BIT	Decimal	Available	Bit specification
	SM	BIT	Decimal	Available
	STC	BIT	Decimal	Unavailable	Coil
	STN	WORD	Decimal	Unavailable	Current value
	STS	BIT	Decimal	Unavailable	Contact
	SW	WORD	Hexadecimal	Available
	SW	BIT	Hexadecimal	Available	Bit specification
	TC	BIT	Decimal	Unavailable	Coil
	TN	WORD	Decimal	Unavailable	Current value
	TS	BIT	Decimal	Unavailable	Contact
	U	-	Hexadecimal	Unavailable	Non-monitorable device
	Un\G	WORD	Decimal	Unavailable
	U3En\G	WORD	Decimal	Unavailable
	V	BIT	Decimal	Unavailable
	VD	-	Decimal	Unavailable	Non-monitorable device
	W	WORD	Hexadecimal	Available
	W	BIT	Hexadecimal	Available	Bit specification
	X	BIT	Hexadecimal	Available
	Y	BIT	Hexadecimal	Available
	Z	WORD	Decimal	Unavailable
	ZR	WORD	Decimal	Available
	ZR	BIT	Decimal	Available	Bit specification

List of Registers (QSCPU)

Classification	Register Name	Register Type	Notation	Support Availability	Remarks
QSCPU	B	BIT	Hexadecimal	Available*1
	CC	BIT	Decimal	Unavailable	Coil
	CN	WORD	Decimal	Unavailable	Current value
	CS	BIT	Decimal	Unavailable	Contact
	D	WORD	Decimal	Available*1
	D	BIT	Decimal	Available*1	Bit specification
	F	BIT	Decimal	Available*1
	M	BIT	Decimal	Available*1
	N	-	Decimal	Unavailable	Non-monitorable device
	SB	BIT	Hexadecimal	Available*1
	SD	WORD	Decimal	Available*1
	SD	BIT	Decimal	Available*1	Bit specification
	SM	BIT	Decimal	Available*1
	STC	BIT	Decimal	Unavailable	Coil
	STN	WORD	Decimal	Unavailable	Current value
	STS	BIT	Decimal	Unavailable	Contact
	SW	WORD	Hexadecimal	Available*1
	SW	BIT	Hexadecimal	Available*1	Bit specification
	TC	BIT	Decimal	Unavailable	Coil
	TN	WORD	Decimal	Unavailable	Current value
	TS	BIT	Decimal	Unavailable	Contact
	V	BIT	Decimal	Unavailable
	W	WORD	Hexadecimal	Available*1
	W	BIT	Hexadecimal	Available*1	Bit specification
	X	BIT	Hexadecimal	Available*1
	Y	BIT	Hexadecimal	Available*1

*1 Only "read" setting is available

List of Registers (LCPU)

Classification	Register Name	Register Type	Notation	Support Availability	Remarks
LnCPU	B	BIT	Hexadecimal	Available
	BL	BIT	Decimal	Unavailable	Non-monitorable device
	CC	BIT	Decimal	Unavailable	Coil
	CN	WORD	Decimal	Unavailable	Current value
	CS	BIT	Decimal	Unavailable	Contact
	D	WORD	Decimal	Available
	D	BIT	Decimal	Available	Bit specification
	F	BIT	Decimal	Available
	FD	WORD	Decimal	Unavailable
	FX	BIT	Hexadecimal	Unavailable
	FY	BIT	Hexadecimal	Unavailable
	I	-	Decimal	Unavailable	Non-monitorable device
	Jn\SB	-	-	Unavailable
	Jn\SW	-	-	Unavailable
	Jn\W	-	-	Unavailable
	Jn\X	-	-	Unavailable
	Jn\Y	-	-	Unavailable
	L	BIT	Decimal	Available
	M	BIT	Decimal	Available
	N	-	Decimal	Unavailable	Non-monitorable device
	P	-	Decimal	Unavailable	Non-monitorable device
	S	BIT	Decimal	Unavailable	Non-monitorable device
	SB	BIT	Hexadecimal	Available
	SD	WORD	Decimal	Available
	SD	BIT	Decimal	Available	Bit specification
	SM	BIT	Decimal	Available
	STC	BIT	Decimal	Unavailable	Coil
	STN	WORD	Decimal	Unavailable	Current value
	STS	BIT	Decimal	Unavailable	Contact
	SW	WORD	Hexadecimal	Available
	SW	BIT	Hexadecimal	Available	Bit specification
	TC	BIT	Decimal	Unavailable	Coil
	TN	WORD	Decimal	Unavailable	Current value
	TS	BIT	Decimal	Unavailable	Contact
	U	WORD	Decimal	Unavailable	Non-monitorable device
	Un\G	BIT	Decimal	Unavailable
	V	BIT	Decimal	Unavailable
	VD	-	Decimal	Unavailable	Non-monitorable device
	W	WORD	Hexadecimal	Available
	W	BIT	Hexadecimal	Available	Bit specification
	X	BIT	Hexadecimal	Available
	Y	BIT	Hexadecimal	Available
	Z	WORD	Decimal	Unavailable
	ZR	WORD	Decimal	Available
	ZR	BIT	Decimal	Available	Bit specification

List of Registers (FXCPU)

Classification	Register Name	Register Type	Notation	Support Availability	Remarks
FX3CPU	CC	BIT	Decimal	Unavailable	Coil
	CN	WORD	Decimal	Unavailable	Current value
	CN	DWORD	Decimal	Unavailable	Current value
	CS	BIT	Decimal	Unavailable	Contact
	D	WORD	Decimal	Available
	D	BIT	Decimal	Available	Bit specification
	ER	WORD	Decimal	Unavailable
	I	-	Decimal	Unavailable	Non-monitorable device
	M	BIT	Decimal	Available
	N	-	Decimal	Unavailable	Non-monitorable device
	P	-	Decimal	Unavailable	Non-monitorable device
	R	WORD	Decimal	Available	FX3S is not supported and cannot be used.
	S	BIT	Decimal	Unavailable
	TC	BIT	Decimal	Unavailable	Coil
	TN	WORD	Decimal	Unavailable	Current value
	TS	BIT	Decimal	Unavailable	Contact
	V	BIT	Decimal	Unavailable
	X	BIT	Octal	Available
	Y	BIT	Octal	Available
	Z	WORD	Decimal	Unavailable

List of Registers (LHCPU)

Classification	Register Name	Register Type	Notation	Support Availability	Remarks
LHCPU	B	BIT	Hexadecimal	Available
	BL	-	Decimal	Unavailable
	CC	BIT	Decimal	Unavailable	Coil
	CN	WORD	Decimal	Unavailable	Current value
	CS	BIT	Decimal	Unavailable	Contact
	D	WORD	Decimal	Available
	D	BIT	Decimal	Available	Bit specification
	F	BIT	Decimal	Available
	FD	WORD	Decimal	Unavailable
	FX	BIT	Hexadecimal	Unavailable
	FY	BIT	Hexadecimal	Unavailable
	GV:	WORD	Hexadecimal	Available	Label memory (Global label) *2
	GV:	BIT	Hexadecimal	Available	Label memory (Global label) *2 Bit specification
	U*\G	-	-	Unavailable
	U3E0\G	-	-	Unavailable
	I	-	Decimal	Unavailable	Non-monitorable device
	L	BIT	Decimal	Available
	LCC	BIT	Decimal	Unavailable	Coil
	LCN	DWORD	Decimal	Unavailable	Current value
	LCS	BIT	Decimal	Unavailable	Contact
	LSTC	BIT	Decimal	Unavailable	Coil
	LSTN	DWORD	Decimal	Unavailable	Current value
	LSTS	BIT	Decimal	Unavailable	Contact
	LTC	BIT	Decimal	Unavailable	Coil
	LTN	DWORD	Decimal	Unavailable	Current value
	LTS	BIT	Decimal	Unavailable	Contact
	LZ	DWORD	Decimal	Unavailable	Long index register
	M	BIT	Decimal	Available
	N	-	Decimal	Unavailable	Non-monitorable device
	P	-	Decimal	Unavailable	Non-monitorable device
	R	WORD	Decimal	Available
	R	BIT	Decimal	Available	Bit specification
	RD	WORD	Decimal	Unavailable	Refresh data integer
	RD	BIT	Decimal	Unavailable	Refresh data integer
	S	BIT	Decimal	Unavailable	Non-monitorable device
	SB	BIT	Hexadecimal	Available
	SD	WORD	Decimal	Available
	SD	BIT	Decimal	Available	Bit specification
	SM	BIT	Decimal	Available
	STC	BIT	Decimal	Unavailable	Coil
	STN	WORD	Decimal	Unavailable	Current value
	STS	BIT	Decimal	Unavailable	Contact
	SW	WORD	Hexadecimal	Available
	SW	BIT	Hexadecimal	Available	Bit specification
	TC	BIT	Decimal	Unavailable	Coil
	TN	WORD	Decimal	Unavailable	Current value
	TR	-	Decimal	Unavailable	Non-monitorable device
	TS	BIT	Decimal	Unavailable	Contact
	U	-	Hexadecimal	Unavailable	Non-monitorable device
	V	BIT	Decimal	Unavailable	Edge relay
	W	WORD	Hexadecimal	Available
	W	BIT	Hexadecimal	Available	Bit specification
	X	BIT	Hexadecimal	Available
	Y	BIT	Hexadecimal	Available
	Z	WORD	Decimal	Unavailable	Index register
	ZR	WORD	Decimal	Available
	ZR	BIT	Decimal	Available	Bit specification

*1 Global label (GV*) will be reflected in the configuration screen by file import, but do not change the address.

GOT System Configuration

The system configuration when using GOT is shown for each communication protocol. For details on the cables used, refer to the manuals for each Mitsubishi Electric product.

System Configuration

Mitsubishi Electric FA Connectors can communicate with Mitsubishi Electric device or other company’s device via GOT.

The devices which Mitsubishi Electric FA Connectors can communicate with are according to the specification of GOT’s “Gateway Server” function. Refer to the manuals of GOT2000 and GT SoftGOT2000.

*1, *2, *3 Network Interface board is required for GT SoftGOT2000 . Refer to the manuals of GT SoftGOT2000.

*4, *5, *6 , *7 , *8 , *9 Communication Unit is required for GOT2000 . Refer to the manuals of GOT2000.

System Configuration Details

Communication Method with a Personal Computer	Connection Method	Connected Device
Ethernet Communication *1	Ethernet board – Ethernet	Ethernet built-in GOT2000 (GT27 model, GT25 model, GT25 wide model) *2
		Ethernet Unit (GT27 model, GT25 model) *2
		GT SoftGOT2000 2 3

*1 Ethernet board on PC .

*2 Up to 5 Mitsubishi Electric FA Connectors can communicate with one GOT2000 or GT SoftGOT2000 at the same time.

*3 GT SoftGOT2000 can be installed to same PC with GENESIS64 or Basic SCADA.

Components

Available GOT

The GOT2000 that can be used with this product are shown below. Devices not listed in the table cannot be used.

Available GOT

Type

List of Model Names

GT27 models*1

GT2715-XTBA, GT2715-XTBD,

GT2712-STBA, GT2712-STWA,

GT2712-STBD, GT2712-STWD,

GT2710-STBA, GT2710-STBD,

GT2708-STBA, GT2708-STBD,

GT2710-VTBA, GT2710-VTWA,

GT2710-VTBD, GT2710-VTWD,

GT2708-VTBA, GT2708-VTBD,

GT2705-VTBD

GT25

models*1*2

GT2512-STBA, GT2512-STBD,

GT2512F-STNA, GT2512F-STND,

GT2510-VTBA, GT2510-VTWA,

GT2510-VTBD, GT2510-VTWD,

GT2510F-VTNA, GT2510F-VTND,

GT2508-VTBA, GT2508-VTWA,

GT2508-VTBD, GT2508-VTWD,

GT2508F-VTNA, GT2508F-VTND,

GT2505-VTBD,

GT2506HS-V, GT2506HS-VTBD,

GT2505HS-V, GT2505HS-VTBD

GT25 wide

models*1*2

GT2512-WXTBD, GT2512-WXTSD,

GT2510-WXTBD, GT2510-WXTSD,

GT2507-WTBD, GT2507-WTSD,

GT2507T-WTSD,

GT SoftGOT2000

*1*2

GT SoftGOT2000

*1 It’s required to use the “Gateway Server” function in GOT2000 and GT SoftGOT2000. Refer to the manuals of GOT2000 and GT SoftGOT2000.

*2 About the firmware version of GOT2000 and software version of GT SoftGOT2000 which support “Gateway Server” function, refer to the manuals of GOT2000 and GT SoftGOT2000.

Available GOT Communication Unit

The GOT2000’s communication unit and module that can be used with this product are shown below. Devices not listed in the table cannot be used.

Available GOT Communication Unit

Type	List of Model Names
Ethernet Unit	GT25-J71E71-100

GOT Accessible Registers

The accessible range of this product is shown below. The I/O address of GOT is specified by “register name” + “number”. For details on the register, refer to the manuals of GOT2000 and GT SoftGOT2000.

*1 In the GOT2000 and GT SoftGOT2000 and their manual, I/O address and register is called “Device”.

List of Registers （GOT2000 and GT SoftGOT2000)

Classification

Register Name

Register Type

Notation

Support Availability

Remarks

GOT2000,

GTSoftGOT2000

WORD

Decimal

Available

See Also:

Network Discovery

Add GOT
