Visualizer

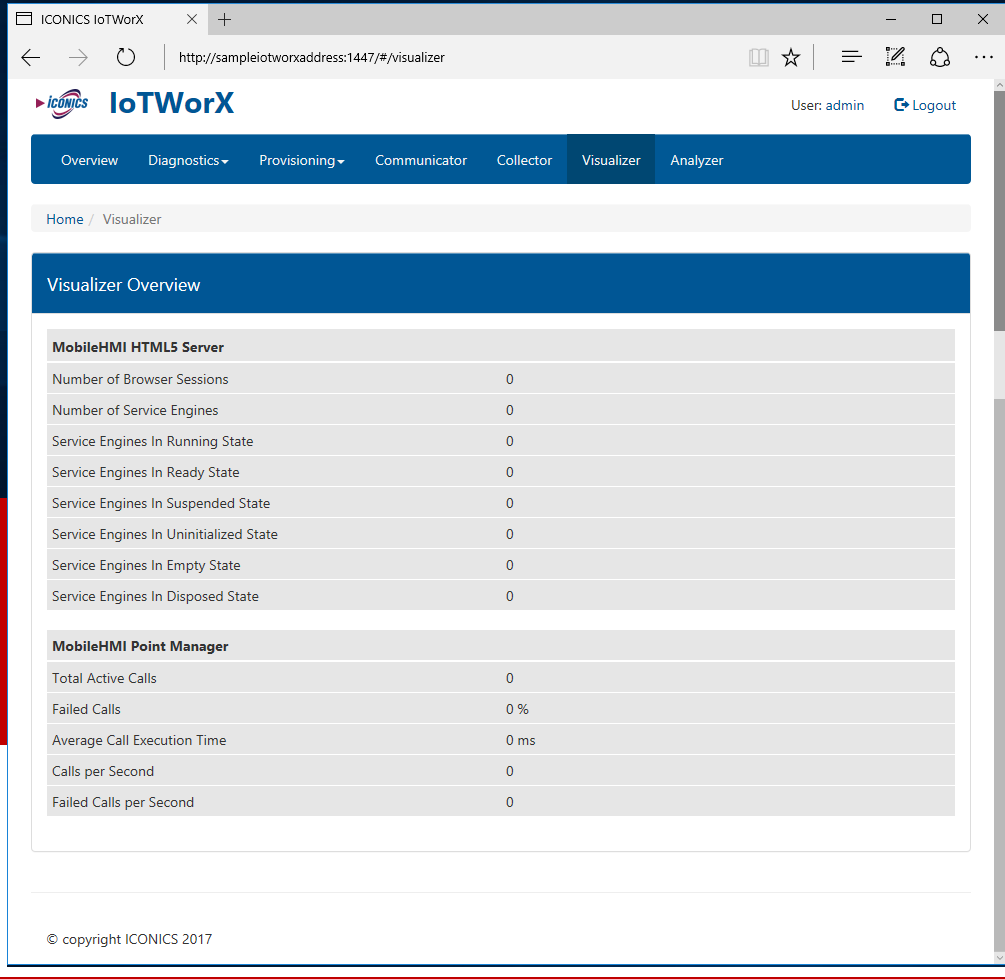

The Visualizer tab, shown below, directs users to the IoTWorX Visualizer, which will open in a new tab or window, utilizing ICONICS KPIWorX technology.



NOTE: IoTWorX Visualizer is distributed as a separate IoT Edge Module. If the module is not part of the IoTWorX Modules deployed on your IoT device, then IoTWorX Visualizer will not be available.



ICONICS IoTWorX - Visualizer Tab

IoTWorX Visualizer Settings

Writing to Points

A new widget, the KPI Process Point, allows the IoT Visualizer users to write to points. Writing to points can be secured with the new security features for IoTWorX. See Support for ICONICS Security and Support for Security.

Support for Security

The Visualizer can now be secured. Security can be configured for an edge device to require users to log into the Visualizer to access certain functionality. See Support for ICONICS Security for more details about security in IoTWorX edge devices.

Viewing GenEvents

A new widget, the alarm viewer, allows Visualizer users to see GenEvents. See Support for GenEvents for more details about GenEvents in IoTWorX edge devices.

KPIWorX

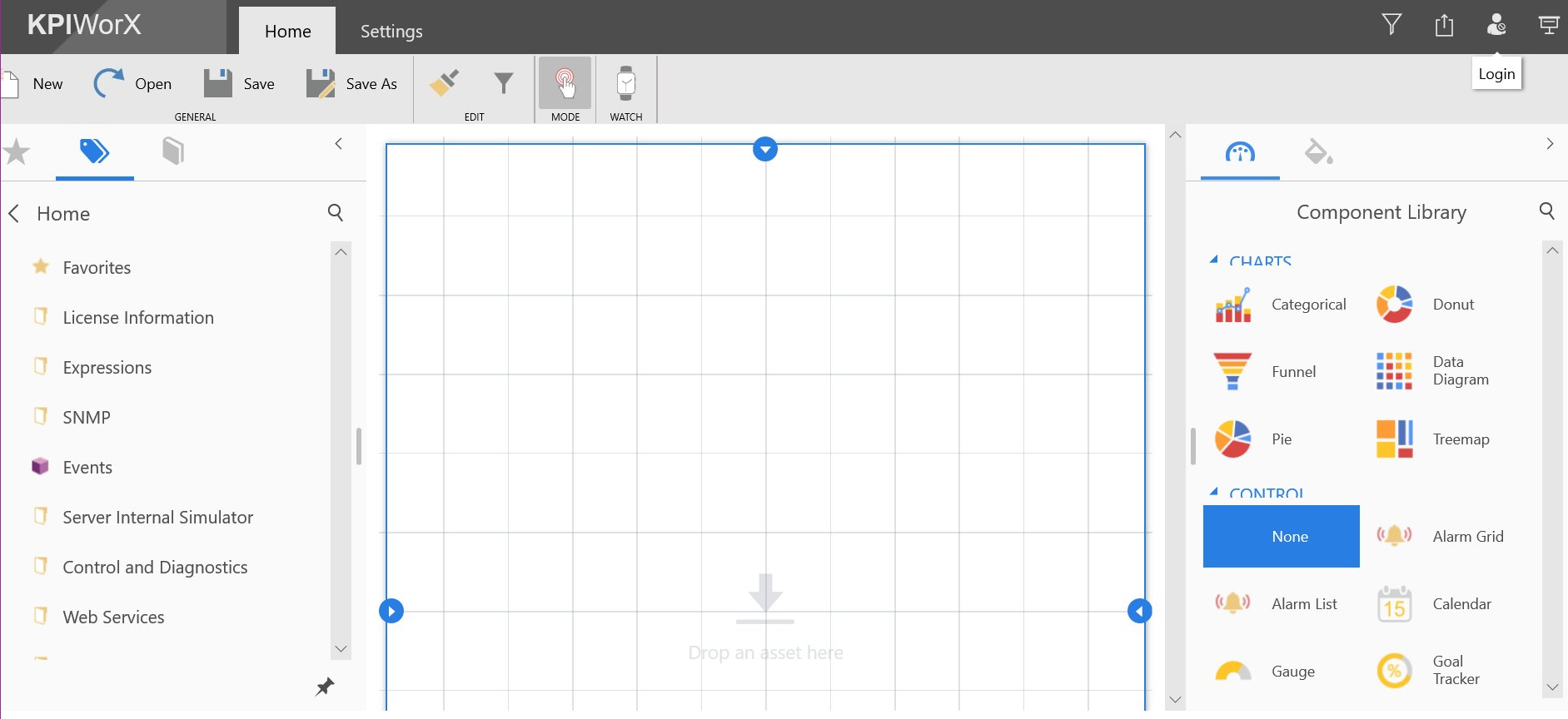

Accessing the IoTWorX Visualizer utilizes ICONICS' KPIWorX tool, shown below.



KPIWorX Used for IoTWorX Visualization



IoT Analyzer Fault Incidents Available as Alarms

IoT Analyzer fault incidents are available as alarms.



To see to fault incident alarms in the IoT Visualizer, add an alarm widget and configure it to subscribe to AnalytiX > IoT Analyzer > your analyzer group name. The resulting alarm point should look like analyze:GroupName.
