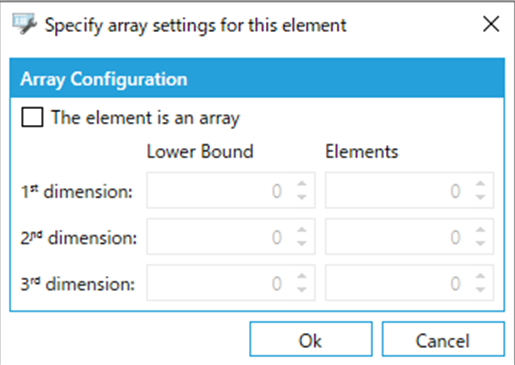

Array Configuration Window
Array Configuration
· The element is an array - Click the checkbox to enable an array.
· Lower Bound - Set the initial index number for the array dimensions (default: 0). The range of the acceptable value is -2,147,483,648 ～2,147,483,647.
· Elements - Set the number of elements for the array dimensions. The maximum number of elements that can be set is 50,000 in total of 3 dimensions.
· 1st dimension: - Configure the shape of the 1st dimension of an array.
· 2nd dimension: - Configure the shape of the 2nd dimension of an array.
· 3rd dimension: - Configure the shape of the 3rd dimension of an array.
[Note: The configuration of higher dimensions of an array is available only if the lower dimension of it is set properly].
