Expression Editor

The Expression Editor, shown independently below, is available to assist you in creating local and global expressions for your GENESIS64 applications.



When opened from the Unified Data Manager, it creates an expression that is added to a global expression. However, the Expression Editor also appears on the Expression tab of the Data Browser. In the Data Browser, the expression you create is a local one, suited solely for a local purpose. The expression is not reusable in and of itself, although the editor does provide a drop-down list that lets you see the last 50 expressions that were created it the editor.



Note. For detailed information about the differences between local and global expressions, refer to Expressions in the Data Browser.



Note. If you are creating calculated tags in Hyper Historian, also refer to the functions described in the Performance Calculation Functions topic in Hyper Historian.



Expression Editor ('Configure the expression' window)



Each button in the Expression Editor displays a list of available functions. In cases such as the Variables button, the OPC tabs of the Data Browser are opened to allow you to make an assignment based on tag values. With this editor, you can build an expression, then use the Check Syntax button at the bottom left to make sure you've built it correctly. The important thing to remember about the Expression Editor is that although it checks your expression syntax, it does not check whether the expression is correctly applied.



The drop-down list at the top of the Edit Expression dialog box keeps track of the last 50 expressions you have entered. The expression entered most recently is the first one in the drop-down list.



Let's take a look at ways to write local expressions.

Writing Expressions

An expression is a string that defines and evaluates a data connection between a client and an OPC server. During runtime mode, OPC servers resolve the data value for the expression. To indicate that a data connection is an expression, precede the string with the "x=" token, as shown below:



x={{ICONICS.Simulator.1\SimulatePLC.PumpSpeed}}



The OPC tag is surrounded by double braces {{ and }}. Parameters are surrounded by double carets << and >>. For example, the expression for calculating a conversion from Celsius to Fahrenheit reads:



x= (<<Thermometer>>*1.8)+32



Where the <<Thermometer>> parameter will be substituted when the expression is in use.



You can either type your expressions directly into the text box of the Edit Expression dialog box, or you can use the symbols and functions provided that help you use the proper string syntax when writing expressions. There are certain options you can use when writing expressions; they include String Expressions, String Comparison, Data type Conversion and Point Extension Syntax. The Expression Editor also provides buttons that list available functions to assist you in writing expressions; click on one of the hyperlinks to go do a more detailed discussion:

Strings in Expressions

Strings can be used in expressions. Constant strings are delimited with double quotation marks. For example:

“Hello World”



Constant strings can also be enclosed between $” and “$ characters. For example:

$”Hello World”$



Back to top

String Comparison

When comparing strings or numeric data coming from the server as strings, the comparison is based on the orders of the characters. For example, the expression...

x="world" > "hello"

...evaluates as true, because the character “w” comes after the character “h” in alphabetical order.



Sometimes the string comparison may be misleading. For example...

x="20" > "100"

...evaluates as true, because the character "2" comes after the character "1" in the character table. Of course, if there were an expectation of a numeric comparison, 20 < 100 and the above expressions might seem to be evaluated incorrectly, but they are not.



Back to top

Data Type Conversion

Expressions allow calculations to be performed on incoming data. An OPC server can provide data in one or more data types, such as "float," "long," "integer," "string," etc. Some OPC servers provide numeric data as a string. For example, the numeric value 20 may be provided as the string “20” (character "2" followed by character "0"). This may be lead an incorrect expression evaluation (see the String Comparison section above).



There is a workaround, though. If you add a numerical zero to each of the tags, the logic operators will work properly. For example:

x=({{JC.N1OPC.1.0\HDQTRS\sys2\ad-3.Present Value}}+0) > ({{JC.N1OPC.1.0\HDQTRS\sys2\ad-4.Present Value}}+0)



Some of the functions provided in the Expression Editor use parameters of type numeric. When possible, the Expression Editor automatically converts the string into a number. For example, the string “20” can automatically be converted to the number 20.



But if the string contains alphabetic characters or symbols, then the automatic conversion is impossible. For example, the string “20hello” cannot be converted into a number.



Even if the string contains only numeric characters and valid symbols, there may still be cases in which an automatic conversion is not possible. For example, the string “123.45.23” cannot be converted into a number because it contains two decimal separators.



Sometimes strings and numbers are mixed in expressions. In this case, the Expression Editor attempts to convert the string into a number. For example:

Str + Number, where Str is a string convertible to a Number, results in a Number.

If the string is not convertible into a number, then the result will have a bad quality.



The following is an example of a valid expression:

x=5+”6”



Back to top

Point Extension Syntax

The Point Extension Syntax (PES) allows for retrieving additional information related to OPC tags, such as quality and timestamp.



To use the PES:

  1. Prefix your tag name with “tag:”

  2. Postfix your tag name with “#” followed by a PES token.

Valid PES tokens are:

The following are example expressions using a valid PES request:

Note. Sometimes it may be necessary to enforce the "request data type" to a specific type, such as "string," in order to display the extended syntax information in a process point.



Back to top

Arithmetic Expressions

Symbols on the Arithmetic menu are shown in the figure below.



Arithmetic Symbols Menu



The symbols '+', '-', '*', '/' and '%' use the following format:

parameter symbol parameter



Where parameter is a local variable, an OPC tag, a constant, or another expression. The expression results in a number of any type (float, long, etc.). Some examples are shown in the table below.



Arithmetic Expression Examples

Symbol

Description

Example

Result

+

Addition

~~var1~~ + ~~var2~~

8 + 3 = 11

-

Subtraction

~~var1~~ - ~~var2~~

8 - 3 = 5

*

Multiplication

~~var1~~ * ~~var2~~

8 * 3 = 24

/

Division

~~var1~~ / ~~var2~~

8/3 = 2.6667

%

Modulus - Calculates the remainder after division

~~var1~~ % ~~var2~~

8 % 3 = 2

(

Open Parenthesis - gives precedence to parts of the calcualtion





)

Close Parenthesis - gives precedence to parts of the calculation

~~var1~~ /(~~var2~~ + ~~var3~~)

8 / (3 + 2) = 1.6

sin(angleInRadians)

Sine





cos(angleInRadians)

Cosine





tan(angleinRadians)

Tangent





asin(number)

Arcsine





acos(number)

Arccosine



atan(number)

Arctangent



sqrt(number)

Square Root



pow(base, exponent)

Raise to Power



log(number)

Logarithm



ln(number)

Natural Logarithm



exp(number)

Exponential



abs(number)

Absolute Value



ceil(number)

Integer Ceiling



floor(number)

Integer Floor



round(number)

Integer Round



round to(number, decimalPlaces)

Round to Decimal Places



min(number1, ..., numberN)

Minimum



max(number1, ..., numberN)

Maximum



sum(number1, ..., numberN)

Sum



avg(number1, ...numberN)

Average



isnan(number)

Is Not a Number



isinfinity(number)

Is Infinity



pi

Circumference/Diameter Constant



e

Natural Logarithmic Base Constant





Back to top

Relational Expression

Symbols on the Relational menu are shown in the figure below.



Relational Symbols Menu



The symbols '<', '>', '<=', '>=', '==' and '!=' use the following format:

parameter symbol parameter



Where parameter is local variable, an OPC tag, a constant, or another expression. The result of the expression results in a Boolean value (0 or 1). The following table shows some examples of relational expressions.



Relational Expression Examples

Symbol

Description

Example

Result

<

Less Than

~~var1~~ <+ ~~var2~~

8 < 3 = 0

>

Greater Than

~~var1~~ > ~~var2~~

8 > 3 = 1

<=

Less Than or Equal

~~var1~~ <= ~~var2~~

8 <= 3 = 0

>=

Greater than or Equal

~~var1~~ >=/ ~~var2~~

8 >= 3 = 1

==

Equal T

~~var1~~ == ~~var2~~

8 == 3 = 0

!=

Not Equal To

~~var1~~ != ~~var2~~

8 != 3 = 1



Back to top

Logical Expressions

Symbols on the Logical menu are shown in the figure below.

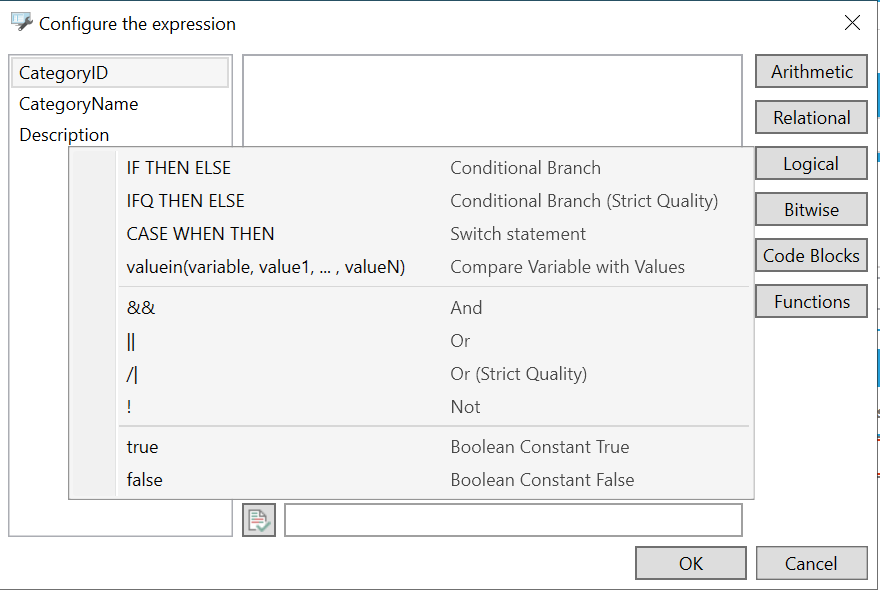

Logical Symbols Menu



The symbols '&&' and '||' use the following format:

parameter symbol parameter



And the symbol '!' uses the following format:

symbol parameter



where parameter is a local variable, an OPC tag, a constant, or another expression for the symbol && or || or !. The result of the expression is the Boolean value (0 or 1). Refer to the table below for some examples of logical expression.



Logical Expression Examples

Symbol

Description

Example

Result

IF THEN ELSE

Conditional Branch





IFQ THEN ELSE

Conditional Branch (Strict Quality)





CASE WHEN THEN

Switch Statement





&&

And

~~var1~~ && ~~var2~~

8 && 3 = 1

||

Or

~~var1~~ || ~~var2~~

8 || 3 = 1

/|

Or (Strict Quality)





!

Not

!~~var1~~

!8 = 0

true

Boolean Constant True





false

Boolean Constant False







Back to top

Bitwise Expressions

Symbols on the Bitwise menu are shown in the figure below.



Bitwise Menu



Note. Bitwise operations in the Expression Editor process only positive numbers from 0 to 4,294,967,295, or 00000000 to FFFFFFFF.



The symbols '&', '|', and '^' of the bitwise group use the following format:

parameter symbol parameter

where parameter is a local variable, an OPC tag, a constant, or another expression.



The symbol '~' of the logical group uses the following format:

~ parameter



The symbols ' shl' and ' shr' of the bitwise group use the following format:

symbol (number, shift by)

Where number must be a local variable, an OPC tag, a constant, or another expression; and shift by sets the number of bits to shift.



The symbol ' bittest' of the bitwise group uses the following format:

BitTest (number, bit position)



Where number is a local variable, an OPC tag, a constant, or another expression; and bit position sets is the position of the bit to test. A bit position of "0" indicates the "less significant" bit.



Note. The BitTest() function in the Expression Editor evaluates only positive numbers from 0 to 2,147,483,648 or in hex from 00000000 to 7FFFFFFF. Negative numbers between -2,147,483,647 and 0 will be converted to the corresponding positive numbers prior to testing. Numbers above the outside ranges will give you unexpected results.





Symbol

Description

Example

Result

&

And

~~var1~~ & ~~var2~~

8 & 3 = 0

|

Or

~~var1~~ | ~~var2~~

8 | 3 = 11

~

Not

~(~~var1~~)

!8 = -9

^

Xor

~~var1~~ ^ ~~var2~~

8 ^ 3 = 11

shl(number, shiftBy)

Shift Left

shl(~~var1~~,3)

8 << 3 = 64

shr(number, shiftBy)

Shift Right

shr(~~var1~~,3)

8 >> 3 = 1

bittest(number, bitIndex)

Bit Test

(5 , 0)

1

setbit(number, bitIndex, bitValue)

Set Bit





togglebit(number, bitIndex)

Toggle Bit



0x

Hexadecimal Constant





0t

Octal Constant





0b

Binary Constant







The following two examples use the variables ~~var1~~ and ~~var2~~ in several expressions that use bitwise symbols.



In Example 1, the decimal values for these variables are:

~~var1~~ = 8

~~var2~~ = 10



In Example 2, the decimal values for these variables are:

~~var1~~ = 96

~~var2~~ = 8



Note. The binary values are also listed in the tables below. The representation chosen is 16 bits per variable.



Back to top

Functions Expression

Symbols on the Functions menu are shown in the figure below.



Note. If you are creating calculated tags in Hyper Historian, also refer to the functions described in the Performance Calculation Functions topic in Hyper Historian.



The Functions Menu





Symbol

Description

quality(value)

Quality of Value

setvalue(variable, value)

Assign a Value to a Variable

tostring(value)

Convert to String (Invariant Culture)

tostringculture(value)

Convert to String (Current Culture)

toformat(value, stringFormat)

Convert to Formatted String (Invariant Culture)

toformatculture(value, stringFormat)

Converted to Formatted String (Current Culture)

tonumber(value)

Convert to Number (Invariant Culture)

tonumberculture(value)

Convert to Number (Current Culture)

tonumberbase(value, base)

Convert to Number from Base

toboolean(value)

Convert to Boolean (Invariant Culture)

tobooleanculture(value)

Convert to Boolean (Current Culture)

asciitochar(number)

Convert Ascii Value(s) to Character(s)

asciitowchar(number)

Convert Unicode Value(s) to Character(s)

chartoascii(string)

Convert Character(s) to Ascii Value(s)

wchartoascii(string)

Convert Character(s) to Unicode Value(s)

String Functions



Array Functions





Time Span Functions





Date and Time Functions





String Functions

String Functions



Symbol

Description

tringSource, stringMatchPattern, booleanCaseSensitive)

Wildcard String Compare

len(string)

String Length

getat(string, index)

Get Character at Index

substring(string, startIndex, length)

Extract Substring

left(string, length)

Left Substring

right(string, length)

Right Substring

concat(string1, string2)

Concatenate Strings

indexof(stringToSearch, stringToFind, startIndex)

String Search. Note: as of 10.95.4, the indexof() function was modified to make the "startIndex" parameter (the third parameter) optional, and to add a fourth optional parameter for "count". This keeps indexof() consistent with the new functions but will not affect pre-existing projects.

Lastindexof

Returns the zero-based index of the last occurrence of a substring within a string or returns the zero-based index of the last occurrence of an item in an array.

Indexofany

Returns the zero-based index of the first occurrence within a string of any character from a specific set of characters.

Lastindexofany

Returns the zero-based index of the last occurrence within a string of any character from a specific set of characters.

replace(sourceString, stringFindWhat, stringReplaceWith)

String Replace

trim(stringToTrim,charactersToRemove)

Trim Left and Right

trimleft(stringToTrim, charactersToRemove)

Trim Left

trimright(stringToTrim, charactersToRemove)

Trim Right

tolower(string)

To Lowercase

toupper(string)

To Uppercase

null

Null Value Constant

/*comment*/

Comment



Array Functions

Array Functions



Symbol

Description

isarray(value)

Is Array Value

array(value1, ..., valueN)

Create Array

createarray(length)

Creates an Empty Array with the Specified Length

typedarray(elementType, value1, ..., valueN)

Create Typed Array

createtypedarray(elementType, length)

Create an Array with the Specified Length Where All Elements are of the Specified Datatype

qarray(excludeBad, excludeUncertain, value1, ..., valueN)

Create Array with Quality Options

qtypedarray(excludeBad, excludeUncertain, elementType, value1, ..., valueN)

Create Typed Array with Quality Options

len(array)

Array Length

setlen(array, length)

Modify the Number of Elements Stored in the Array

getat(array, index)

Get Value at Array Index

setat(array, index, value)

Set the Value at the Specific Index (Zero-based)

indexof(arrayToSearch, valueToFind, optionalStartIndex, optionalCount)

Array Item Search

lastindexof(arrayToSearch, valueToFind, optionalStartIndex, optionalCount)

Reverse Array Item Search

min(array)

Minimum

max(array)

Maximum

sum(array)

Sum

avg(array)

Average

stddev(array)

Standard deviation

stddev(array)

Standard deviation2

variance(array)

Variance

variance2(array)

Variance2

median(array)

Median

range(array)

Range

Time Span Functions

Time Span Functions



Symbol

Description

totimespan(value)

Convert to TimeSpan (Invariant Culture)

totimespanculture(value)

Convert to TimeSpan (Current Culture)

frommilliseconds(number)

TimeSpan from Milliseconds

fromseconds(number)

TimeSpan from Seconds

fromminutes(number)

TimeSpan from Minutes

fromhours(number)

TimeSpan from Hours

fromdays(number)

TimeSpan from Days

totalmilliseconds(timespan)

Total Milliseconds from TimeSpan

totalseconds(timespan)

Total Seconds from TimeSpan

totalminutes(timespan)

Total Minutes from TimeSpan

totalhours(timespan)

Total Hours from TimeSpan

totaldays(timespan)

Total Days from TimeSpan

timesincelastchange(variable, valueDelta, refreshRateTimeSpan)

Elapsed Time Since Value Changed

trueforduration(booleanCondition, timespanDuration)

True for Duration



Date and Time Functions

Date and Time Functions





Symbol

Description

todatetime(value)

Convert to DateTime (Invariant Culture)

todatetimeculture(value)

Convert to DateTime (Current Culture)

tolocal(dateTime)

Convert to Local Time

toutc(dateTime)

Convert to UTC Time

gettimeofday(datetime)

Get Time of Day from DateTime

getdate(datetime)

Get Date from DateTime

millisecond(dateTime)

Millisecond Fragment

second(dateTime)

Second Fragment

minute(dateTime)

Minute Fragment

hour(dateTime)

Hour Fragment

weekday(dateTime)

Day of Week

day(dateTime)

Day of Month

yearday(dateTime)

Day of Year

month(dateTime)

Month Fragment

year(dateTime)

Year Fragment

dayseconds(dateTime)

Day Total Seconds

now()

Get Current Local Date and Time

utcnow()

Get Current UTC Date and Time

currentdatetime(refreshRateTimeSpan)

Periodically Get Current Date and Time

currentdatetimeutc(refreshRateTimeSpan)

Periodically Get Current UTC Date and Time

today()

Today

yday()

Yesterday

mintime()

Minimum Time

maxtime()

Maximum Time

noon(dateTime)

Noon Time

bday(dateTime)

Beginning of Day

bweek(dateTime)

Beginning of Week

bmonth(dateTime)

Beginning of Month

byear(dateTime)

Beginning of Year

eweek(dateTime)

End of Week

emonth(dateTime)

End of Month

eyear(dateTime)

End of Year



Back to top



See Also:

Rules/Expression Editor

Expressions in the Data Browser

Global Expressions

Switch Statement
