GraphWorX64

GraphWorX64 is an HMI/SCADA application graphically representing data coming from all GENESIS64-supported data sources. In a nutshell, it can display strings, changing values according to data received from any supported device. It can also display vector or bitmap graphical objects with changing properties (size, rotation, location, visibility, etc.), according to actual values in connected data points. Other features include active objects (such as buttons) and writable strings (allowing users to write values to any supported devices/OPC Servers), etc. It also allows hosting of graphical controls which can handle reading, displaying and manipulating data from various sources (e.g. displaying alarms or trends).

To display data values coming from BACnet devices in GraphWorX64, you have to:

Launch GraphWorX64.
Switch to the ‘Dynamics’ ribbon tab.

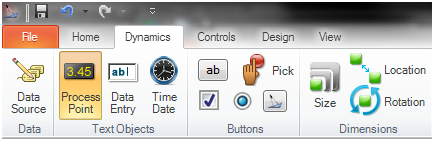

Click the ‘Process Point’ button.

Now, draw a rectangle in the canvas below representing the ‘active’ string where data will be displayed.
After releasing the left mouse button, the Data Browser will be open.
In the Data Browser’s ‘Shortcuts’ pane on the left side, choose ‘Home’ and you’ll switch to the root of the Data Browser.
In the ‘Grid’, choose ‘BACnet’ at very top of the list.

Important Note: With this action, you will initiate reading a BACnet Runtime Address Space. If the BACnet Runtime process has already been started, you will see BACnet devices which have been automatically discovered and manually configured. If not, you may get an empty or not fully updated list of BACnet devices. At this time, BACnet Runtime is scanning the network and is getting information about these devices. Clicking the ‘Refresh’ button (in the upper right corner of the Data Browser dialog, with two green, circled arrows) will update the list in the ‘Grid’ pane.

Now, choose (by double-clicking) your desired BACnet device from the list to see the objects it provides.
In the list of objects, select the one you need and double-click it again to see its properties.
From the list of the object’s properties, select the one you want to monitor (e.g. presentValue) and click the ‘OK’ button in the lower right corner of the Data Browser.
To see the data, switch GraphWorX64 to Runtime mode by clicking the ‘Runtime’ button in the upper right corner of the GraphWorX64 window.

If you want to change the data source of an existing Process Point (edit), or add or delete an existing Process Point or any other object, you have to switch back to Configuration mode by clicking on the ‘Configure’ button which appears in same location as ‘Runtime’ button.

Change Data Source of Existing Process Point

Be in Configuration mode.
Select your desired Process Point.
In the ‘Dynamics’ ribbon tab, click the very left button ‘Data Source’.
The Data Browser appears. Re-browse for your selected data source.

Make Existing Process Point Writable

You can send a custom value to the Process Point's Data Source, depending on the end-point device/OPC Server and whether it accepts the write request or not:

Select an existing Data Source.

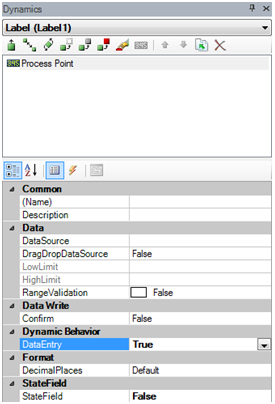

In the ‘Dynamics’ pane, which can be found on the left side of the GraphWorX64 window by default, change the DataEntry (in the Dynamic Behavior section) property to 'True'.

When the Process Point is set to be writable, click it while in Runtime mode of GraphWorX64, write a new value and then hit the ENTER key in order to write the new value to the property (if it is possible).
