FrameWorX Servers provide the framework for all communications in GENESIS64. FrameWorX Servers can connect to and use other FrameWorX Servers. In order to understand how to configure Platform Services for your FrameWorX Servers, you must understand the following concepts:
Once you are familiar with these options, you can Configure Platform Services for Each Server and Enable Load Balancing.
Armed with the information described above, you must configure the platform services for each FrameWorX Server.
To Open the Platform Services Configuration:
Open the Workbench, then click on the Tools ribbon.
Click on the Platform Services Configuration button, shown below, in the Tools section of the Tools ribbon.
Licensing Button

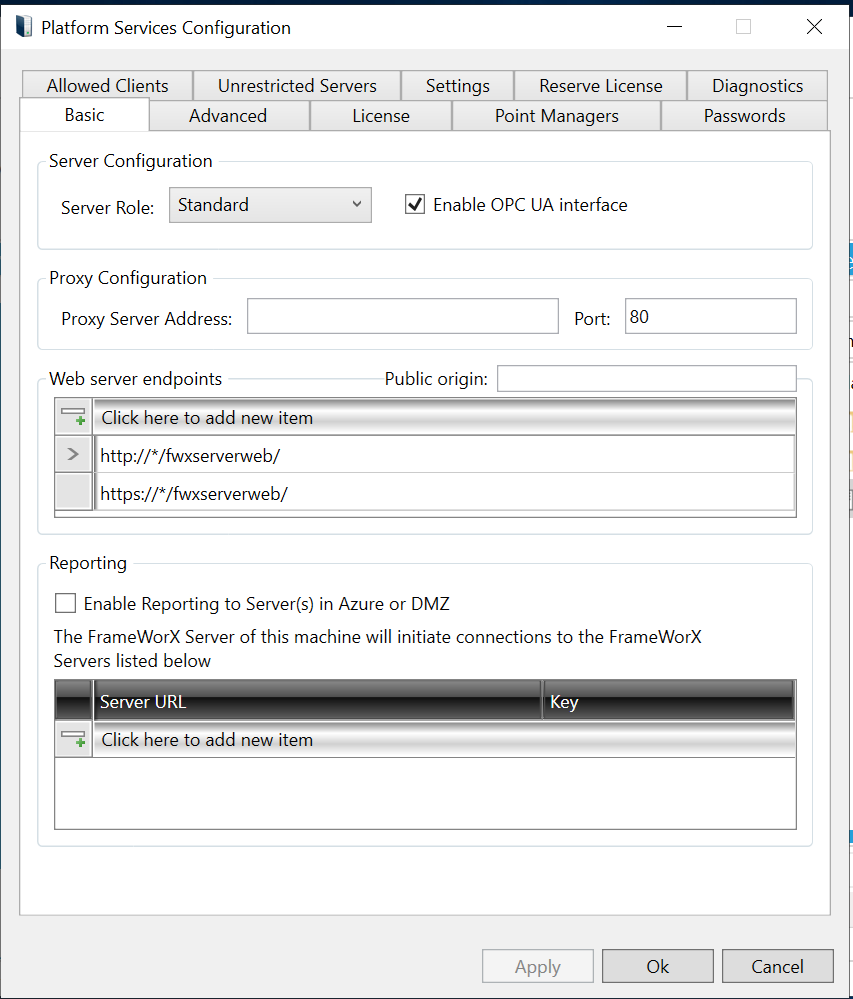

Platform Services Configuration - Basic Tab
Server Configuration
Via the Server Role pulldown menu, you may specify the server configuration as:
Standard. The server serves to clients or other FrameWorX Servers. The server supports security and aggregate requests from clients.
Forwarding. By selecting this option, you will be able to enter a computer name or IP address in the Advanced tab.
Data Collector. This selection supports situations where you may have a remote Data Collector behind a firewall that needs to be reached by a logger. In this instance, the Hyper Historian Collector communicates with a very small FrameWorX Server instance and that, in turn, uses reverse network comms to talk to the FrameWorX Server of the Hyper Historian Logger. In this role, some Point Managers are disabled. You can browse, but if you include any tags on scan they will return as 'bad', as this role is meant primarily for Hyper Historian rather than for GENESIS64. There is also no license required for FrameWorX Server in the Data Collector role.
Interfaces
In the Interfaces section of the Basic tab of the Platform Services Configuration window, you can specify, via checkbox, whether or not to use the WCF, REST, or OPC UA interface.
Reporting
You also have the option of clicking the "Enable Reporting to Server(s) in Azure or DMZ" checkbox in the Reporting section. Once checked, you can enter the server information in the 'Server URL/Click here to add new item' text box. The 'Enable Reporting to Server(s) in Azure or DMZ' option tells the server to actively connect to another server/other servers. On a local network, when a client is connected to server A and is going through server A to server B, server A initiates connection with B. This is not possible when server A is on Azure or DMZ, due to a firewall between server A and server B, which prevents server A from connecting to server B. But server B can initiate the connection to server A. Then, server A would use the connection to talk to server B (as if server A initiated it). This behavior is switched on with this checkbox. (Server B actively reports to serve A, rather than waiting for the connection from server A). A server may report to multiple other servers, which is why users are allowed to specify the list of servers to report to.
In the Server Name field, type the name of a server that has been cloned and is part of the load balancing group.
Click the plus sign icon. The server is added to the list.
Repeat until each server in the load-balancing group has been added to the list. Add all servers in the group excluding the server you are configuring.

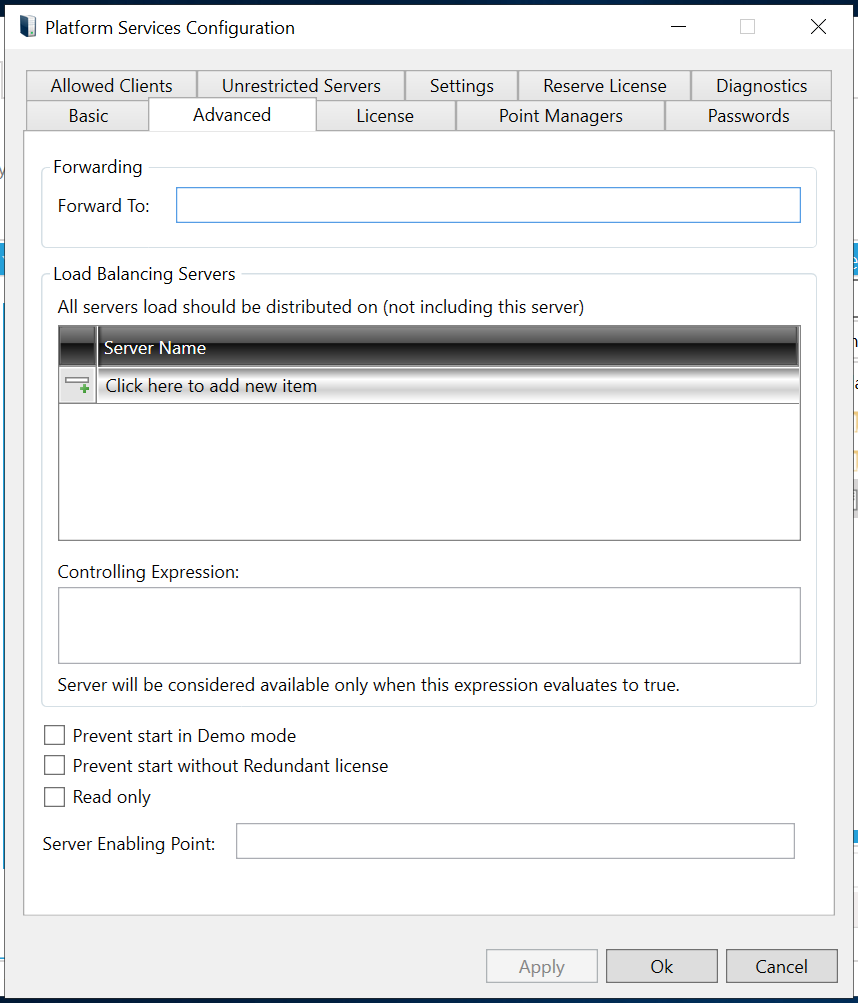

Platform Services Configuration - Advanced Tab
Load balancing is a way to scale your servers for large applications. It lets servers handle more clients and data. A server becomes the 'controlling' load balancing server when you specify a list of load balancing servers for it. If you don’t, that server itself will be ‘load-balancing’.
Servers in a Load Balancing Group
All servers in a load-balancing group must be clones of each other. They must have the same licensing and same security on their middle tier. Middle-tier servers share load balancing with other middle-tier servers; back-end servers share load balancing with other back-end servers.
How Load Balancing Works
In a group where load balancing occurs, one server intercepts client communications. After measuring the load on the other servers in the group, this server tells the client which load-balancing server to connect to. The primary server is the server that distributes the load; but if you have set up redundancy, both the primary and secondary servers are designed to distribute the load. The other servers -- those you have defined as load-balancing -- simply serve the clients that connect to the clients whose load they are designated to carry.
When a client session begins, load for that client is directed to a load-balancing server on the basis of the number of messages that are going through the server per second. (Messages, in this case, are requests, responses, and updates from the client.) The load-balancing server that is carrying the smallest load is assigned the client communication for the duration of the session. Load distribution occurs this way for middle-tier servers receiving communications from clients, but also for back-end servers receiving communications from middle-tier servers.
When an expression is entered in this text entry field (and any current changes to Platform Services Configuration are applied), the server will be considered available only when the entered expression evaluates to True.
Prevent start in Demo Mode - When checked, the server will not start in Demo mode.
Prevent start without Redundant License - When checked, the server will not start when the Redundancy license is not available.
Read only - True to prevent writing to any OPC servers or point managers. See here for more info.

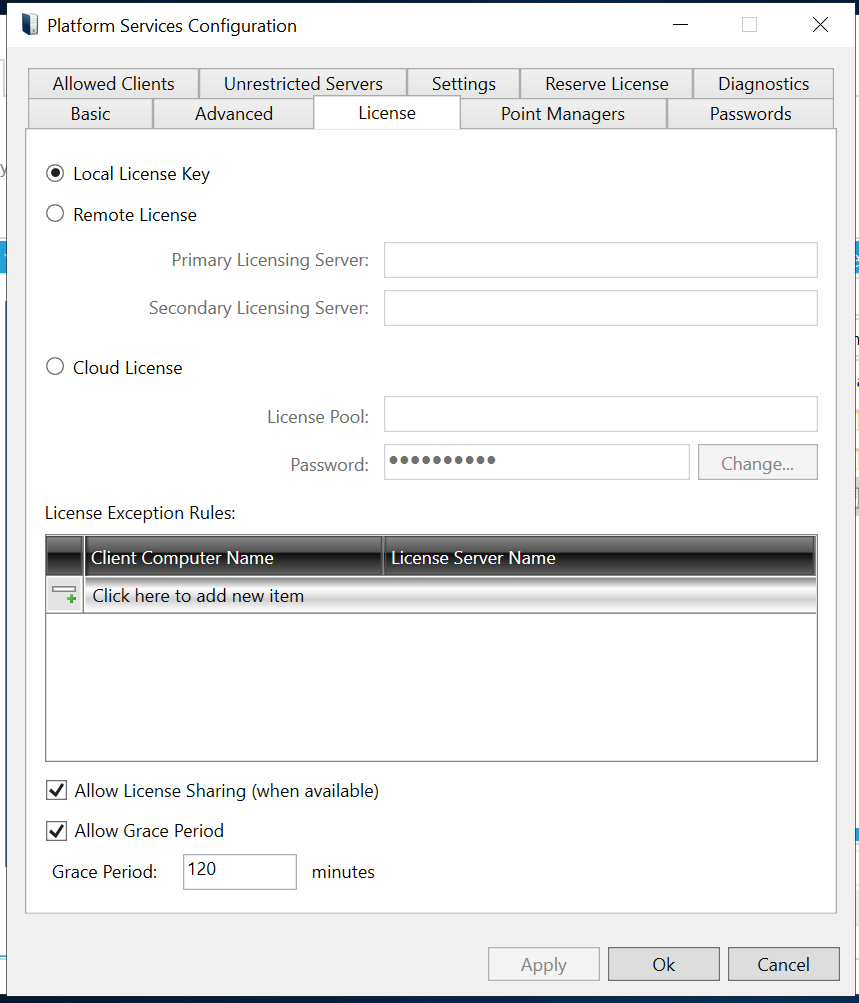

Platform Services Configuration - License Tab
If the server uses remote licensing, enter the name of the server to be used as the Primary Licensing Server. If there is a secondary, back-up server for licensing, enter its name in the Secondary Licensing Server field. Also note that the Allow License Sharing option must be selected for the servers you specify in these two fields.

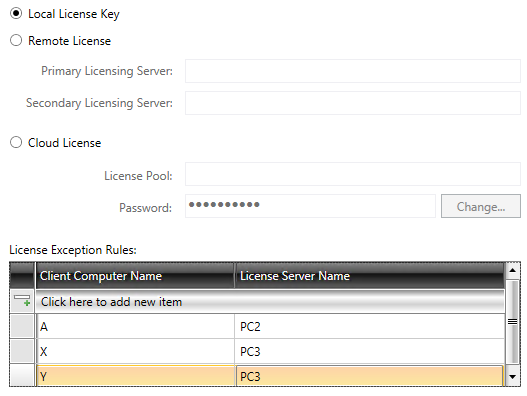

The License Exception Rules section allows users to redirect licensing to another server for specified client computers. In the example shown below, all clients connected to this FrameWorX Server get a local license. Client A gets license from PC2. Clients X and Y get their license from PC3.
License Exception Rules
Allow Grace Period - Click this checkbox in order to allow for a license grace period. Once activated, you can set a period of time (in minutes) in the text entry field.

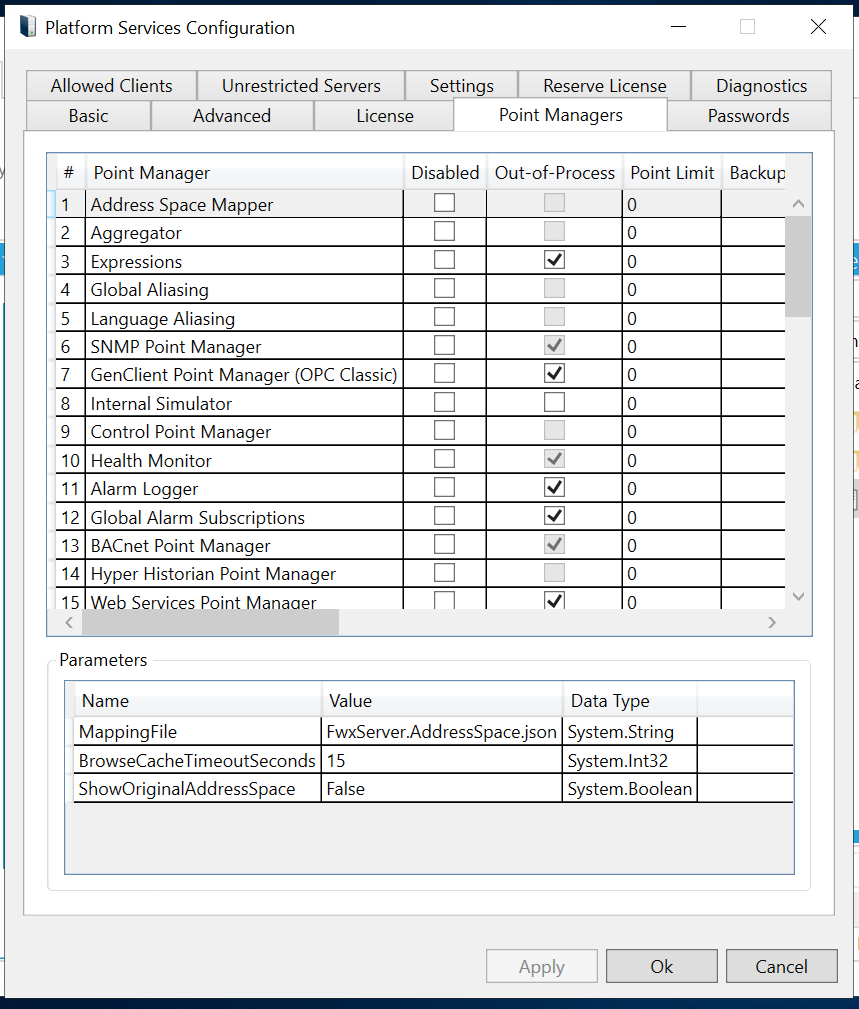

Platform Services Configuration - Point Managers Tab

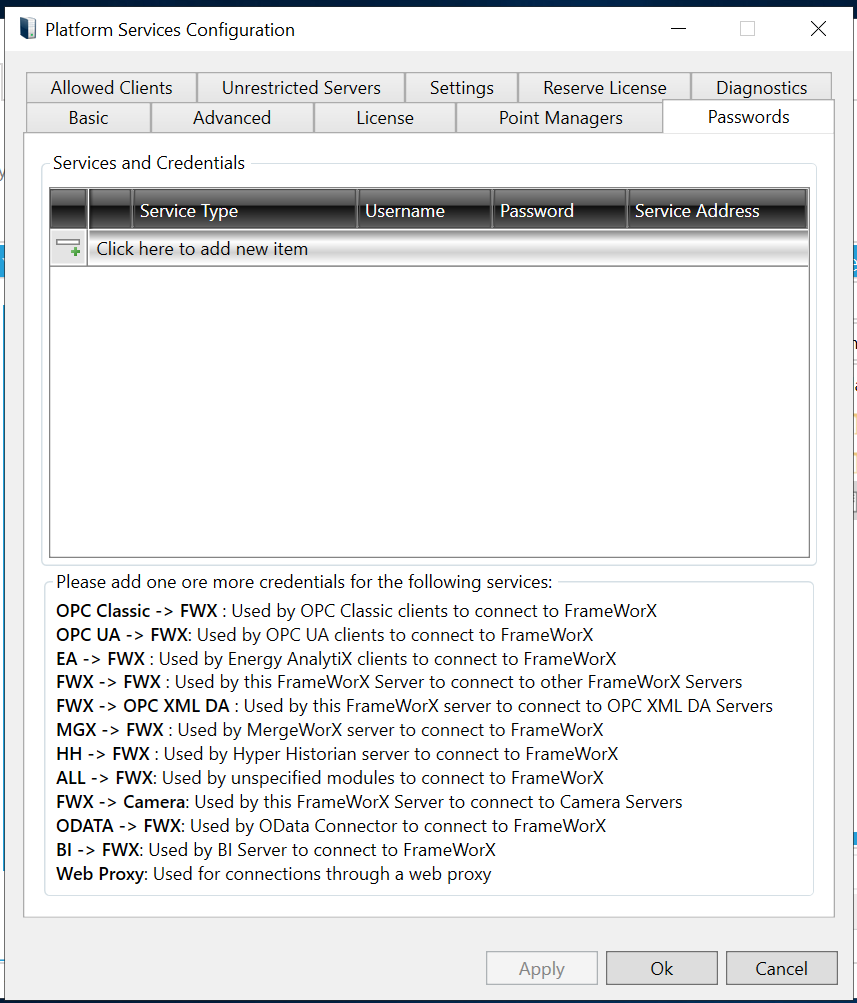

The Passwords tab allows users to specify credentials for different modules to connect to various servers. Currently, FrameWorX Servers and OPC XML DA servers are supported. Use * for the credentials to be used for all target addresses. These credentials are used for the modules running on the local computer.
[Note: Click HERE for information regarding Passwords and Unrestricted Servers].
Platform Services Configuration - Passwords Tab

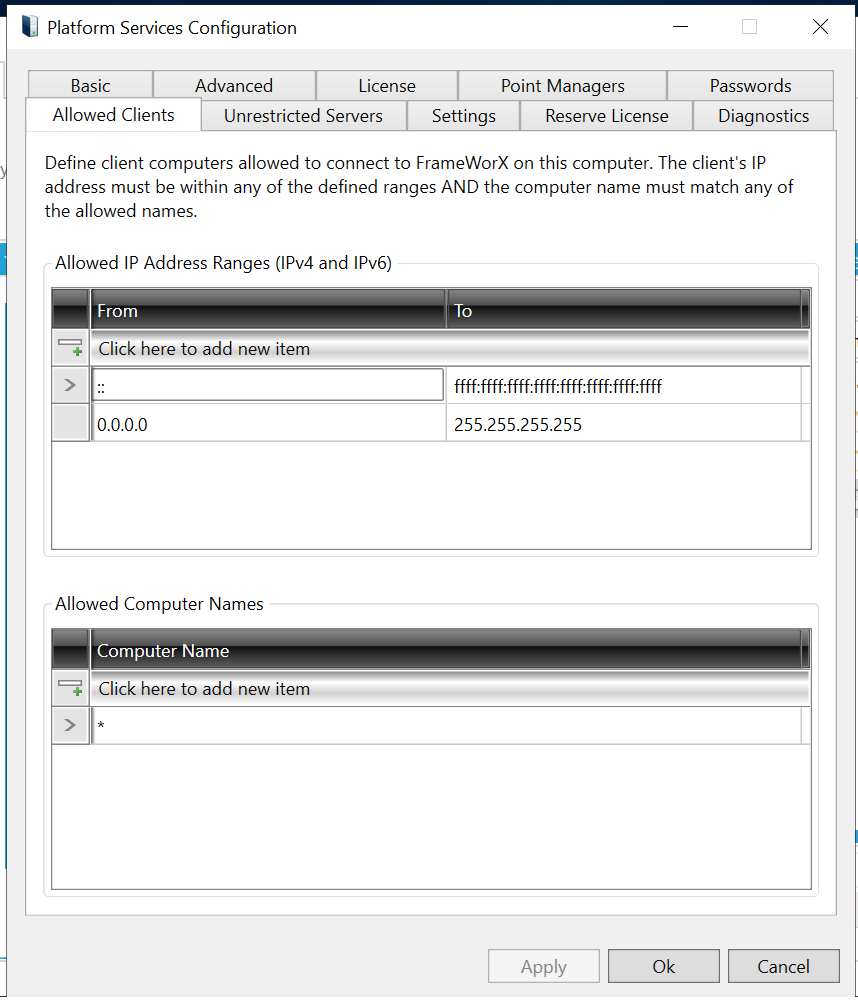

The Allowed Clients tab allows users to define which client computers are allowed to connect to the FrameWorX Server. Clients from other nodes will not be allowed. The client computer must match both lists: the Allowed IP Address Ranges (IPv4 and IPv6) and the Allowed Computer Names. Use * for any name. Use IPv4 and IPv6 addresses (Windows uses IPv6 internally). All clients are allowed by default.
Platform Services Configuration - Allowed Clients Tab

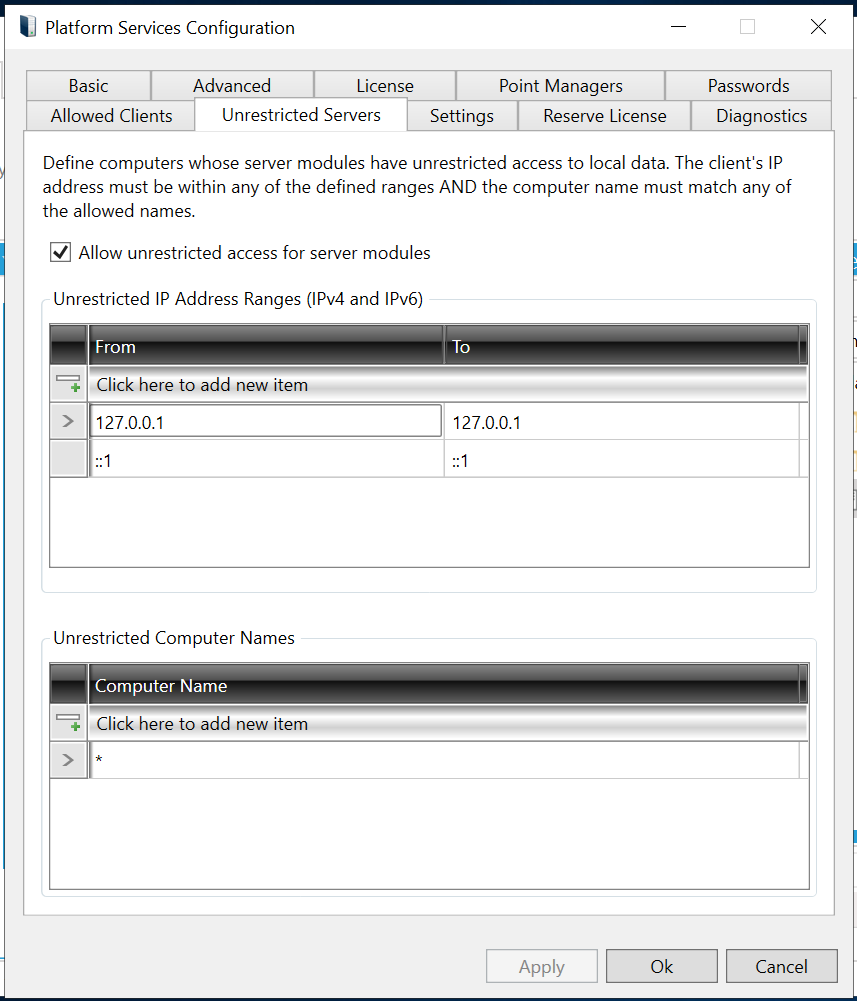

The Unrestricted Servers tab allows users to define which FrameWorX Servers (acting as clients) can connect to the FrameWorX Server with no security restrictions. The client computer must match both lists: the Unrestricted IP Address Ranges (IPv4 and IPv6) and the Unrestricted Computer Names. Use * for any name. Use IPv4 and IPv6 addresses (Windows uses IPv6 internally). Unrestricted access is only allowed for other FrameWorX Servers acting as clients. There are no unrestricted clients by default.
[Note: Click HERE for information regarding Passwords and Unrestricted Servers].
This setting is related to setting a user name/password for FrameWorX Server to FrameWorX Server communication. When a FrameWorX Server connects to another FrameWorX Server, it is treated like other client (unless configured), i.e. it gets the permissions of the default user.
There are two ways to get better permissions:
Set up a user name/password for FrameWorX Server to FrameWorX Server communication on the ‘client’ FrameWorX Server. The ‘client’ FrameWorX Server then logs in using that user name.
Set up the ‘client’ FrameWorX Server as an unrestricted client on the ‘server’ FrameWorX Server. The ‘server’ FrameWorX Server then will not check the security for the ‘client’ FrameWorX Server.
Platform Services Configuration - Unrestricted Servers Tab

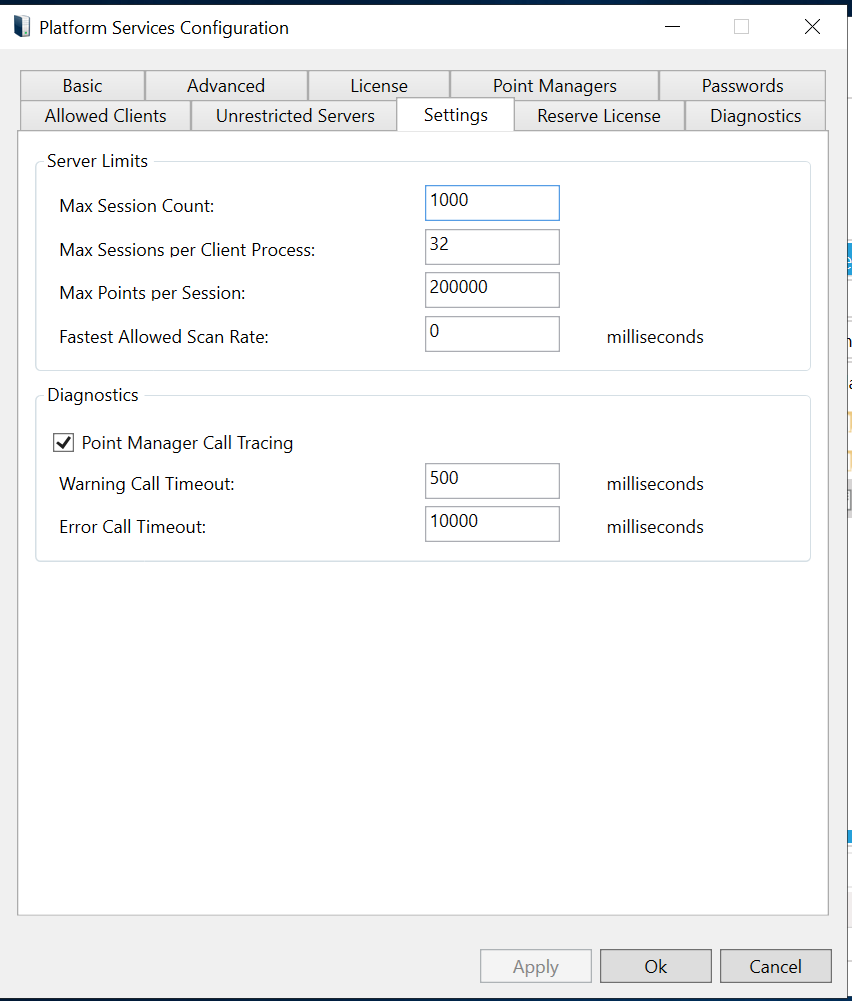

The Settings tab allows users to set parameters for Server Limits and Diagnostics.
Platform Services Configuration - Settings Tab
The Server Limits settings protect the server from being overloaded by excessive requests from the clients.
Max Session Count - Specifies how many concurrent sessions the FrameWorX Server is allowed to handle. When the limit is reached, other sessions will be rejected. NOTE: When a client is disconnected, is killed or crashes, its session will be cleared after one (1) minute. Until the session is cleared, it is counted in the limit.
Max Sessions per Client Process - Typically, each client application creates one session with the server. Under certain circumstances, there can be more sessions (e.g. a TrendWorX Viewer embedded in a GraphWorX display). This setting limits the number of concurrent sessions from one client process.
Max Points per Session - Limits the number of all points per session. The points include data points, security points, licensing, alarm subscriptions, etc. NOTE: Some points (security, licensing) are ‘invisible’, so the limit should be greater than the expected number of data points.
Fastest Allowed Scan Rate - Defines the fastest possible scan rate the server would use. When a client requests a faster scan rate for a data point, it will not be rejected, but the scan rate will be modified to the scan rate defined here.
The Diagnostics settings are for troubleshooting, evaluations/fixes.
Point Manager Call Tracing - Enables/disables the diagnostic feature. When enabled, FrameWorX Server monitors the duration of particular calls to Point Managers (i.e. plug-in modules - see above).
Warning Call Timeout - A warning will be logged into a TraceWorX log when a call to a Point Manager takes longer than specified. NOTE: All calls to Point Managers should be asynchronous and non-blocking. A warning can be an indication of a bad design of a Point Manager.
Error Call Timeout - An error will be logged into a TraceWorX log when a call to a Point Manager takes longer than specified. NOTE: All calls to Point Managers should be asynchronous and non-blocking. When the Error Call Timeout gets big enough, it is likely that a particular Point Manager is deadlocked when an error is detected. An error can be an indication of a bug in a Point Manager.

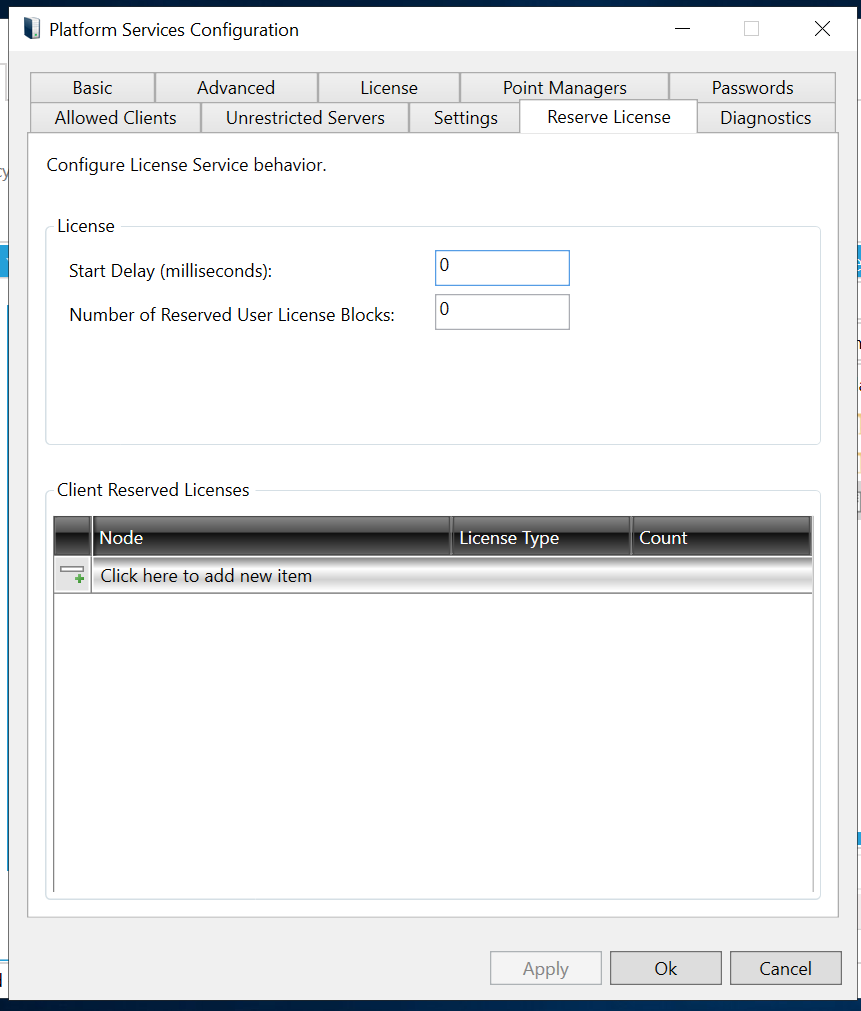

The Reserve License tab allows you to configure License Service behavior and set Node Reserved Licenses. Some ICONICS product users require priority access to a connected system at all times. With networked systems, users can possibly remain logged into systems that they are no longer physically near. An ICONICS Reserved User License ensures priority access without allocating specific license bits to all users.
The ICONICS Reserved User License can provide higher level users with priority access to the system and ties into existing ICONICS proper security and licensing. It sets aside needed licenses for an organization's select personnel while allowing the remaining licenses to be available for additional users.
The top License section allows you to reserve licenses for:
Client Stations
Desktop Enabled Stations
GraphWorx64 Client Stations
TrendWorX64 Client Stations
AlarmWorx64 Client Stations
Workbench Client Stations
Gadgets Client Stations
MobileHMI Client Stations
MobileHMI Write Stations
Enter a Start Delay (in milliseconds) in the text entry field for the amount of time to delay the start of the licensing service (in order to prevent any licensing server conflicts).
Enter the Number of Reserved User License Blocks in the next text entry field.
NOTE: A user with reserved license enabled will consume all of the reserved license types when running as a reserved user.
NOTE: If there are not enough reserved licenses available, the user will consume standard licenses as if they are configured to run as a standard user.
Platform Services Configuration - Reserve License Tab
The bottom Client Reserved Licenses section allows users to pre-allocate license types to a specific node. Enter a Node and then select a specific License Type and then enter a number in the Count column for the number of pre-allocated licenses to reserve for that node (in most cases, the Count number will be 1).

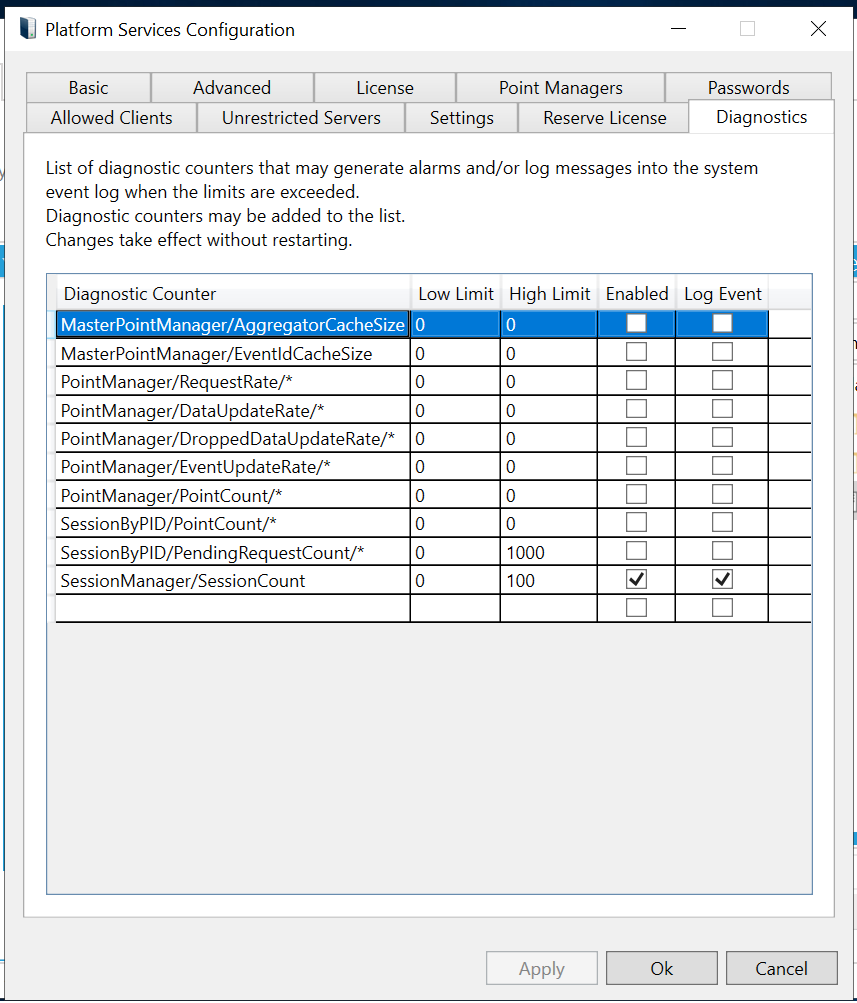

The Diagnostics tab allows you to set properties for Diagnostic Counters. These Diagnostic Counters may generate alarms and/or log messages into the system log when their limits are exceeded. You can set a Low Limit or High Limit for any selected Diagnostic Counter and can add Diagnostic Counters by typing within the empty text entry field at the bottom of the list.
Low Limit - Set a low limit threshold for the selected Diagnostic Counter
High Limit - Set a high limit threshold for the selected Diagnostic Counter
Enabled - Click this checkbox to enable the selected Diagnostic Counter
Log Event - Click this checkbox to log when either Low or High Limit thresholds for the selected enabled Diagnostic Counter have been exceeded.
Platform Services Configuration - Diagnostics Tab
Once you have entered your desired information in any of the tabs within the Platform Services Configuration window, click on OK to save your settings.
To enable load balancing for a client machine or server, follow the steps below.
Open Workbench, then click on the Tools ribbon.
Click on the FrameWorX Server Location button, shown below, in the Tools section of the Tools ribbon.
FrameWorX Server Location Button
You can use the FrameWorX Server provider in the classic Workbench to configure redundant platform services by specifying the machine name of your Back-End servers on the network.
