PortalWorX-SL is a Web browser-based, Microsoft Silverlight-integrated runtime tool for viewing and analysis of data configured via complementary ICONICS applications (including AlarmWorX64, FDDWorX, GraphWorX64, ReportWorX and TrendWorX).
To Add a GridWorX64 Viewer in PortalWorX-SL
First, launch PortalWorX-SL via the Start Menu > All Programs > ICONICS > PortalWorX-SL. You will first see the Windows Security login in order to connect to PortalWorX-SL, as shown below. Enter your User Name and Password, then click on 'OK' to proceed.

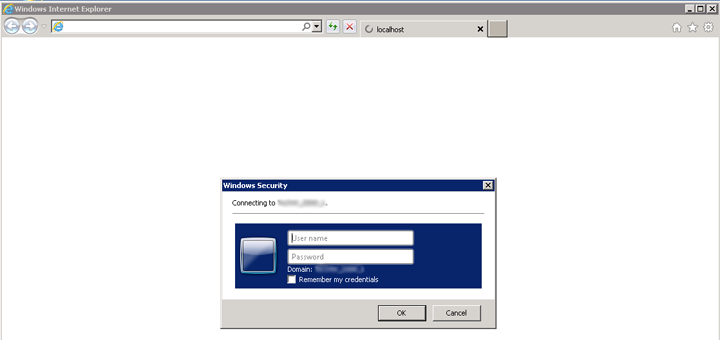

Windows Security Login
PortalWorX-SL will now open in your selected Web browser, as shown below. You can launch a GridWorX64 Viewer in multiple ways. You can select it within the GENESIS64 Controls in the Home Ribbon OR you can select it within the main window in the lower right of the PortalWorX-SL browser window OR you can select it from the list within the ToolBox in the left navigation box.

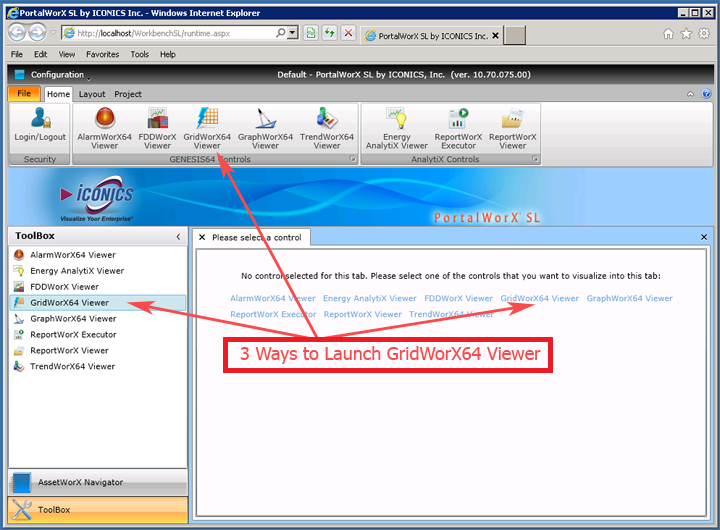

Options for Launching GridWorX64 Viewer in PortalWorX-SL
Once you have selected a GridWorX64 Viewer, it will initially connect to its configuration database (which can be set up via the AssetWorX provider in the Workbench).
The following "Configure Web Part" window will then appear. You can fill out the settings or leave them as they are.

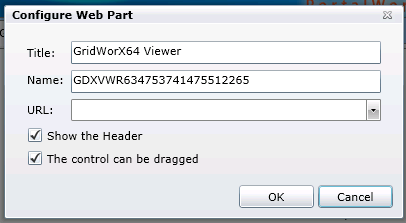

Configure Web Part Window
Title - This is the name for the Viewer itself.
Name - This can be a specific name for the data that will shown within the viewer. When first launched, the GridWorX64 Viewer will include default characters here.
URL - Enter a file name for GridWorX64 Silverlight (.gdxxs) file to display in the viewer.
Show the Header - Click on this checkbox to include the Viewer's Header.
The control can be dragged - Click on this checkbox to enable dragging for this viewer.
Once you have completed updating these settings, click on the 'OK' button to proceed.
You can now proceed with Configuration.
See Also:
GridWorX64 Viewer Configuration (PortalWorX-SL)
