ReportWorX64 Navigator

The ReportWorX64 Navigator control in GraphWorX64 provides the ability to see a populated tree control of configured reports in Runtime mode in a GraphWorX64 display.

To Use the ReportWorX64 Navigator:

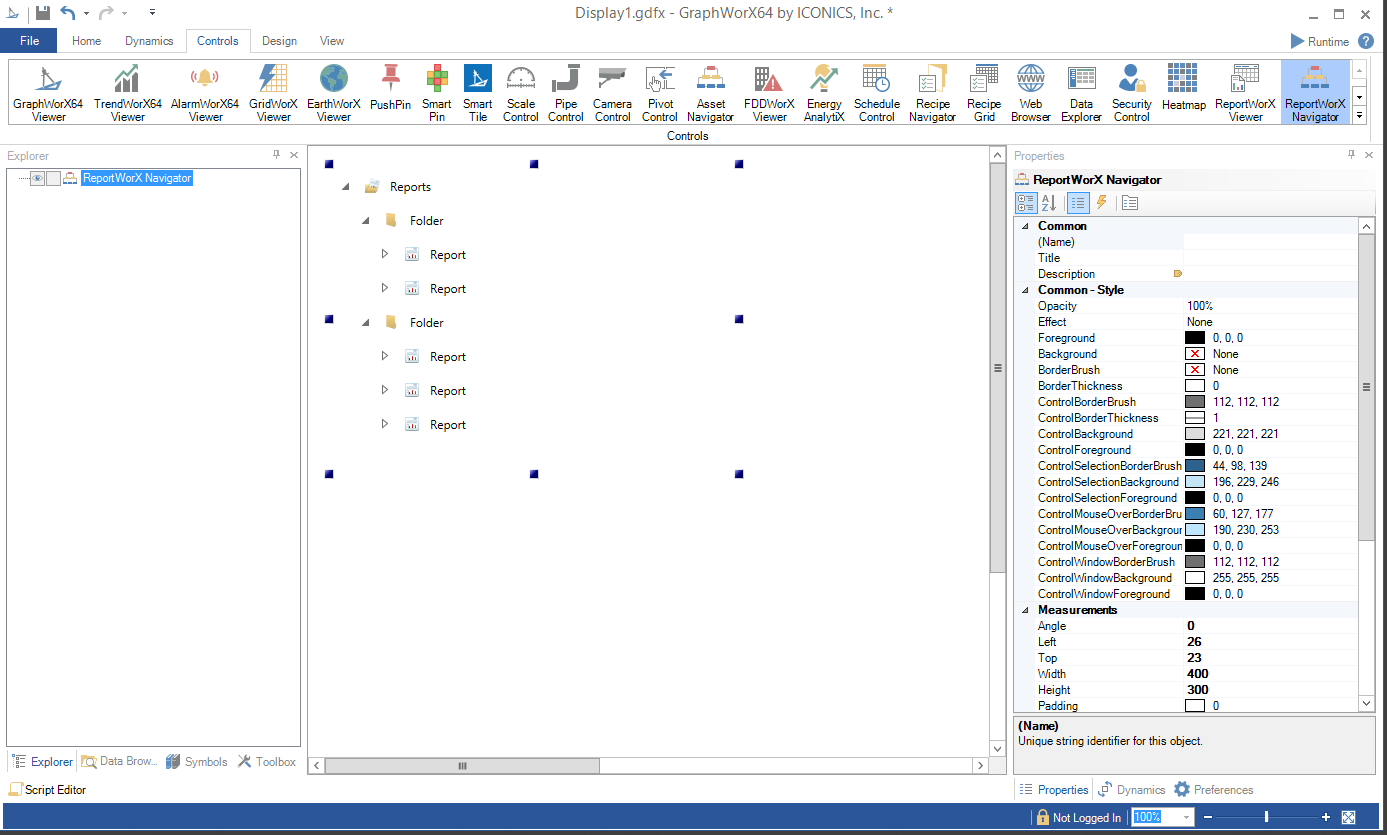

Within a GraphWorX64 display configuration, click on the Controls ribbon and then select the ReportWorX64 Navigator control. This activates the control with a "+", allowing you to draw a box within the display field to your preferred size/measurement. Once you release the mouse button, the control will populate with a temporary representative tree control showing the report navigator structure. The result will look similar to the image below.

Configuring the ReportWorX64 Navigator Control in GraphWorX64

Once you have inserted the ReportWorX64 Navigator control, you can edit its properties by double-clicking its drawn box within the canvas OR by selecting it and clicking on the Configure button in the ReportWorX Navigator ribbon. You can also right-clicki on the box and select "Object Properties", which allows you to make changes within the Properties field in the right side of the GraphWorX64 window.

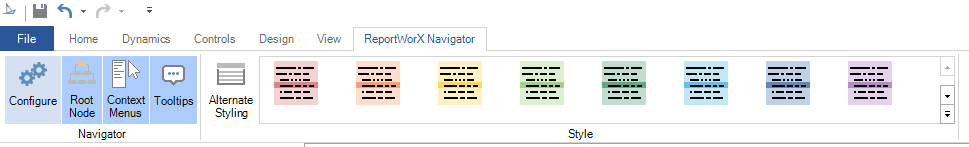

ReportWorX64 Navigator Ribbon

Navigator

Configure - Click this button to open the ReportWorX64 Navigator control configuration window.
Root Node - Enable to show default root node (on by default).
Context Menus - Enable to show context menu when right-clicking (on by default).
Tooltips - Enable to show tooltips on reports and commands (on by default).

Style

Alternate Styling - Enables alternate background and foreground on every other row.
Style - This portion of the ReportWorX64 Navigator provides several possible styles for the navigator. Click on the button to expand the selections. These include Light Themes, Dark Themes, Gray Themes, and Basic Themes (which includes the default Light Style).

ReportWorX64 Navigator Object Properties

The ReportWorX64 Navigator properties can be configured either through the Configuration window, shown below, or via the Properties section of the Workbench on the right side of the GraphWorX64 window.

Configuration Through the ReportWorX64 Navigator Configuration Window

General

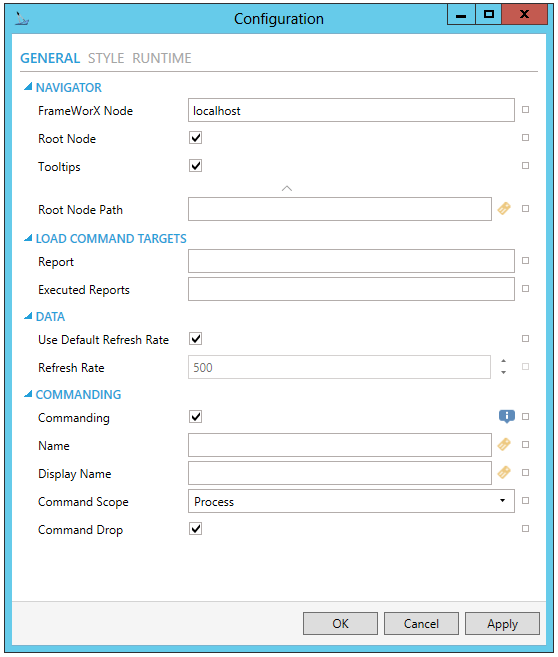

ReportWorX64 Navigator Configuration Window - GENERAL Tab

NAVIGATOR

FrameWorX Node - The server node to connect to for reports. Enter the node in the text entry field.
Root Node - True to show root node.
Tooltips - True to show tooltips.
Root Node Path - Path to node that should serve as a root node for the displayed tree.

LOAD COMMAND TARGETS

Report - Commanding name of target control that should receive LoadReport commands from this {{Report Navigator\Product Name}}.
Executed Reports - Commanding name of target control that should receive LoadExcutedReports commands from this {{Report Navigator\Product Name}}.

DATA

Used Default Refresh Rate - Use default refresh rate or refresh rate inherited from parent container.
Refresh Rate - Data refresh rate of data sources defined for properties, in milliseconds. Do not modify if you intend to use local variables for sharing data with other controls, e.g. selected asset or current time range.

COMMANDING

Commanding - Determines whether commands are enabled for this display. Use the CommandingName setting to specify a registration name.
Name - Name used for registering the control for commanding.
Display Name - User friendly control name.
Command Scope - Indicates whether commands sent and received by this display affect the current process only (Process) or all processes that are currently opened (Machine). For inter-process commanding, use the Machine option.
Command Drop - True to enable receiving commands by drag and drop.

STYLE

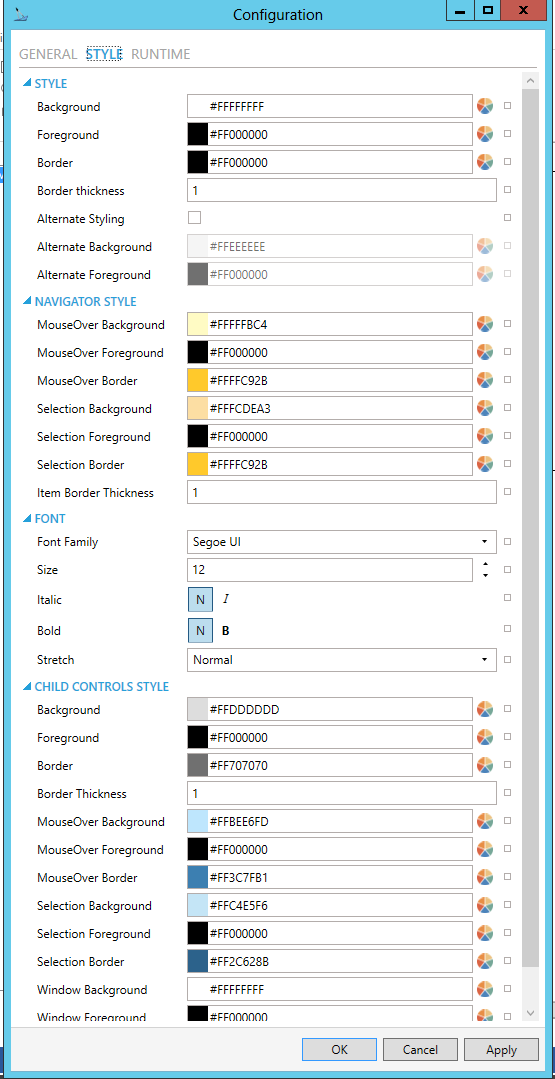

ReportWorX64 Navigator Configuration Window - STYLE Tab

STYLE

Background - Background color, gradient or pattern of this object. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your background
Foreground - Foreground color, gradient or pattern of this object. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your foreround.
Border - Color, gradient, or pattern of the border surrounding this object. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your border.
Border thickness - Width of the border surrounding this object. Enter a thickness in the text entry field.
Alternate Styling -Enables alternate styling applied to every other row.
Alternate Background - Background applied to every other row if Alternate Styling is enabled. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your alternate background.
Alternate Foreground -Foreground applied to every other row if Alternate Styling is enabled. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your alternate foreground.

NAVIGATOR STYLE

MouseOver Background - Background brush of item under mouse cursor. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your mouseover background.
MouseOver Foreground - Foreground brush of item under mouse cursor. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your mouseover foreground.
MouseOver Border - Border brush of item under mouse cursor. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your mouseover border.
Selection Background - Background brush of selected item. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your selection background.
Selection Foreground - Foreground brush of selected item. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your selection foreground.
Selection Border - Border brush of selected item. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your selection border.
Item Border Thickness - Border thickness of items. Enter a thickness in the text entry field.

FONT

Font Family - Specifies the name of the font used to render text. Use the pulldown menu to select from installed fonts.
Size - Specifies the size of the font used to render text. Enter a font size in the text entry field or use the up/down buttons.
Italic - Specifies the style of the font used to render text (italic). Select "N" for Normal or "I" for Italic.
Bold - Specifies the thickness of the font used to render text (bold) Select "N" for Normal or "B" for Bold.
Stretch - Specifies whether a font appears with a typical width (Normal) narrower than usual (Condensed), or wider than usual (Expanded). Use the pulldown menu to make your selection.

CHILD CONTROLS STYLE

Background - Background brush of child controls. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your background.
Foreground - Foreground brush of child controls. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your foreground.
Border - Border brush of child controls. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your border.
Border Thickness - Border thickness of child controls. Enter a thickness in the text entry field.
MouseOver Background - Background brush of child controls under mouse cursor. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your mouseover background.
MouseOver Foreground - Foreground brush of child controls under mouse cursor. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your mouseover foreground.
MouseOver Border - Border brush of child controls under mouse cursor. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your mouseover border.
Selection Background - Background brush of selected child controls. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your selection background.
Selection Foreground - Foreground brush of selected child controls. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your selection foreground.
Selection Border - Border brush of selected child controls. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your selection border.
Window Background - Background brush of child control windows. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your background of child control windows.
Window Foreground - Foreground brush of child control windows. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your foreground of child control windows.
Window Border - Border brush of child control windows. You can enter a color code (if known) in the text entry field or click on the button to open the Brush Picker window and set the properties for your border of child control windows.

RUNTIME

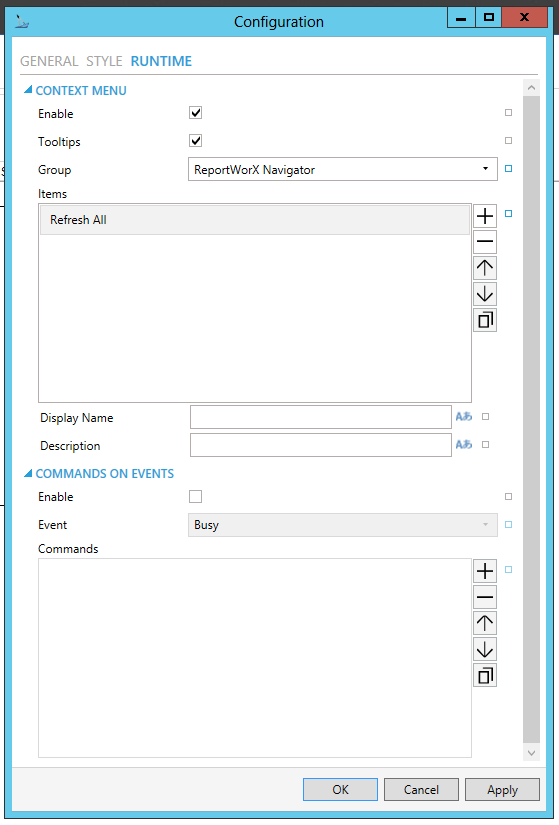

ReportWorX64 Navigator Configuration Window - RUNTIME Tab

CONTEXT MENU

Enable - True to enable context menu on right click.
Tooltips - Enables tooltips on hover in context menu items.
Group - Select context menu group for editing. Use the pulldown menu to select from ReportWorX Navigator, Report Root and Folder and Report Node.
Items - Allows users to add items to a collection based on the selected Context Menu Group. Click on the plus sign [+] to add an item to the list. Click on the minus sign [-] to remove a listed item. Click on the up arrow to move a selected item higher in the list. Click on the down arrow to move a selected item lower in the list. Click on the button to duplicate a selected entry in the list.

ReportWorX64 Navigator

Refresh All - Action to refresh the whole navigator control
- Display Name - Set the name displayed in configuration collection. Enter a display name in the text entry field or click on the button to open the Data Browser and navigate to your selected Display Name.
- Description - Set the description displayed in tooltip in configuration collection. Enter the description in the text entry field or click on the button to open the Data Browser and navigate to your selected description.
Separator - Horizontal separator to separate groups of context menu items.
Custom Command - Custom command that can be configured to run any command with custom parameters.
- Command - Use the pulldown menu to select the Command you wish to include as a Context Menu Item. Click HERE for more info on Commands in GraphWorX64.
Copy from - This selection gives you the option of copying all applicable items from your selected Context Menu Group.

Report Root and Folder

Load Executed Reports - Sends LoadExecutedReports command to selected ReportWorX64 Viewer.
- Display Name - Set the name displayed in configuration collection. Enter a display name in the text entry field or click on the button to open the Data Browser and navigate to your selected Display Name.
- Description - Set the description displayed in tooltip in configuration collection. Enter the description in the text entry field or click on the button to open the Data Browser and navigate to your selected description.
- Refresh - Action to refresh the children of specific node.
- Refresh All - Action to refresh the whole navigator control
- Separator - Horizontal separator to separate groups of context menu items.
- Custom Command - Custom command that can be configured to run any command with custom parameters.
- - Command - Use the pulldown menu to select the Command you wish to include as a Context Menu Item. Click HERE for more info on Commands in GraphWorX64.
- Copy from - This selection gives you the option of copying all applicable items from your selected Context Menu Group.

Report Node

Load Report - Sends LoadReport command to selected ReportWorX64 Viewer.
- Display Name - Set the name displayed in configuration collection. Enter a display name in the text entry field or click on the button to open the Data Browser and navigate to your selected Display Name.
- Description - Set the description displayed in tooltip in configuration collection. Enter the description in the text entry field or click on the button to open the Data Browser and navigate to your selected description.
- Refresh All - Action to refresh the whole navigator control
- Separator - Horizontal separator to separate groups of context menu items.
- Custom Command - Custom command that can be configured to run any command with custom parameters.
- - Command - Use the pulldown menu to select the Command you wish to include as a Context Menu Item. Click HERE for more info on Commands in GraphWorX64.
- Copy from - This selection gives you the option of copying all applicable items from your selected Context Menu Group.

COMMANDS ON EVENTS

Note: The ReportWorX64 Navigator is one of many controls that now supports executing commands on events. These events vary per control, but for the ReportWorX64 Navigator they include:

• Ready

• Report Selected

• Started

To configure the command to be executed when this event occurs, go to Runtime tab. Find the Commands on Events section, check Enable Commands on Events, then configure the form below.

Enable - True to enable configuring actions and commands for control events.
Event - Select a control event and configure actions to fire when the event occurs. Use the pulldown menu to select from Ready, Report Selected, or Started.
Commands - List of actions to perform when selected control event occurs. Click on the plus sign [+] to add an item to the list. Click on the minus sign [-] to remove a listed item. Click on the up arrow to move a selected item higher in the list. Click on the down arrow to move a selected item lower in the list. Click on the button to duplicate a selected entry in the list. For any Custom Command selected in the list, you can then select a specific Command and then complete the associated properties for that command. Click HERE for more info on Commands in GraphWorX64.

Configuration Through the Properties Section of the GraphWorX64 Window

Common

(Name) - Unique string identifier for this object.
Title - Title for this object. Unlike the Name property, the Title does not have to be unique.
Description - Description for this object. The Description typically appears as a tooltip for the object.

Common-Style

Opacity - Overall opacity of this object (0% = fully transparent. 100% = fully opaque).
Effect - Visual effects (3D-edge, shadow, glow, blue) applied to this object.
Foreground - Foreground color, gradient, or pattern of this object.
Background - Background color, gradient, or pattern of this object.
Border - Color, gradient, or pattern of the border surrounding this object.
BorderWidth - Width of the border surrounding this object.
ControlBorderBrush - Border brush of child controls.
ControlBorderThickness - Border thickness of child controls.
ControlBackground - Background brush of child controls.
ControlForeground - Foreground brush of child controls.
ControlSelectionBorderBrush - Border brush of selected child controls.
ControlSelectionBackground - Background brush of selected child controls.
ControlSelectionForeground - Foreground color of selected child controls.
ControlMouseOverBorderBrush - Border brush of child controls under mouse cursor.
ControlMouseOverBackground - Background brush of child controls under mouse cursor.
ControlMouseOverForeground - Foreground brush of child controls under mouse cursor.
ControlWindowsBorderBrush - Border brush of child control windows.
ControlWindowBackground - Background brush of child control windows.
ControlWindowForeground - Foreground brush of child control windows.

Measurements

Angle - The current angle of rotation for this object.
Left - Horizontal position of top-left corner of the object.
Top - Vertical position of the top-left corner of the object.
Width - Width of the object.
Height - Height of the object.
Padding - The amount of space surrounding the content of this object.

Misc

LoadExecutedReportCommandingTarget - Commanding name of target control that should receive LoadExecutedReports commands from this {{ReportNavigator\ProductName}}.
LoadReportCommandingTarget - Commanding name of target control that should receive LoadReport commands from this {{ReportNavigator\ProductName}}.
FrameWorXNode - The server node to connect to for reports. Enter the node in the text entry field.
EnableContextMenu - True to enable context menu on right click.
ShowRootNode - True to show root node.
ShowTooltips - True to show tooltips of nodes under cursor.
RootNode - Path to node that should serve as a root node for the displayed tree. Click the ellipsis button [...] to open the Data Points window to navigate to your selected Root Node.

Misc-Commanding

CommandingEnabled - Determines whether commands are enabled for this display. Use the CommandingName setting to specifiy a registration name.
DragAndDropCommandingEnabled - Set to True to enable receiving commands by drag and drop method.
CommandingName - Name used for registering the control for commanding.
CommandingDisplayName - User friendly control name.
MaxCommandScope - Indicates whether commands sent and received by this display affect the current process only (Process) or all processes that are currently opened (Machine). For inter-process commanding, use the Machine option.

Text

FontFamily - Specifies the name of the font used to render text.
FontSize - Specifies the size of the font used to render text.
FontStyle - Specifies the style of the font used to render text (italic).
FontWeight - Specifies the thickness of the font used to render text (bold).

3. After setting the Object Properties, the ReportWorX Navigator control can be saved when the containing GraphWorX64 display itself is saved.

ReportWorX64 Navigator Runtime

Putting a GraphWorX64 display containing a ReportWorX64 Navigator control into Runtime mode allows for additional options, as shown below.

The ReportWorX64 Navigator control can work in conjunction with the ReportWorX Viewer control within the same GraphWorX64 display. In the example below, the ReportWorX64 Navigator control can be seen in the right side of the display area.

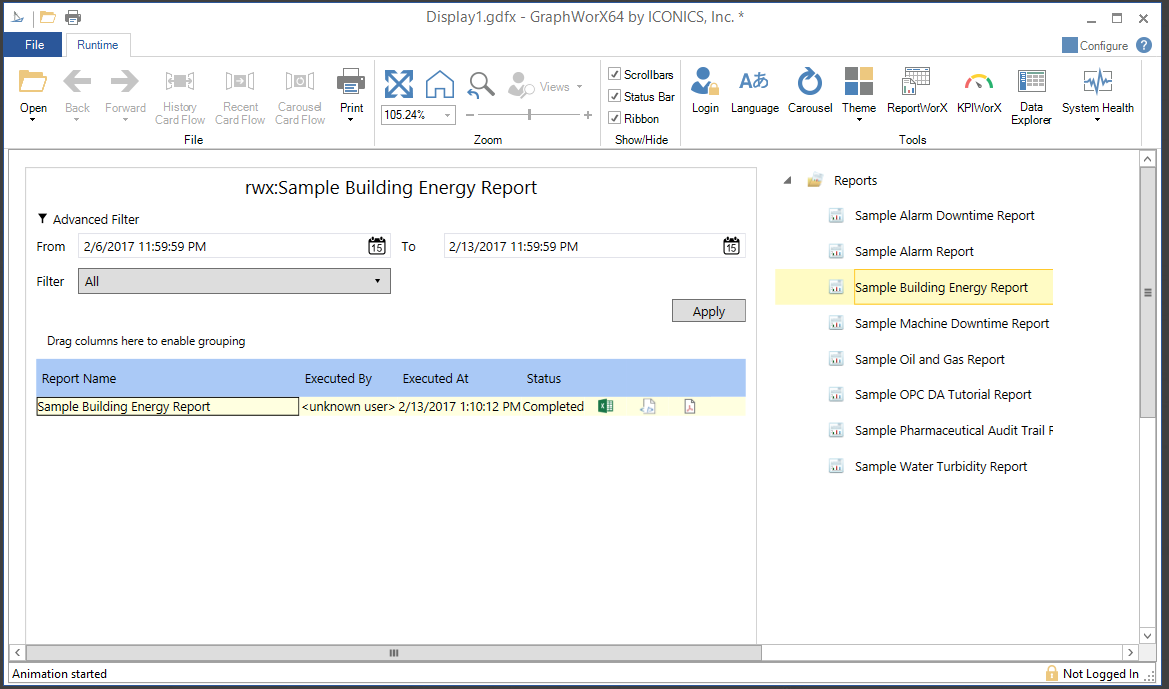

ReportWorX Navigator in Runtime Mode in GraphWorX64
