Users can use these configuration forms to see what modules are on the devices to deploy ICONICS (and custom) modules to the device.

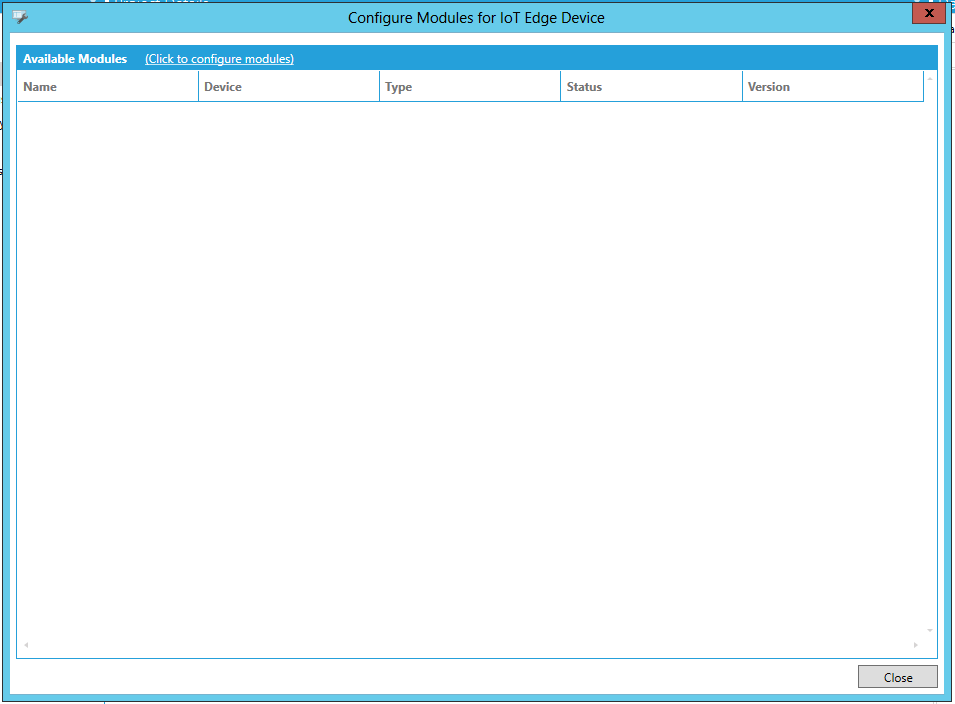

Configure Modules for IoT Edge Device Window

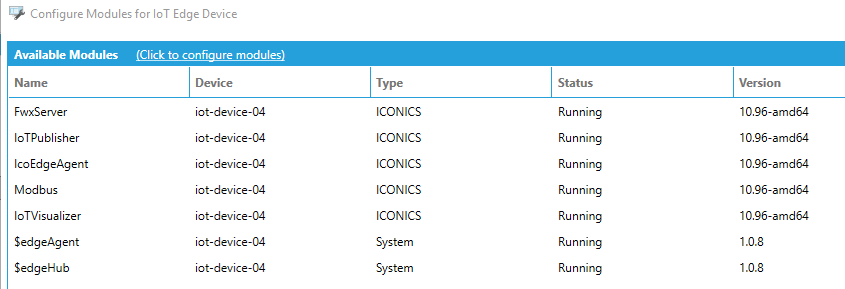

Available Modules Populated
Available Modules
(Click to configure modules) - Click this link to configure a module within this window. This advances the window to the next set of properties, as shown below.

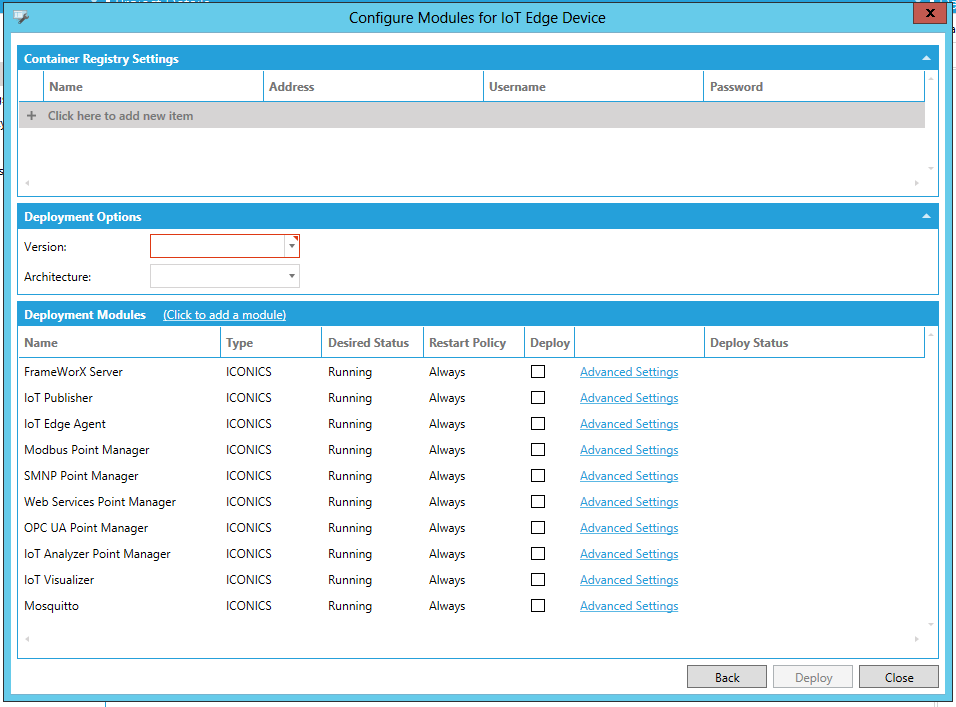

Configure Modules for IoT Edge Device Window - Additional Properties
Container Registry Settings
+ Click here to add new item - Click this link to add a new container registry. You can then enter a Name, Address, Username, and Password in the respective column fields.
Deployment Options
Version -Use the pulldown menu to select the ICONICS product version number associated with the device settings.
Architecture - Use the pulldown menu to select the architecture associated wit the device settings.
Deployment Modules
(Click to add a module) - Opens the Module Settings properties.
The Deployment Modules provides a Name, Type, Desired Status, Restart Policy, Deploy, Advanced Settings, and Deploy Status for each module.
Click on the checkbox in the Deploy column for each module you wish to deploy. Clicking the Advanced Settings link in any module's row opens the Module Settings for that module.
Remove existing modules if they are not selected - Click this checkbox if you wish to delete any modules from this list that you have not selected them for deployment.
Once you have made your settings, click on the Deploy button, then Close in order to return to the Workbench.
