The Series Tab allows you to add or remove data as a series and then set that series' properties.

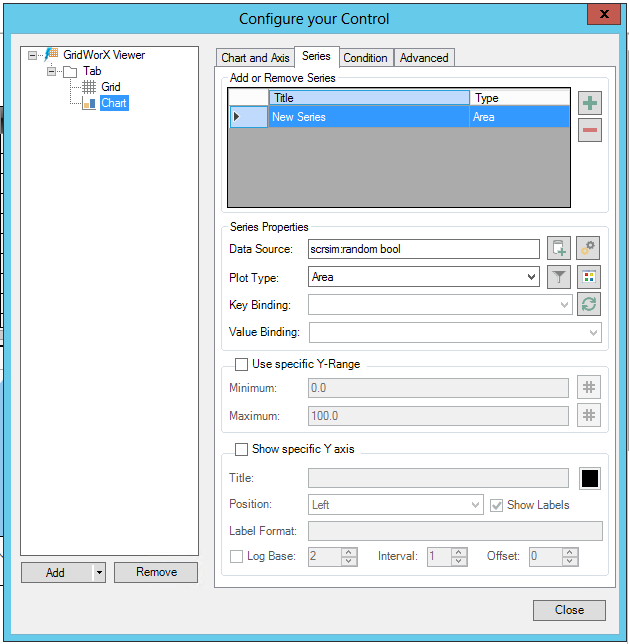

A GridWorX Chart's Series Tab
Add or Remove Series - Click the plus sign [+] to access the data browser. Once you have selected the source of your series of data, it will appear in this section. You can click on the minus sign [-] to remove a previously selected series. Clicking the Palette button
allows you to select from pre-set color palettes for your series in the chart.
Series Properties
Data Source - Enter the tag used to retrieve the values for the series. Click on the
button to open the Data Browser and navigate to your selected data source. Click on the
button to open the Series advanced settings Window.
Plot Type - Use the pulldown menu to select from Area, Bars, Line, Spline Area or Spline. Click on the
button to open the 'Filter configurator' window to set any filter conditions. Click on the

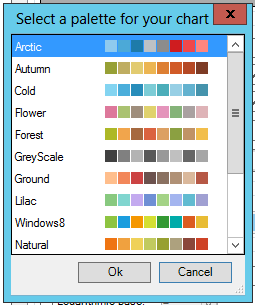

to open the 'Select a palette for your chart' window and select from the preset color palettes.
Key Binding - When activated, use the pulldown menu to select the key binding for the Series.
Value Binding - When activated, use the pulldown menu to select the value binding for the Series.
Use specific Y-Range - Click this checkbox in order to explicitly specify a range for the Y Axis. Once selected, you can enter the Minimum and Maximum of the range in the text entry fields. You can click on the # button for either field to open the Data Browser and navigate to the data source for either value.
Show specific Y axis - Show or hide the Y axis
Title - Enter a title for the Y axis in the text entry field. Click on the nearby box to open the Color window to select a color for the title.
Position - Y axis alignment. Use the pulldown menu to select from Left or Right.
Show Labels - True to show labels on the Y axis.
Label Format -Enter the label format for the Y axis in the text entry field.
Log Base -True to use logarithmic values on the Y axis. Once active, you can enter the logarithmic base in the nearby text entry field or use the up/down arrow buttons.
Interval -Label interval. Once active, enter a value in the text entry field or use the up/down arrow buttons.
Offset -Label offset. Once active, enter a value in the text entry field or use the up/down arrow buttons.
