Fault Diagnostic Tab

Once you have added the FDDWorX tab to the asset's Equipment form in AssetWorX (and then added faults through the Fault Definitions tab) you can add Diagnostic Symptoms Mappings. The image below shows the initial state of the Fault Diagnostic tab within the FDDWorX tab within the selected asset's properties.

Note: This tab is also available for equipment classes. All equipment classes are defined in AssetWorX in the Equipment Classes node. In AssetWorX, you can define and use equipment classes as templates for creating nodes in the asset tree. You can also use aliases in your equipment classes; these aliases will prompt you for actual properties for equipment as you use the equipment classes to define nodes in the asset tree. For more information, refer to the Introduction to Equipment Classes (Templates) and Creating Equipment Classes for Use as Templates topics.

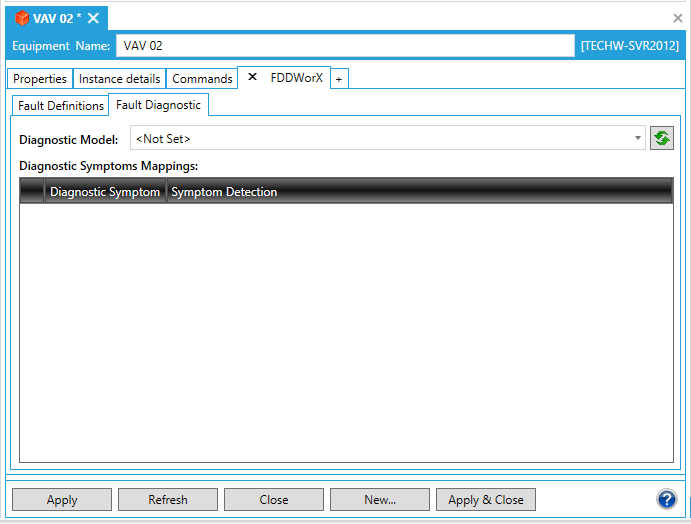

Fault Diagnostic Tab in the FDDWorX Tab in the Equipment Form in AssetWorX

To Select a Diagnostic Model

If you have already created at least one Diagnostic Model in the FDDWorX provider in the Workbench, you can select one by clicking on the pulldown menu at the top of the tab window, as shown below.

If you selected an existing diagnostic model, you'll notice that its Symptoms now populate the Diagnostic Symptoms Mappings grid within the Fault Diagnostic tab, as highlighted below. You can now set a Mapping Type, either Alarm or Expression, for each Diagnostic Symptom.

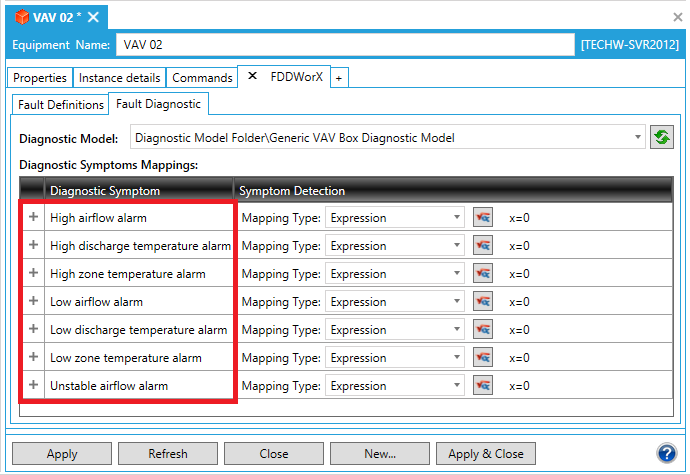

Populated Diagnostic Symptoms in the Fault Diagnostic Tab

To associate Mapping Types to Diagnostic Symptoms, click on the Mapping Type pulldown menu to the right of your selected Diagnostic Symptom, as shown below. Here is where you can select from either an Alarm or Expression.

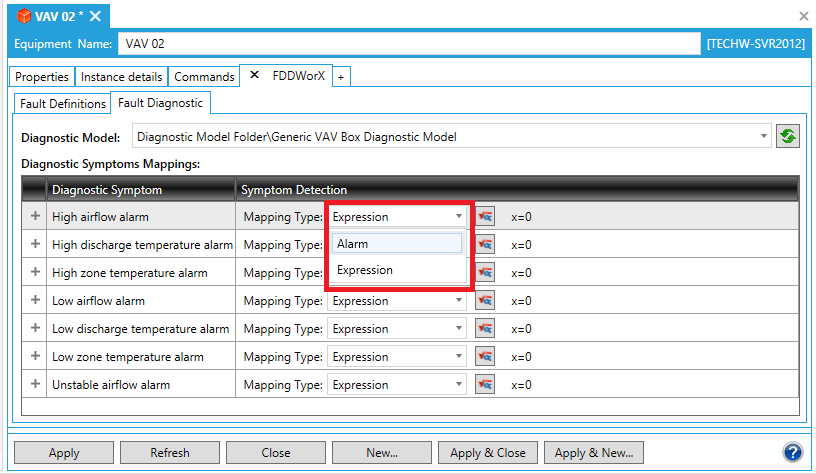

Selecting a Mapping Type

Alarm Mapping Type

Once you have selected Alarm as the Mapping Type, the Fault Diagnostic tab will update accordingly, as shown below.

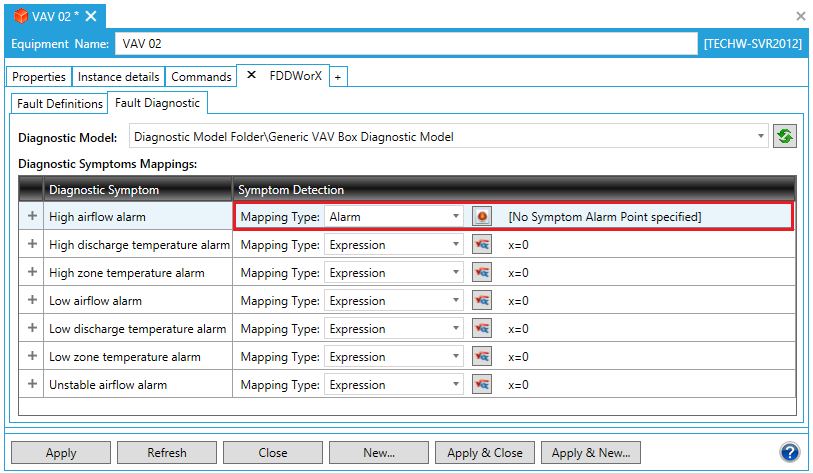

Alarm Mapping Type Selected/Settings Updated

Clicking on the button opens the Alarm Subscription window for the selected Diagnostic Symptom, as shown below.

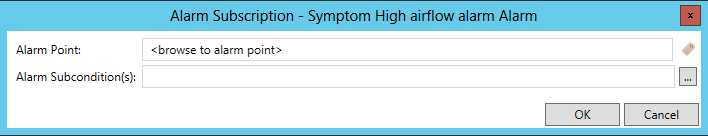

Alarm Subscription Window

Alarm Point - You can enter an alarm point directly into the text entry field or click on the button to open the Data Browser to navigate to your selected alarm point.

Alarm Subcondition - You can enter an alarm subcondition directly into the text entry field or click on the ellipsis button [...] to open the Device Subcondition Name window, shown below. Select from either Digital, Lo, LoLo, Hi, or HiHi. Click OK to return to the Alarm Subscription window.

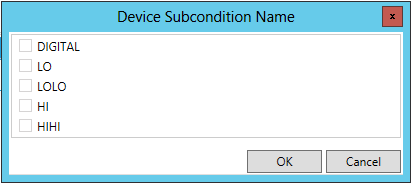

Device Subcondition Name Window

Click OK to close the Alarm Subscription window.

Your added Symptom Detection with Alarm Point and Alarm Subcondition will then appear in the Diagnostic Symptom Mappings, as shown below.

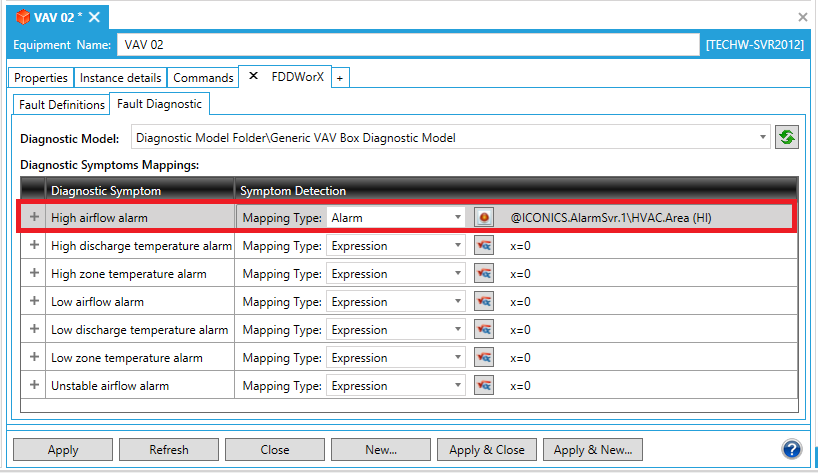

Newly Added Alarm Mapping Type Symptom Detection

If you are only adding Alarm Mapping Types, proceed to step 8.

Expression Mapping Type

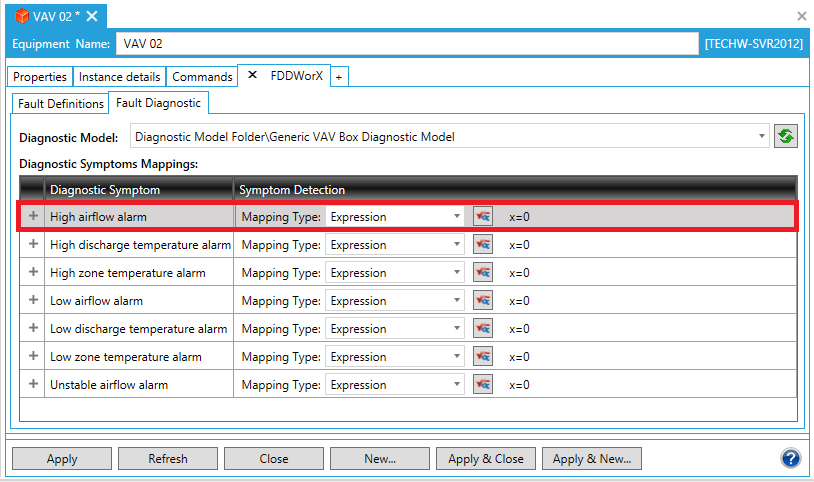

Once you have selected Expression as the Mapping Type, the Fault Diagnostic tab will update accordingly, as shown below.

Alarm Mapping Type Selected/Settings Updated

Clicking on the button opens the Expression window for the selected Diagnostic Symptom, as shown below.

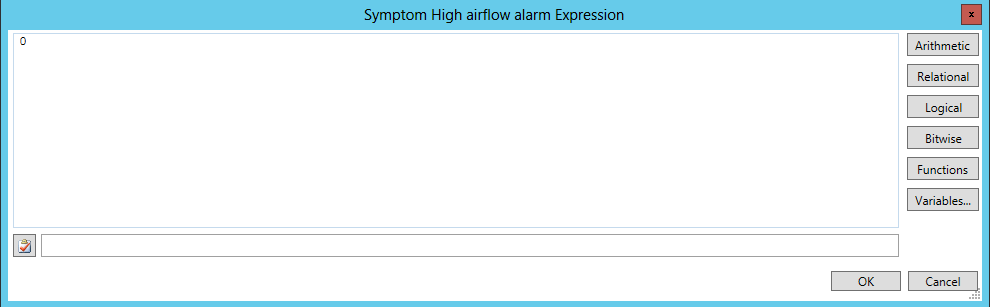

Expression Window

This you to use Expression Editor options (Arithmetic, Relational, Logical, Bitwise, Functions, and Variables). The Check Syntax button [] helps to make sure you have constructed your expression correctly. Any related error/suggestions will appear in the nearby text entry field. Clicking on the Variables button opens the Data Browser, allowing you to search for a data source to use within your expression.

Once you have completed constructing your expression, click OK to close the Expression window.

Your added Symptom Detection with an Expression will then appear in the Diagnostic Symptom Mappings, as shown below.

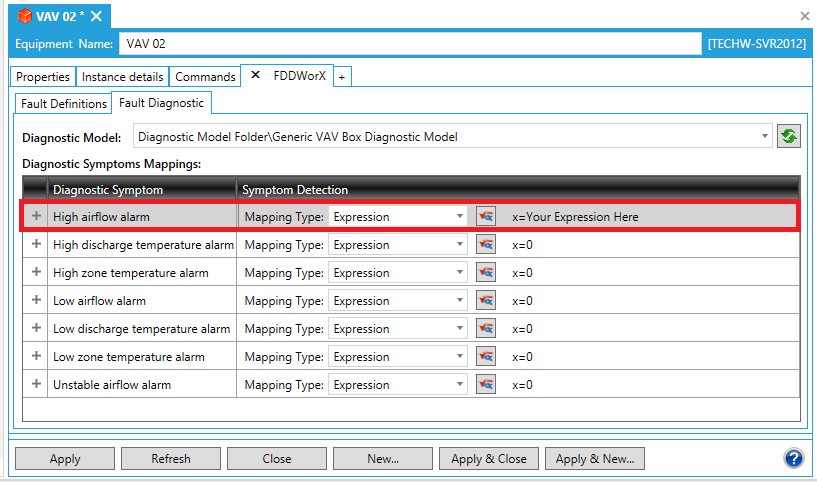

Newly Added Expression Mapping Type Symptom Detection

In order to save the changed status of the Fault Diagnostic Tab (with the newly completed Symptom Detection Mappings), you must then either click on the "Apply" button at the bottom of the tab window within the Project Explorer (and can then proceed to make additional changes to the same Fault Diagnostic) OR click on "Apply & Close" to save your settings and then return to the main Project Explorer by closing the tab OR click on "Refresh" to update the Fault Diagnostic tab itself OR click on "Reset" to return the state of the Fault Diagnostic tab to the last saved settings OR click on Apply & New to save the current settings while creating a new fault diagnostic model/mappings OR click on Add New... to change the settings for an additional asset.
