Energy AnalytiX in auto-configuring energy related entities will utilize a certain naming convention schema which will facilitate easy filtering on energy related AssetWorX properties along with the utilization of advanced array functions in Hyper Historian.
For energy meters the related naming convention for asset equipment properties related to energy meters is as follows:

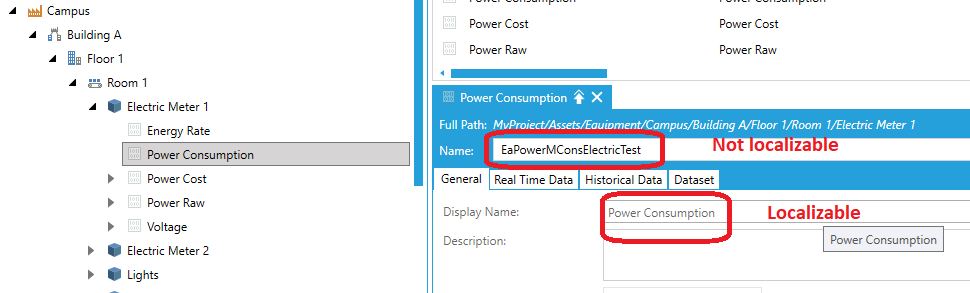

In General...
Equipment property naming convention is hard-coded and not localizable.
Equipment property display name is localizable.
Asset Equipment Property Naming
The naming conventions for energy assets are as follows:
Ea prefix will be added to all exposed equipment properties on behalf of Energy AnalytiX.

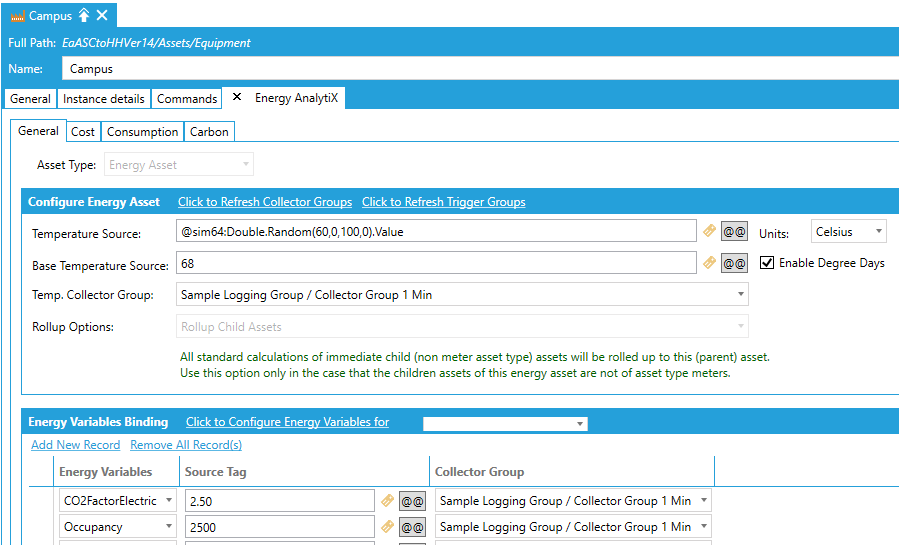

Sample Energy Asset Configuration
Sample Naming Convention for Temperature Based Calculations
They are optional and if defined Energy AnalytiX will create equipment properties for:
Temperature source
Base temperature
Heating degree days
Cooling degree days
Note: For heating and cooling degree days calculations, we will follow the approach as outlined at https://www.degreedays.net/introduction.

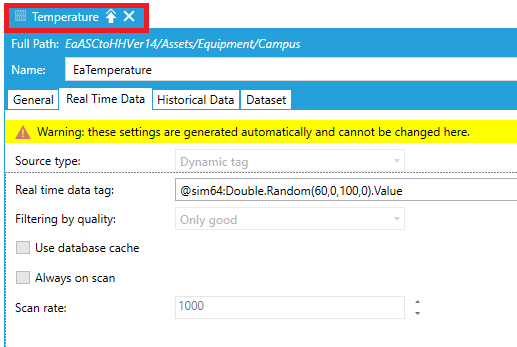

Sample Naming Convention for Temperature
Temperature: Ea + Temperature

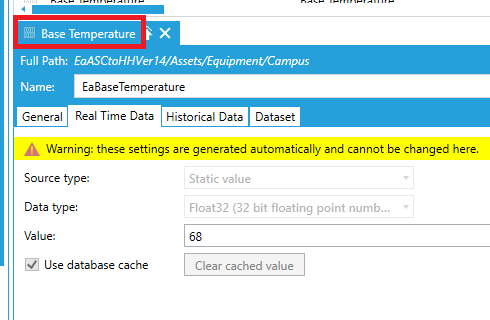

Sample Naming Convention for Base Temperature
Base Temperature: Ea + Base + Temperature

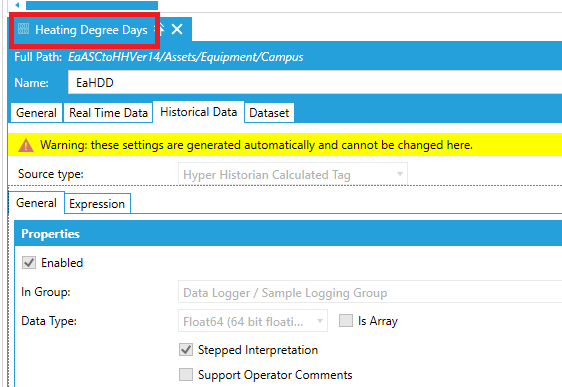

Sample Naming Convention for Heating Degree Days
Heating Degree Days: Ea + HDD

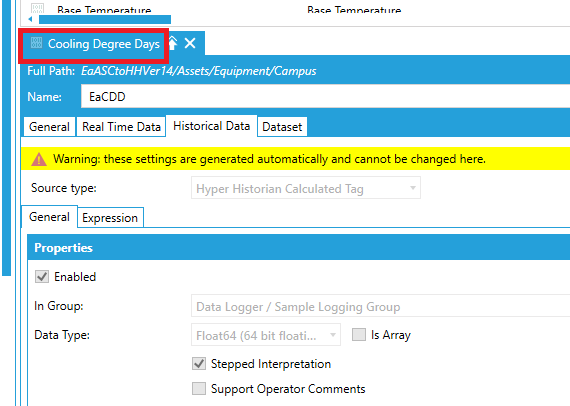

Sample Naming Convention for Cooling Degree Days
Cooling Degree Days: Ea + CDD
They are optional and, if defined, Energy AnalytiX will create equipment properties for:
Raw tag for storing budgeted cost value
Budgeted Cost calculation
Energy Cost (of energy consumption)

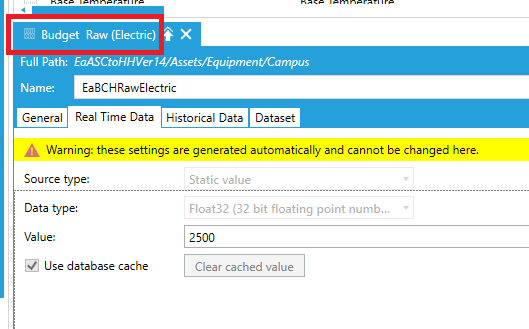

Sample Naming Convention for Budgeted Cost Raw Tag
Budgeted Cost Raw Tag: Ea+ BCH + Raw + meter type name (no spaces)

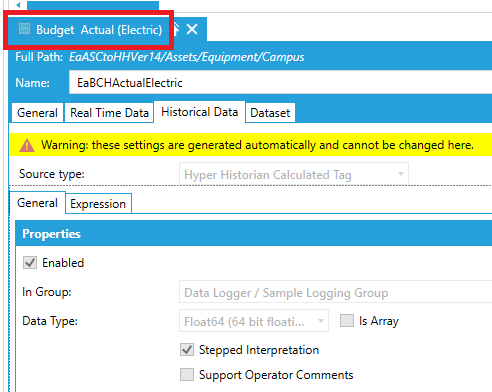

Sample Naming Convention for Budgeted Cost Calculation
Budgeted Cost Calculation: Ea+ BCH + Actual + meter type name (no spaces)

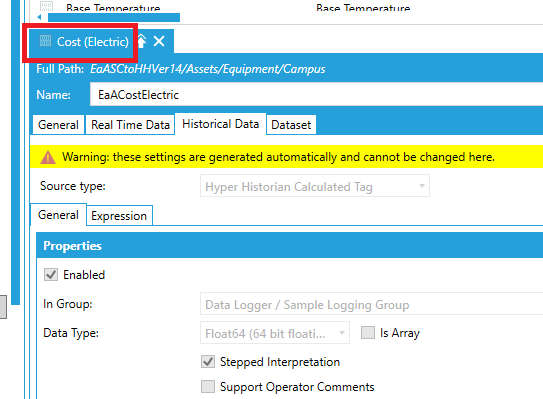

Sample Naming Convention for Energy Cost Calculation
Energy Cost Calculation: Ea+ A + Cost + meter type name (no spaces)
They are optional and, if defined, Energy AnalytiX will create equipment properties for each type of energy calculation defined.
Sample Naming Convention for Energy Calculations (Standard)
Energy Standard Calculation: Ea+ A + Calculation Name (no spaces) + meter type name (no spaces)
Sample Naming Convention for Energy Calculations (Derived)
Energy Derived Calculation: Ea+ A + Calculation Name (no spaces) + meter type name (no spaces)
They are optional and, if defined, Energy AnalytiX will create equipment properties for each type of energy calculation defined.
Sample Naming Convention for Carbon Calculations
Energy Carbon Calculation: Ea+ A + Calculation Name (no spaces) + meter type name (no spaces)
