Energy AnalytiX Runtime Overview



Energy AnalytiX at a Glance



Energy AnalytiX classifies the collected data by functionality, including:

Internally, it creates interval-based data both for meter summaries as well as energy calculations for key periods such as:



ยท       Base Summary Interval (e.g., every 15, 20, or 30 minutes, etc.)



The above interval defines the output resolution of energy calculations such as consumption, cost or carbon.



In addition, Energy AnalytiX utilizes energy variables to produce rich energy-related analytical data, which can be easily displayed in built-in charts and reports as well as third-party analytical tools such as Power BI.



In order to facilitate advanced analytical capabilities, Energy AnalytiX utilizes several key concepts at the provider configuration level.



Expanded Energy AnalytiX Provider in the Project Explorer in the Workbench



These key concepts provide rich analytics results and allow Energy AnalytiX to support advanced data insights and reports.

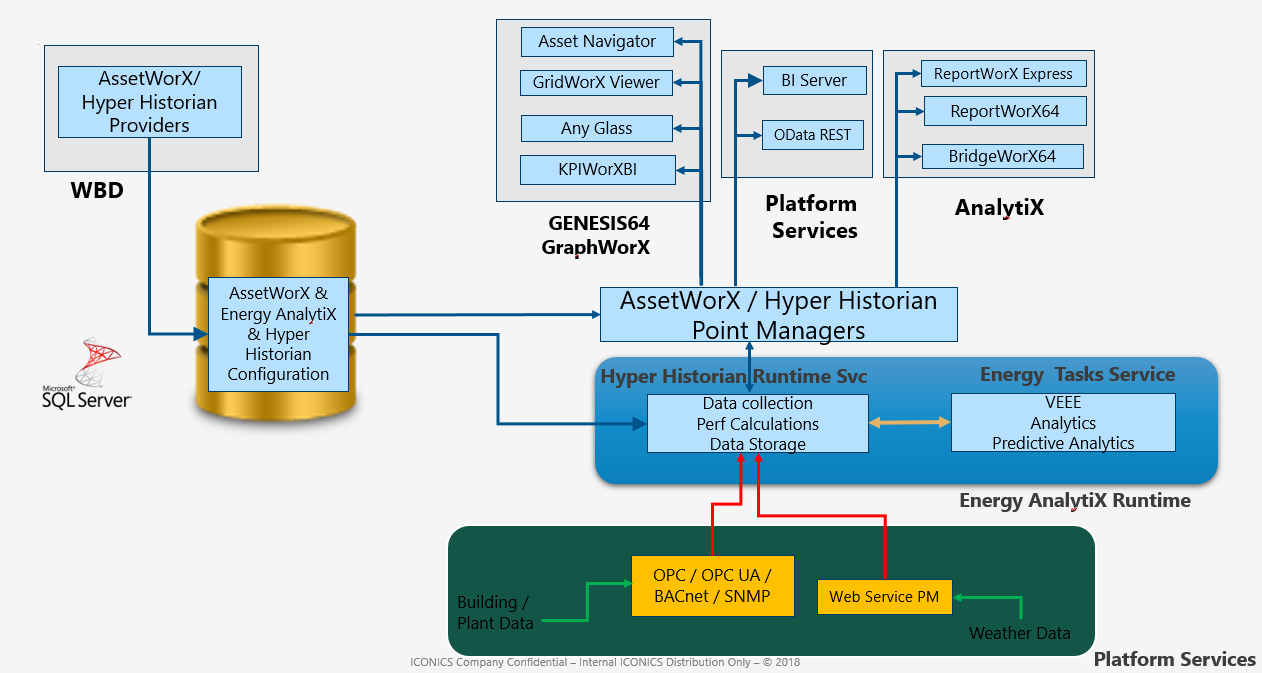

Energy AnalytiX Internals
