Grids have a feature called Status Icons, which you set on the Recipe Grid Control configurator's Status Indicator tab. Status icons are icon sets that appear in the left hand column. They give an operator a visual indicator of the trend in the grid. The icons swap in and out as the grid changes. Status indicators can be any set of icons you choose: arrows, flags, faces, symbols, or a set you create.
Status icons provide operators a quick way to gauge the conditions they see on their display.

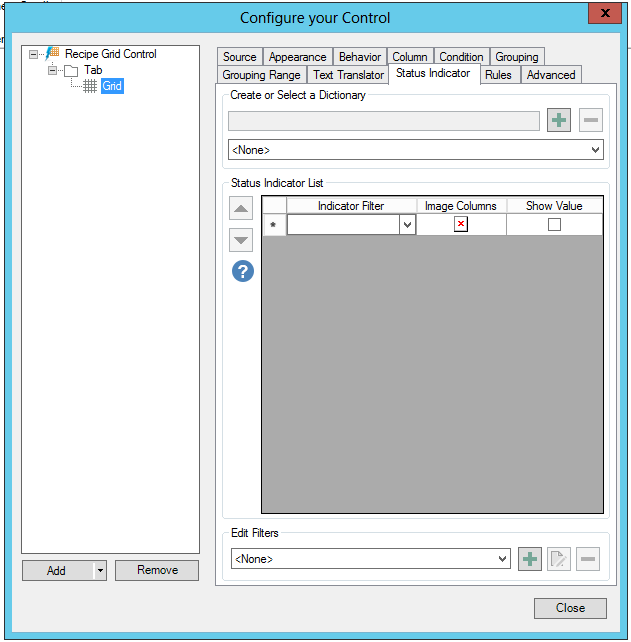

Status Indicator Tab in Grid Properties in Recipe Grid Control Configuration
