Column Tab

Each grid configuration contains one or more columns. A column can contain multiple values. A column corresponds to the values or data points that you want to analyze in a grid. The columns that are defined for a configuration appear as child elements of the configuration in the tree control.

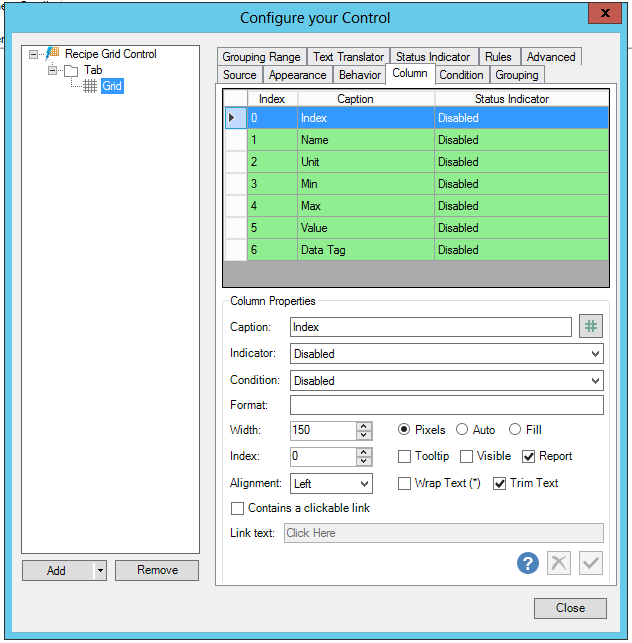

Column Tab

Column Properties

Selecting a row within the column view section in the top of the Column tab allows you to set the following items:

• Caption - Enter a caption or click on the button to open the Data Browser and navigate to your selected data.

• Indicator - Use the pulldown menu to select from either Disabled, Access Level Translation or User Access Level Translation.

• Condition - Use the pulldown menu to set the condition for the Status Indicator.

• Format - Use the {0} placeholder for the original value when you want to format string values. Otherwise, you can use double or date time format. For additional info, see "Custom Date Time Formats" (https://msdn.microsoft.com/library/8kb3ddd4%28v=vs.110%29.aspx) or "Custom Numeric Formats" (https://msdn.microsoft.com/library/0c899ak8(v=vs.110).aspx).

• Width - Enter a column width in the text entry field if you also select Pixels or Fill. If you select Auto, the column width will be set automatically.

• Index - Enter the index in the text entry field.

• Tooltip -

• Visible -

• Report -

• Alignment -

• Wrap Text -

• Trim Text -

• Contains a clickable link - Click this checkbox if the column will contain a clickable link. Once checked, you can then enter the link the in the Link text text entry field.
