The features on this page require a GENESIS64 Advanced license and are not available with GENESIS64 Basic SCADA . |
|
|
The features on this page require a GENESIS64 Advanced license and are not available with GENESIS64 Basic SCADA . |

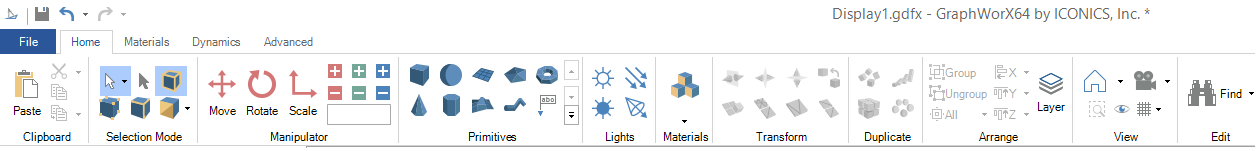

The 3D environment has its own File menu, and a ribbon with the following tabs: Home, Materials, Dynamics, and Advanced. Double-clicking on a ribbon tab opens and closes the ribbon bar.
|
|
Note: Object properties are set on the Properties tab. Displaying the Properties tab at all times is key to working with 3D views. To display properties, go to the 2D space, and from the View tab’s Show/Hide section, make sure the Properties check box is selected. |
The GraphWorX64 File menu looks like the following. Note the Quick Access Toolbar above it.
Home contains commands and options for creating and manipulating 3D graphics.
Materials is used to apply a facet to an object’s front or back, or to wrap an object in a material.
Dynamics contains dynamic objects, and dynamic actions
Advanced is used for collision detection and polygon reduction.
