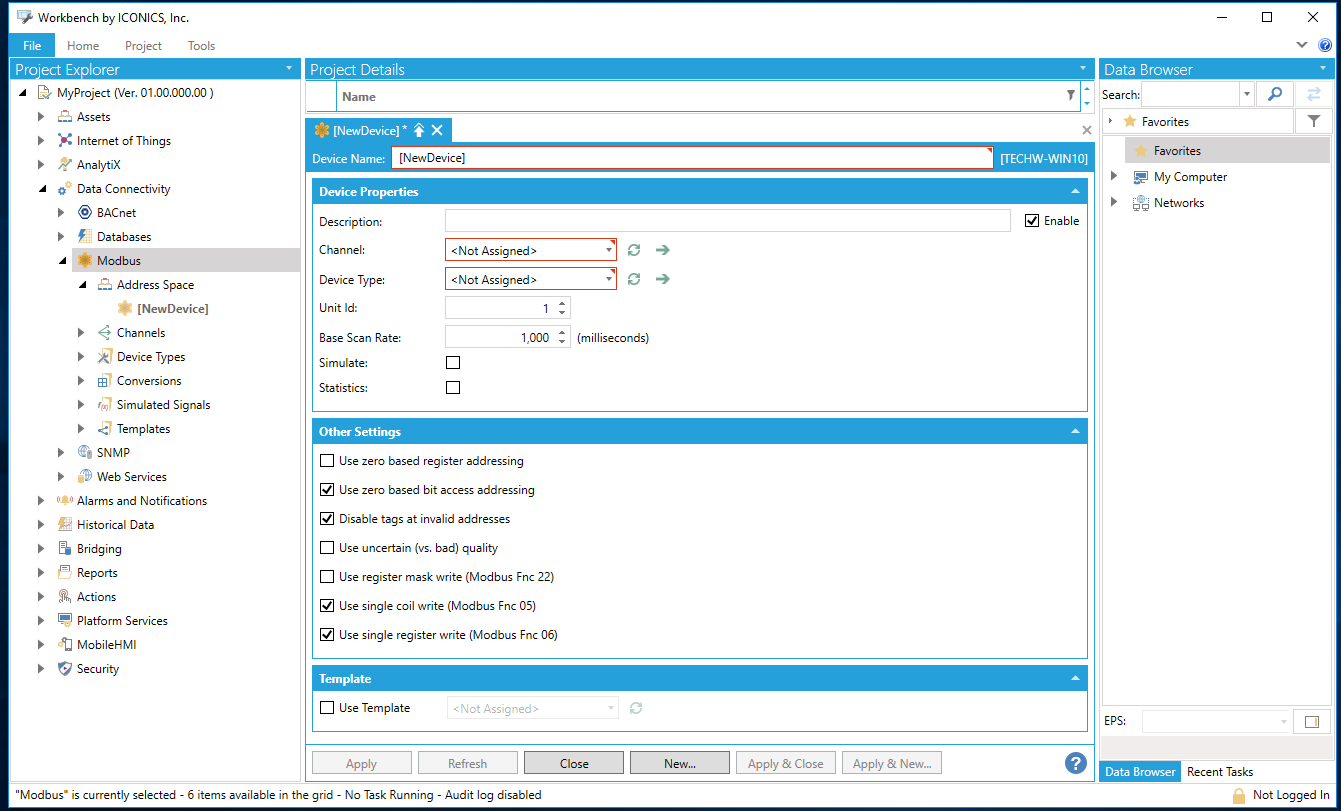

The Address Space tree control in the Modbus Configurator, shown in the figure below, sets the properties and connection parameters for the following items:
Data items can be organized hierarchically. It is similar to organizing directories and files on your computer's hard disk. The Modbus Configurator offers several levels of hierarchy. The Modbus Configurator module uses the terms Folder and Data Item. A folder can contain additional folders and also data items. The data items are always the branches in the tree control hierarchy.
The hierarchical structure of the folders and data items helps to organize the devices and tags, as shown below.
Address Space
