SAP Database Connection

This topic is a continuation of the process described in the Connecting to Open Databases topic. Follow these steps to establish an SAP database connection.

Note: If you previously created a connection in ReportWorX or BridgeWorX, you can re-use that connection here.

To Connect to an SAP Database:

Open the Workbench. Expand your project folder, then the Data Connectivity node, then the Databases node.
Right-click the SAP Connections node then click on Add SAP OLEDB Connection, as shown below.

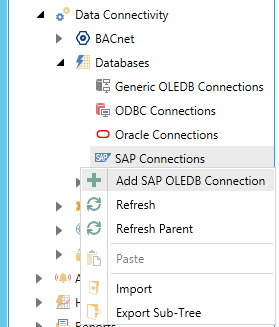

Add SAP OLEDB Database Connection in Project Explorer

-OR-

Select the SAP Connections node, then click on the Add SAP OLEDB Connection button, shown below, in the Edit section of the Home ribbon in the Workbench.

Add SAP OLEDB Connection Button

This opens the Database Connections properties, shown below, in the right side of the Workbench. Enter a name for the Database Connection in the text entry field.

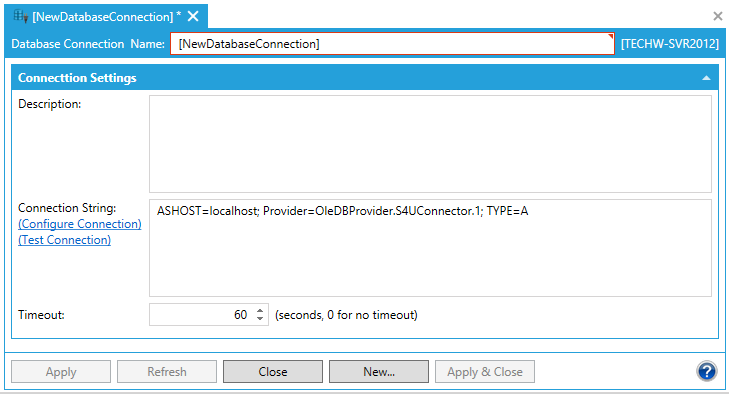

SAP OLEDB Connection Properties

Enter a Description in the text entry field.

In Connection String, you can click on the Configure Connection link, which will open the Oracle Native Connection String window, similar to the one shown below. Once you have entered the requested info, click OK to return to the connection properties.

Connection String Window

The Test Connection link allows you to check the connection parameters for possible errors.

Enter a Timeout (in seconds) for the ODBC Connection in the text entry field. "0" signifies no timeout.

Click Apply to save your changes and Close to exit from the connection properties.
