The features on this page require a GENESIS64 Advanced license and are not available with GENESIS64 Basic SCADA . |
|
|
The features on this page require a GENESIS64 Advanced license and are not available with GENESIS64 Basic SCADA . |
To Create a New SNMP Device:
Right-click on a network folder within the SNMP tree control of the SNMP Connector and select Add Device from the pop-up menu, as shown in the figure below.

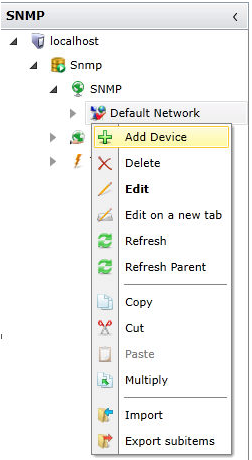

Creating a New Device within the Project Explorer
-OR-
Select the Add Device Icon on in the Edit Section of the Home Ribbon.
The properties dialog for the new device appears in the right-hand pane of the SNMP Connector within the the Workbench, as shown in the figure below.

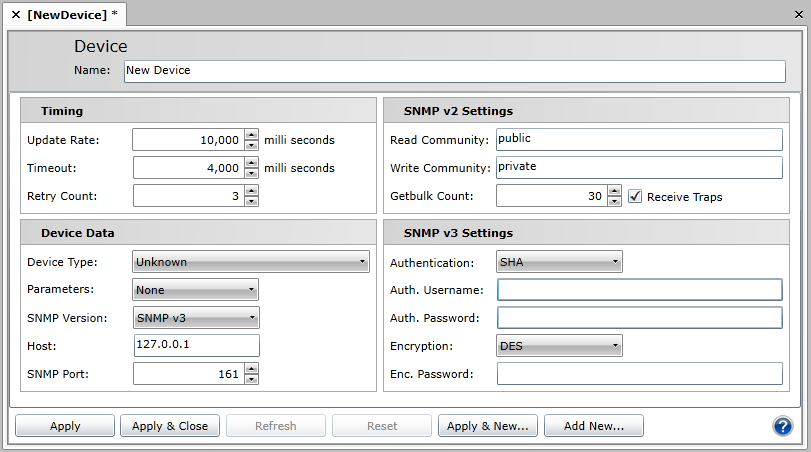

Setting the Properties for the New Device
In the Name field, type a name for the new device. For additional settings info, see Device Properties in SNMP Connector.
When you have finished configuring the device properties, click the Apply button. The new device appears under the SNMP tree control.
|
|
Note: For each new device, a Heartbeat Tag is automatically created. |
