Synchronization Tasks Management

To Set Up Synchronization Tasks Management:

1. Start the Workbench, then expand your project. Next, expand the Historical Data node to show the Hyper Historian node. Expand the Hyper Historian node to show the System Administration node.

2. Expand the System Administration node in the navigation tree and right-click on the Synchronization Tasks Management node, as shown below, then click on Edit or Edit on a new tab.

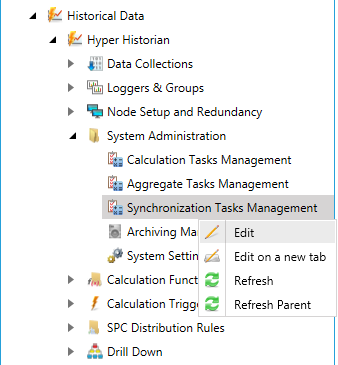

Editing Synchronization Tasks Management from Project Explorer

-OR-

Select Synchronization Tasks Management, then click on the Edit button, shown below, in the Edit section of the Home ribbon in the Workbench.

Edit Button

3. This opens the Synchronization Tasks Management properties window, shown below, beneath the Project Details section in the Workbench. Enter a name in the Hyper Historian Synchronization Tasks Storage Management Name text entry field.

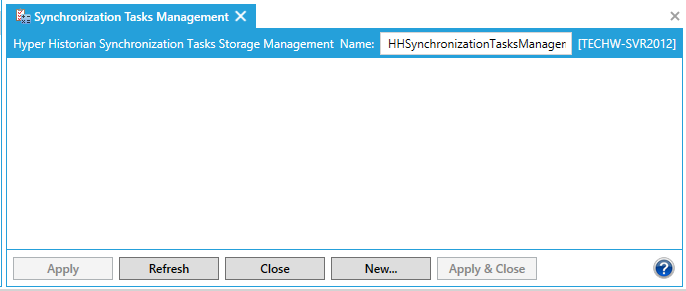

Synchronization Tasks Storage Management Properties
