To Back Up a Device:
From the Workbench, expand your Project in the Project Explorer, then expand Data Connectivity.
You'll see the BACnet node of the Project Explorer, as shown below.
BACnet Provider in the Workbench

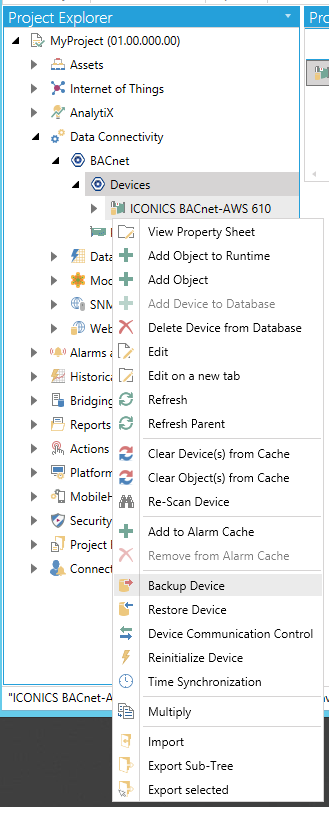

Expand the BACnet node and then the Devices node. Right-click on the device you wish to back up, then click on Backup Device, as shown below.
Backup Device from Project Explorer
-OR-
Select the device you wish to back up, then click on the Backup Device button, shown below, in the Tools section of the Home ribbon in Workbench.
Backup Device Button

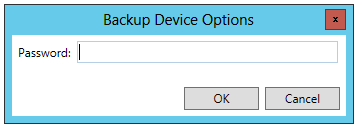

The Backup Device Options window appears. Enter the device's password to start the backup procedure, then click OK.
Backup Device Options window
The following window will then appear to let you know how many files were copied during the backup.
Backup Device Options - Copied Files
