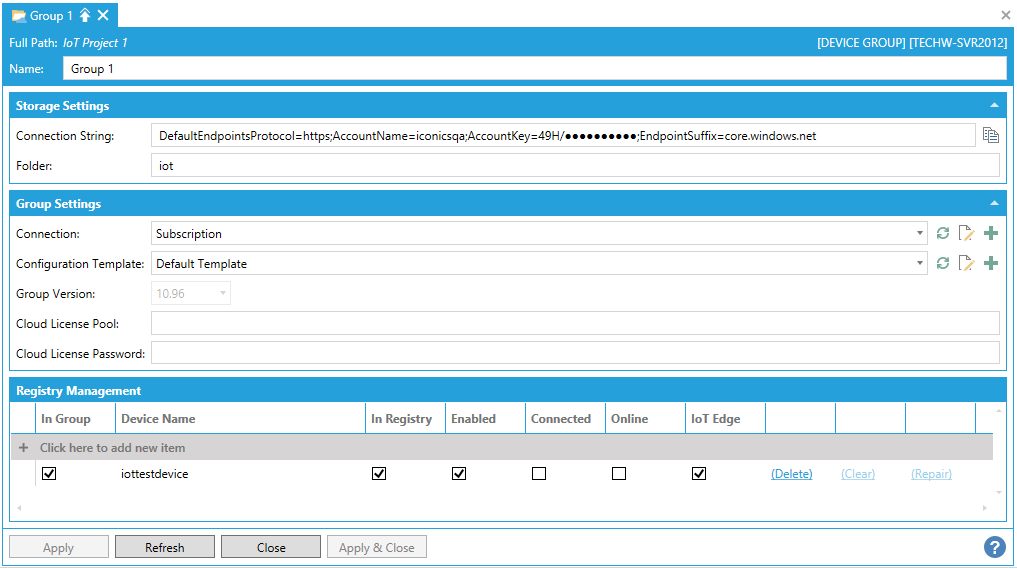

Device Group Settings

Storage Settings

Connection String -The storage connection string used to upload configuration packages. If this field is not automatically filled, copy the storage connection string from your cloud services provider (e.g. Azure) in the text entry field.
Folder -The folder where the package will be uploaded. If this field is not automatically filled, enter the folder name in the text entry field.

Group Settings

Connection -Use the pulldown menu to select from existing connection/subscriptions. Click on the button to refresh the list. Click on the to edit the selected connection/subscription properties. Click on the button to create a new subscriber connection.
Configuration Template -Use the pulldown menu to select from existing templates. Click on the button to refresh the list. Click on the to edit the selected template properties. Click on the button to create a new template.
Group Version -If activated, use the pulldown menu to select the ICONICS product version.
Cloud License Pool -Enter the cloud license pool from your cloud services provider (e.g. Azure) in the text entry field.
Cloud License Password - Enter the cloud license password from your cloud services provider (e.g. Azure) in the text entry field.

Registry Management

+ Click here to add new item -Click this link to add a device item to the Registry Management list.
In Group -Click this checkbox if the device is to be included in the selected group.
Device Name -Enter a device name in the text entry field for this column.
In Registry -Designates if the device is in the registry. Note: This field may not be editable.
Enabled -Click the checkbox to enable the device within the group.
Connected -Designates if the device is connected. Note: This field may not be editable.
Online - Designates if the device is online. Note: This field may not be editable.
IoT Edge -Designates if the device is an IoT Edge device. Note: This field may not be editable.
(Delete) -Delete the device from the group.
(Clear) -Clear the set device properties from the Registry Management list.
(Repair) -Repair the set device properties within the Registry Management list.
