The MIB tree control, shown in the figure below, is used to load and unload MIBs from the database. The MIB tree is a dictionary that contains the translations between numbers and names (and all the information about the names). Unlike traditional dictionaries, the structure of this one is a tree, because of the tree structure of the SNMP data. This structure makes it easier to find an item inside this MIB dictionary.

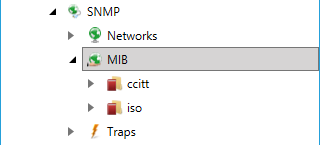

MIB Tree Control in SNMP Connector in the Workbench
Features of the MIB tree control include the ability to:
Create and edit MIB items
Create folders for MIB items
To configure MIB settings, expand the MIB node in the Project Explorer. The control is populated by the translations retrieved by the selected MIB files, and there is a list of files parsed.
Right-click on an MIB folder in the Project Explorer, then select Edit.
Editing MIB Settings via the Project Explorer
-OR-
Highlight the MIB folder in the Project Explorer and then click on the Edit button, shown below, in the Edit section of the Home ribbon in the Workbench.
Edit Tool
You will then be able to see/edit the MIB Folder settings in the right pane of the Workbench.

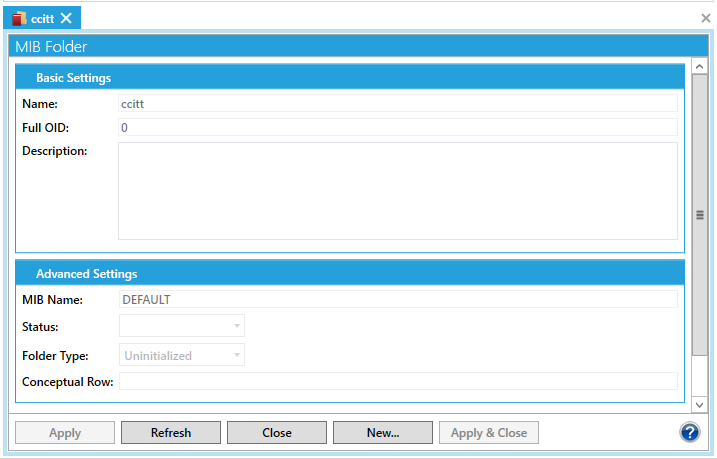

MIB Folder Window
See also:
Management Information Base (MIB)
