Hyper Historian Tag

To Create a Hyper Historian Tag:

1. Start the Workbench, then expand your project. Next, expand the Historical Data node to show the Hyper Historian node. Expand the Hyper Historian node to show the Data Collections node.

2. Right-click the Data Collection node in the navigation tree, or any of its sub-nodes, and select Add Tag, as shown in the figure below.

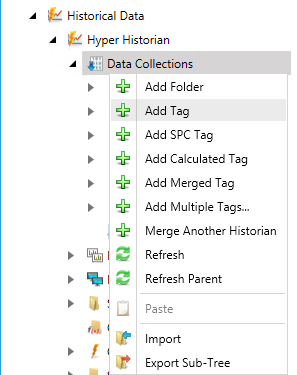

Add Tag from the Project Explorer

-OR-

Select the Data Collections node in the Project Explorer, or any of its sub-nodes, then click on the Add Tag button, shown below, in the Edit section of the Home ribbon in the Workbench.

Add Tag Button

3. This opens the Hyper Historian Tag properties window, shown below, beneath the Project Details section in the Workbench. Enter a name in the Hyper Historian Tag Name text entry field. The name should be short. It is used as a part of the browse name and, for that reason, you want to keep it short. The Display Name field, not the name field, is where you want to provide lengthy detail so that the Name field is not long. Tags are logged with the browse name that you provided in the Name field, so you want to keep the name short.

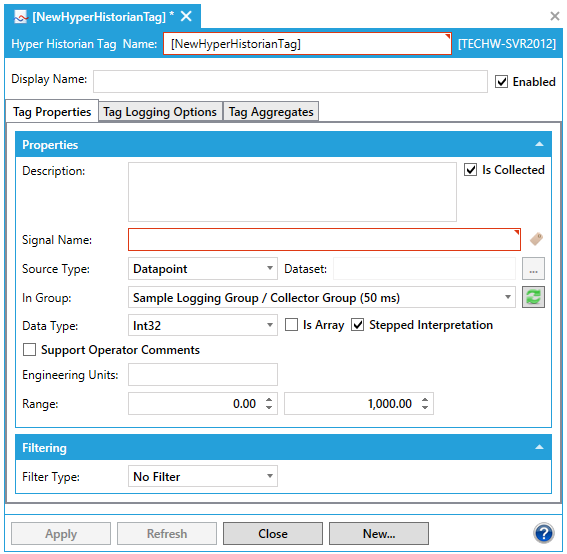

Hyper Historian Tag Properties

4. Optionally, you can enter a Display Name which appears for the Hyper Historian tag in the Project Explorer. Use the display name to supplement the shortened tag name that you entered in the Name field. If a Display Name is not provided, the Name appears in the Project Explorer instead.

5. The Enabled button specifies whether data for the tag is logged. When disabled, any aggregate associated with the tag will not be logged either.

Tag Properties Tab

6. The Description field can contain a detailed description of several lines for the Hyper Historian tag. Use the description to provide a complete definition of the tag.

7. The Is Collected checkbox is selected by default. This means that the Hyper Historian tag's data is collected by the collector from a signal. However, if the tag's data is not collected using a signal, but is collected and written directly to the logger using some other means, such as a TrendWorX64 Viewer or a .CSV file via MergeWorX, de-select the Is Collected checkbox. As a result, the tag's Signal Name field becomes disabled, as does the Filtering field and (on the Tag Logging Options tab, described later in these steps) the Log to Disk options.

8. For the Signal Name field, select the signal (that is, the tag or point) to be collected by clicking the button and browsing for the OPC tag whose data is to be collected. If you leave this field empty, an exclamation point icon will remind you that you have to enter one. (Note that this field is not used if the Is Collected checkbox is empty.)

9. Select a Source Type for the data signal associated with the tag using the provided pulldown menu. The signal can come from a Datapoint [e.g. from GenClient (recommended for processing OPC DA and UDM data) or a FrameWorX Client (recommended for processing OPC UA and GridWorX data)] or a Dataset (recommended for processing BACNet data) or Dataset Generic.

10. If you select Dataset, leave the Dataset field blank if the data set contains only one value or a default set of column names, or enter the user-defined name that appears at the end of each column name in the dataset (for example, if your data set includes columns named Value_test and StatusCode_test, enter "test" in the Dataset field). You can click on the ellipsis [...] button to open the Dataset Configurator or Dataset Generic Configurator.

11. For the In Group field, select the group in which the tag should appear within the configuration database. Click on the refresh button in order to load the current list of groups.

12. Select the Data Type from the Data Type drop-down list. Options include: Native, Boolean, Int8, UInt8, Int16, UInt16, Int32, UInt32, Int64, UInt64, Float32, Float64, String, Duration and DateTime.

13. The Is Array checkbox allows you to set if the data type is an array.

14. Put a check mark next to Stepped Interpretation to enable this feature if it is desired. Stepped Interpretation is used primarily during playback, for interpreting the tag’s data values. This feature is applied only if you request a value for a certain point of time (in the Log to Disk option on the Tag Logging Options tab). The returned value will be the nearest older value available. In general, if the data comes from a discrete signal such as an on/off switch (or a Boolean data type), put a check mark in the Stepped Interpretation check box; but if data comes from a sine wave or analog signal, leave the box empty.

15. You can optionally click a check mark in the Support Operator Comments check box to allow operators to comment on the signal in displays. Later, as the tag’s data values play or replay in the Trend Viewer, you may want to be able annotate the tag’s data values as you see them trending before you. For example, maybe you want to note an operator action that altered the data slightly, or highlight a piece of data for analysis later. Putting a check mark in the Support Operator Annotations check box lets you do that. Such annotations are saved with the tag’s data in its logger file, which makes the annotations available in a replay, accessible to the Hyper Historian SQL Server Interface, and archived with the tag’s data.

16. Enter the Engineering Units.

17. Enter the Ranges for the High Limit and Low Limits in the provided text entry fields. The High and Low Limits are used by the filter algorithms (deadband filter and swinging door filter).

18. Optionally, you can select the type of Filtering to be used and enter the filter setting via the Filter Type pulldown menu. By default, No Filter is used.

• If you are using DeadbandThe Deadband filter in Hyper Historian is performed by the Collector on incoming data. It serves as the front-line for all of the filtering logic. The deadband filters out values based on difference of values of consequent changes – if the difference is below defined threshold, new value is ignored.

  Deadband configuration is straightforward:
  It can be either disabled or enabled

  If enabled, it is possible to configure its range as either of the following:
  As an absolute value (non-negative).
  As a percentage of value range (max - min) defined for the tag. The value configured is minimum difference between values to allow subsequent value. Actual range around base value spans both up and down (see example below).

  Deadband Filter Behavior
  filtering, set the threshold as either an Absolute or Percent and enter the value in the text entry field.

• If you are using Swinging DoorThe Swinging Door filter in Hyper Historian is implemented by the Logger on incoming values it receives from the Collector. It serves as the last-line of the filtering logic. The swinging door filters off values based on difference of consequent values from linear trend; if the difference is below defined threshold, new value is ignored.

  Swinging door is a generalization of a deadband filter. Swinging door filters off values following certain linear trend. It starts with one value (the first one is always forwarded to storage). Two tangents are considered, originating above and below base value in defined filter range. Tangents are effectively defined by second value in filter (see example). As subsequent values come in, tangents are adjusted to form geometrical region encompassing all values in filter so far.

  Geometrically, as long as tangents don’t intersect prior to base value (i.e. the region defined by tangents is not broadening – hence commonly used filter name), the filter is valid. When a new value causes the region to open up, the filter is flushed – the last value prior to the breaking one is dumped to storage and the filter is re initialized using that value and the breaking one.

  There are certain guaranties about maximum deviation of values filtered off (the difference of ignored value from stored trend can’t be higher than distance between tangent base points considered above and below base point).

  Filter configuration is similar to deadband’s:
  It can be either disabled or enabled

  If enabled, it is possible to configure its range as either of the following:
  As an absolute value (non-negative)
  As a percentage of value range (max - min) defined for the tag

  Besides these parameters, there are two additional ones:

  Minimum distance between values - If two subsequent values are closer (time-wise) than defined threshold, the new value is ignored

  Maximum distance of values - If distance between last stored value (physically) and incoming value is higher (time-wise) than defined threshold, the filter is flushed as if new value would be breaking one

  Swinging Door Filter Example

    filtering, set the threshold as either an Absolute or Percent and enter the value in the text entry field. Then, set both the Maximum Period and Minimum Period in the nearby text entry fields (in milliseconds).

19. Click the Apply button to enforce your selections for the Tag Properties tab.

Tag Logging Options

20. Go the Tag Logging Options tab. In the Log to Disk section, click on the Aggregate Type pulldown menu to select from All Samples, Max, Min, Avg, Std. Dev., Running Max, Running Min, Running Avg, Running Avg, Moving Avg, Moving Max, Moving Min, Totalizer or Most Recent On Time.

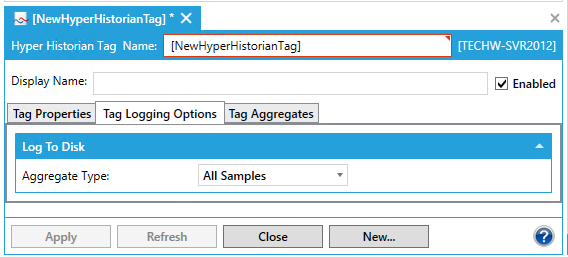

Tag Logging Options Tab

Tag Aggregates

21. Go to the tag's Tag Aggregates tab. In the Aggregates Configuration section, click on +Click here to add new item. You can then click on the Enabled checkbox in order to enable that item. Click within the Aggregate Group cel, which allows you to make a selection from the pulldown menu. In the Aggregate Type cel, use the pulldown menu to select from Interpolative, Average, Time Average (Interpolated Bounds), Sum, Minimum, Maximum, Minimum Actual Time, Maximum Actual Time, Range, Annotation Count, Count, Number of Transitions, Start, End, Delta, Duration Good, Duration Bad, Percent Good, Percent Bad, Worst Quality, Standard Deviation (N-1), Variance (N-1), Standard Deviation (N), Variance (N), Start (Bounds), End (Bounds), Delta (Bounds), Minimum (Bounds), Maximum (Bounds), Minimum Actual Time (Bounds), Maximum Actual Time (Bounds), Range (Bounds), Time Average, Total or Worst Quality (Bounds). In the Aggregate Name cel, it may auto-fill according to your previous settings, else you can enter a name in the text entry field. The same applies to the Display Name - as it may be autofilled or you can enter a different display name in the text entry field. The Override Sample Rate cel allows you to override the sample rate (set in the next column) by clicking on the checkbox. The Sampling Rate can be set if you click on the Override Sample Rate checkbox. Then, you can set the rate in hours, minutes, seconds and/or milliseconds.

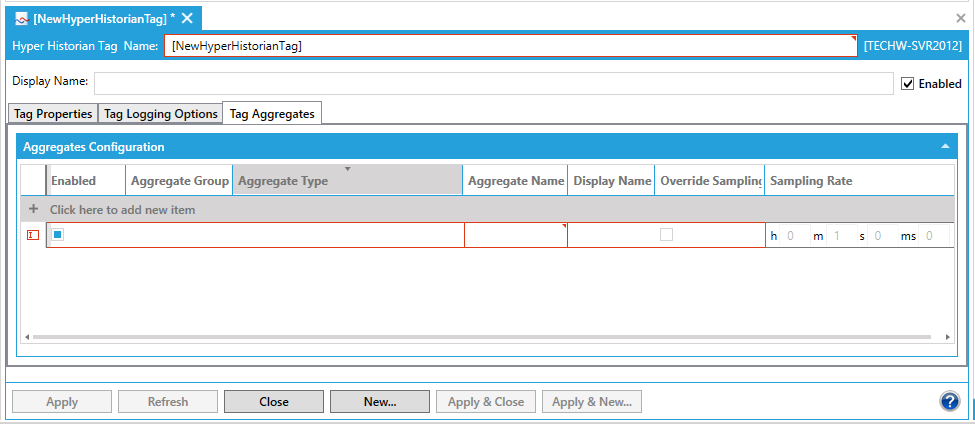

Tag Aggregates Tab

22. Once you have completed setting your tag properties, click on Apply. Your new tag will appear in your selected location in the Project Explorer.
