Weekly Tab (BACnet Schedule View)

The Weekly Tab of the Schedule Control (from a BACnet Schedule View configuration) Runtime (Calendar View) is used to configure any weekly recurring events. The recurrence pattern will be applied once the event is added to the calendar.

Weekly Tab in the Schedule Control (from a BACnet Schedule View configuration)

Double-click within your calendar (or click on the Edit Event button in the Schedule Control Runtime ribbon) to open an individual event's dialog box. You can also modify an existing event or create a new event (by clicking on the Create Event button).

• Start time - Enter a start time or use the calendar button () to select one.
• Data Type - Select a data type from the pulldown menu. Options include Boolean, Unsigned Integer, Integer, Real, Octet String, Character String, Bit String, Enumerated, Date, Time, or Object Identifier.
• Value - Enter a value applicable to the selected Data Type.

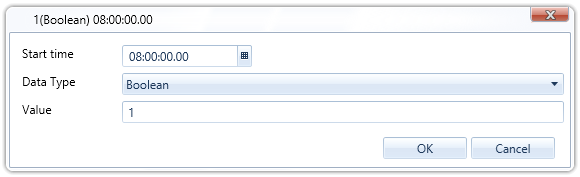

A BACnet Event's Dialog Box
