General Tab (ScheduleWorX View)

The General Tab of the Schedule Control (from a ScheduleWorX View configuration) Runtime (Calendar View) properties lets you set initial schedule information. You can edit information in the following tab sections:

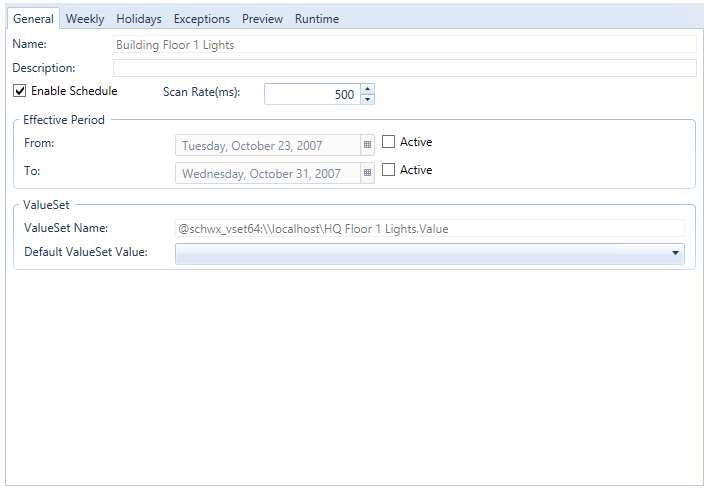

General Tab in the Schedule Control (from a ScheduleWorX View configuration)

Enter a Name - if one hasn't been provided via loaded schedule data already.
Enter a Description by filling in the text entry field.
Click the Enable Schedule checkbox to activate or deactivate the schedule from controlling the underlying resources. If enabled, you may optionally set up the Effective Period section of the screen.
Enter a Scan Rate for this schedule (in milliseconds).

Effective Period

If you selected Enable Schedule in the Properties section, click the Active checkbox next to the From: and/or To: fields to activate your desired time period. If active, the ScheduleWorX64 Runtime Service will stop processing the schedule before the From date and after the To date.

ValueSet

The ValueSet Name will be pre-filled according to the Data source you selected when configuring the ScheduleWorX View or BACnet Schedule View.
The Default ValueSet Value pulldown is populated by values which are determined by the ValueSet name.
