GraphWorX64 uses a windows hierarchy to determine what you can do in the current or active window, how windows relate to one another, when windows require input before you can do something else in the program, or whether windows are independent entities. These behaviors affect program flow and actions, and are very valuable in creating and enforcing logic and behavior. For example, if you define a popup window to be modal, then that window has the focus of user action exclusively and does not allow interaction with other windows that are part of that display. You would use a modal window for an alert box or perhaps for a dialog box. If you define a popup window in a Load Display action that is independent of the current display, then a Close Window action applied to the parent window leaves the child window on the screen; whereas a popup window that is dependent on the parent window would be closed.

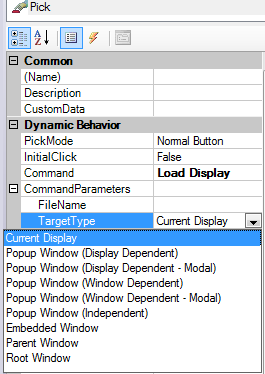

The first place you might encounter window types is if you define a Pick Action that performs the Load Display command. The TargetType property shown in the figure below offers several different window types:
Current Display This assignment refers to the display that is currently active in the order in which displays were loaded. It is not a window type.
Popup Window (Display Dependent) A display dependent popup window appears as an individual window that you can manipulate and set the properties for, but one that closes when the display is closed.
Popup Windows (Display Dependent - Modal) This type of popup window appears as an individual window that you can move and manipulate. When it is open in the display it has the focus for user interaction. Other windows in the display cannot get the focus of user interaction until the modal window is closed. You can only have one modal window opened on the screen at any one time for each display.
Popup Window (Window Dependent) A window dependent popup window can be moved and manipulated and have its properties set. It is not modal, and you can work in other windows while this popup is in view. However, when you close the parent window the window dependent popup closes at the same time.
Popup Window (Window Dependent -Modal) This type of popup window appears as an individual window that you can move and manipulate. When it is selected in the display it has the focus for user interaction for the parent window. Other windows in the display can get the focus of user interaction if they are not related to the modal window. You can have one modal window opened for each unrelated window.
Popup Window (Independent) An independent popup window appears as an individual window that you can manipulate and set the properties for. You can close any window in the display or all other windows and still leave this window open. A close all windows command would close this window as well. When you close a display the independent window is closed.

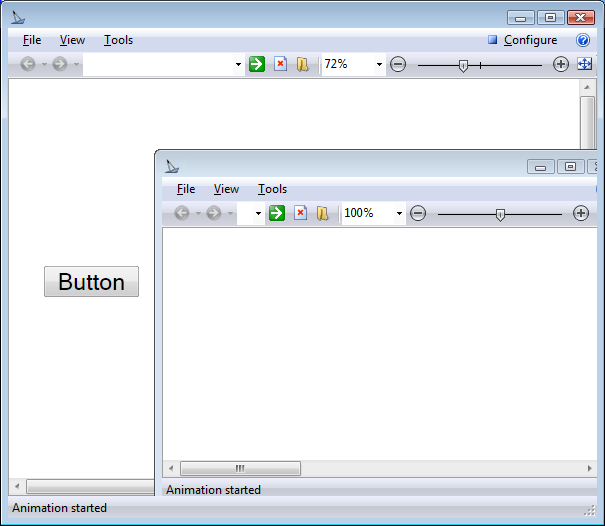

Embedded Window An embedded window is a window contained within another window, and one that doesn't have an independent existence. If you move the embedded window within the parent the contents clips (a modifiable property) when the embedded window is dragged beyond the parent window's boundary. An embedded window can have its properties modified and can have windows elements, menus, and controls in view. The figure below shows an embedded window slightly clipped.
An Embedded Window
Parent Window This is the window that creates the window.
Root Window This is the first windows shown in a display from which all other windows are created.
The Load Display Command's TargetType Property
As windows are opened in a GraphWorX64 display the program maintains a list of the last 50 windows names and order they were used in a buffer. Windows are ordered from first to last, with the selected window being the current window and the first window being the root window. As you click the GraphWorX64 Browse forward or Browse back buttons in the display you move through the order that you viewed the windows as maintained in the buffer. The display file history (forward/back commands) remembers the initial alias settings specified when a display is opened and will reset those aliases when you go back to that display in the file history. Therefore, there are three different windows properties that you need to consider when you want to predict the result of a user action on the currently displayed windows:
Windows type (modal vs. non modal).
Windows relationship to other windows (parent vs. child, dependent vs. independent vs. embedded, and so forth).
Windows Display Order or the position of the window in the Browse order.
