The Runtime Tab of the Schedule Control (from a ScheduleWorX View configuration) Runtime (Calendar View) properties allows you to override the existing schedule or clear a set override. It also provides the Current Status of the schedule as well as lists information regarding the schedule Next Event.

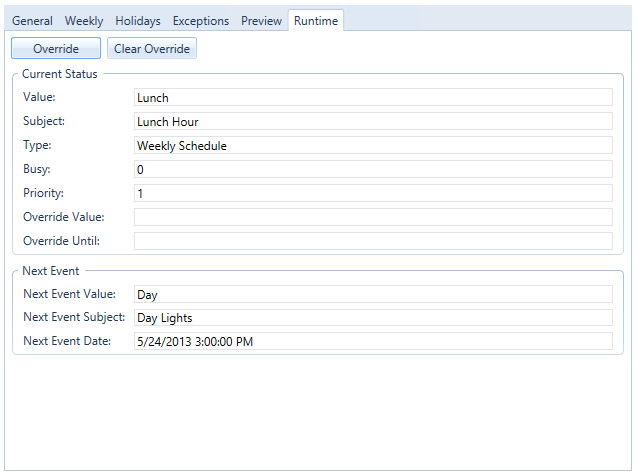

Runtime Tab shown in the Schedule Control (from a ScheduleWorX View configuration) in a GraphWorx64 Display in Runtime
Override - Clicking this button opens the 'Select Value to Override' dialog, shown below. The Values section is populated by the ValueSet Values attributed to the Data source you selected when configuring the ScheduleWorX View or BACnet Schedule View. Clicking the 'Temporary' checkbox sets a limited time for the override to take effect (in Seconds/Minutes/Hours/Days/Weeks). Click the 'Override' button in the bottom right corner to proceed.

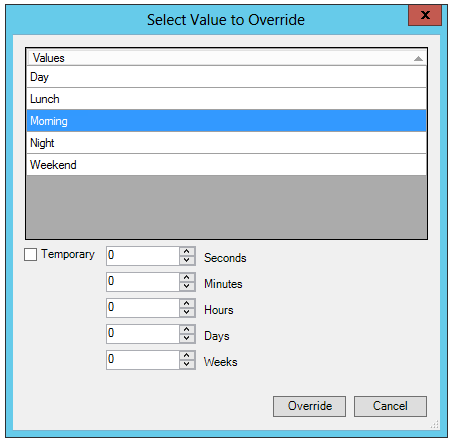

Select Value to Override Dialog
Clear Override - Clicking this button removes any previously set existing Override data.
Current Status - This section lists the Value, Subject, Type, Busy period, Priority, Override Value and Override Until data for the current schedule.
Next Event - This section lists the Next Event Value, Next Event Subject and Next Event Date in the current schedule.
