Misc Section of the View Ribbon

The Misc section on the GraphWorX View Ribbon gives you the following options: Object Count, Runtime Preview, Application Mode, Application Style.

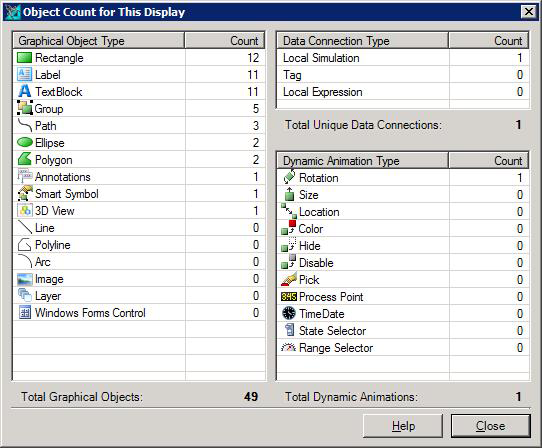

Object Count

Although the object Explorer shows you all of the objects in your display and indicates their order, it doesn't provide a listing of the number of objects in each of the different object types or categories. If you want to see how many objects of any type, the number of data connections, or the number of dynamic animation types that a display has defined, you can use the Object Count function to provide this information.

To perform an object count:

  1. Click the Object Count button in the Misc section on the View ribbon  The Object Count dialog box will display.

Runtime Preview

To enter the Runtime Preview mode:

Or

In Runtime Preview you can select objects, move them about, modify them, right click on them and view and modify properties, and perform many other configuration operations.



To exit Runtime Preview mode, press the Ctrl+R to return to Configuration mode.

Application Mode

To switch between configuration modes, click the Application Mode drop-down menu in the Misc section of the View ribbon and select the mode you desire.

Application Style

The Application Style button displays a menu that allows you to change the look of the application, including icon sizes and different color schemes to choose from.
