Securing Desktop for Operations

This topic introduces IT administrators to the fundamental concepts needed to successfully configure multiple Local Group Policy objects on stand-alone computers. Below is a step-by-step description which helps you to understand how Windows applies each Local Group Policy object and how it resolves conflicts with policy settings.

Prerequisites

To properly perform the examples, the following two prerequisites are required:

1. Create a non-administrative user account via Computer management (clear the “User must change the password at next logon” check box”, select the “Password never expires” and “User cannot change the password” check boxes).
2. Check the current state of the newly created nonadministrative user (log on to the workstation and check the state of start menu and desktop icons, run command, IE).

Create a Custom Management Console

You access Multiple Local Group Policy objects using Group Policy Object Editor. You must add Group Policy Object Editor to the Microsoft Management Console for each Local Group Policy object you want to manage. You should consider creating a custom management console for Multiple Local Group Policy objects (MLGPOs) if you are going to manage many MLGPOs.

1. Log on to the workstation using the administrative account you created during the installation of Windows. Go to Start -> All Programs -> Accessories -> Command Prompt. Type mmc.exe and click Enter.
2. In the Console1 window, click File  Add/Remove Snapin.
3. In the Add/Remove Snap-in dialog box, in the Available snap-ins list, select Group Policy Object Editor, and then click Add.
4. In the Select Group Policy Object dialog box, ensure Local computer appears under Group Policy Object. Click Finish.
5. Select Group Policy Object Editor under the Available standalone snap-ins list again and then click Add.
6. In the Select Group Policy Object dialog box, click Browse. Click the Users tab. Click the Non-Administrators group. Click OK. Click Finish.

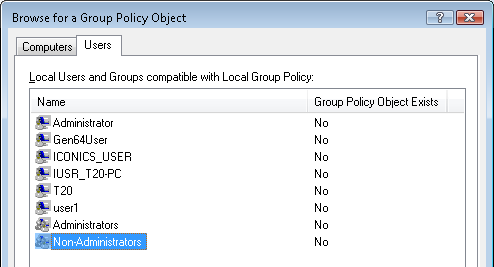

Figure 1- Browsing for the Non-Administrators Local Group Policy

7. Select Group Policy Object Editor under the Available standalone snap-ins list again and then click Add.
8. In the Select Group Policy Object dialog box, click Browse. Click the Users tab. Click the Administrators group. Click OK. Click Finish.
9. Select Group Policy Object Editor under the Available standalone snap-ins list one more time and then click Add.
10. In the Select Group Policy Object dialog box, click Browse. Click the Users tab. Click the name of the administrative user you created during the installation of Windows. For example, if you named your administrative user LocalAdminUser, then click LocalAdminUser. Click OK. Click Finish. Click OK.
11. In the Console1 window, click File, click Save, and then click Desktop. Type MLGPO in the filename text box and click Save. You can now use the MLGPO.msc file you just saved to the desktop to start the MMC console.

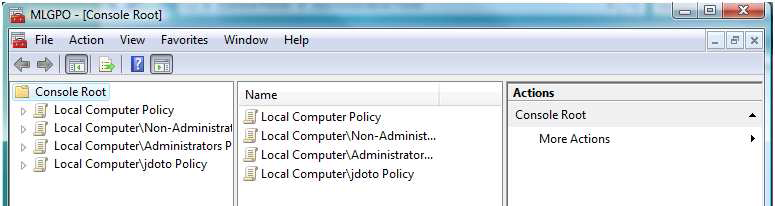

Figure 2 - View of the Newly Created MLGPO Console

Multiple Local Group Policy Scenarios

The following scenarios show you how to apply Group Policy settings in different layers:

• Local Group Policy
• Non-Administrators Local Group Policy
• Administrators Policy
• User-Specific Local Group Policy

NOTE: The policy settings in these scenarios change visual elements within the user environment, making it easier to notice changes for each Local Group Policy object. These policy settings are not the recommended policy settings for a kiosk scenario and are likely to change with each kiosk environment. Administrators should carefully consider all policy settings to decide which policy settings are proper for their environment.

Local Group Policy Scenario

The Local Group Policy object contains both computer settings and user settings. You can use the Local Group Policy to apply policy settings specific to the computer and common policy settings that apply to all or most of the users of the computer.

Define Local Group Policy:

1. Log on as the administrative user you created during the installation of Windows. Double-click the MLGPO.msc file on your desktop that you created in the previous portion of this document.
2. Click Local Computer Policy. Click the arrow next to Administrative Templates under the User Configuration node.
3. Click the arrow next to Windows Components and Internet Explorer. Click Internet Control Panel. Note the details pane shows all policies as Not Configured.
4. Use Table 1 below to define each policy settings. When finished, close the MLGPO console by clicking File and then clicking Exit. If prompted to save the console, click No.

You have successfully defined policy settings in the Local Group Policy object. Now, check the results of the policy settings you performed in Local Group Policy.

To check the results, you can open an Internet Explorer window and click on Tools -> Internet Options. You will see that the features you denied are no longer available.

Non-administrators Local Group Policy Scenario

The Non-Administrators Local Group Policy object contains user policy settings. Windows applies settings in this Local Group Policy object to users who are not members of the local administrators group. In this scenario, you will configure policy settings in the Non-Administrators Group Policy object using the list of policy settings from Table 2. These Policy settings will change the behavior of the Start Menu and taskbar.

Define Non-Administrators Local Group Policy:

1. Log on to the workstation with the local administrative user account you created during the installation of Windows.
2. Open the MLGPO console and click Local Computer\Non-Administrators Policy.
3. Click the arrow next to Administrative Templates under User Configuration. Click Start Menu and Taskbar.
4. Use the Table 2: Non-Administrators Local Group Policy to define each policy setting. When finished, close the MLGPO console by clicking File and then clicking Exit. If prompted to save the console, click No.
5. Log off of the computer.

You have successfully configured policy settings for the Non-Administrators Local Group Policy object. Check the results of editing the Non-Administrators Local Group Policy object and check how it works with the Local Group Policy object.

To check the results, logon to the workstation with previously created non-administrative user account. Icons do not appear on the desktop. Open the Start menu and you will see that icons are not displayed there. Also the shortcut menu does not appear in taskbar, and the run command is not accessible. You can compare the behavior of Start menu and Internet Explorer between two different users when you log off with nonadministrative account, and log in with administrator account.

Administrators Local Group Policy Scenario

The Administrators Local Group Policy object contains user policy settings. Windows applies this Local Group Policy object to users who are members of the local administrators group. Use the Administrators Local Group Policy to set policy settings only for local administrators. In this scenario, you will set a single policy setting, which will add a command to the Start menu for administrators.

Define Administrators Local Group Policy:

1. Open the MLGPO console, and then click Local Computer\Administrators Policy.
2. Click the arrow next to the Administrative Templates under User Configuration.
3. Click Start Menu and Taskbar. The details pane shows all policies as Not configured.
4. In the details pane, double-click the Add the Run command to the Start Menu policy setting.
5. In the Add the Run command to the Start Menu dialog box, click Enabled. Click OK to finish.

To check the results, logon to the computer as local administrative user you created during the installation of Windows. Open the Start menu and you will see all the programs and features available there. When you log off of the computer and log on as the non-administrative user you will not see anything available in the start menu. That means, there are no limitations for administrative user, but non-administrative user is strictly limited.

User-Specific Local Group Policy Scenario

User-specific Local Group Policy objects contain user policy settings and apply to a specific local user. It is not necessary to setup this specific scenario because standard setting for regular windows user will be taken from standard Local Group Policy.

NOTE: You should follow "Local Group Policy Scenario" before following the current scenario. The policy settings in this scenario conflict with policy settings enabled in "Local Group Policy scenario." If you decide to change anything in this section, don’t forget to double check the changes you made by logging the specific user into your computer.

These scenarios show some of many ways you can configure Multiple Local Group Policy objects. You can use Local Group Policy to set global limits and then use the Administrators, Non-Administrators, and user-specific Local Group Policy objects to remove the limits. Alternatively, you can use each Local Group Policy to restrict the respective group or user it applies to.

Delete a Local Group Policy Object

Occasionally, you may need to remove the entire Local Group Policy object rather than change multiple policy settings. Use the following procedure to delete the Administrators, Non-Administrators, and user-specific Local Group Policy objects.

NOTE: You cannot delete the Local Group Policy object. You must set each policy setting to Not Configured to return the Local Group Policy object to the default settings.

To Delete a Local Group Policy Object:

1. Log on to the computer with the local administrative user account you created during the installation of Windows.
2. Double-click the MLGPO icon on the desktop. Click File, and then click Add/Remove snap-in.
3. Click Group Policy Object Editor under the Available standalone snap-ins list, and then click Add.
4. In the Select Group Policy Object dialog, click Browse. Click on the Users tab. Right-click on the Administrators group. Select Remove Group Policy Object. Also delete Non-administrators from the list.

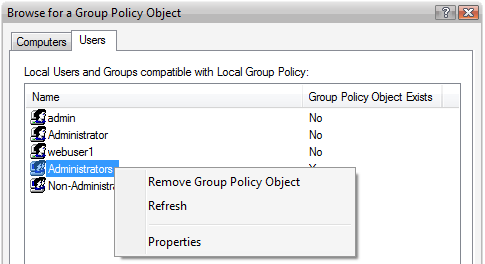

Figure 3 - Removing a Local Group Policy

5. Click Yes to confirm the deletion of the Local Policy object. The text located in the Group Policy Object Exists column next to Administrators will display No.
6. Click Cancel three times to return to the MLGPO console.
7. Click File, and then click Exit to close the MLGPO console. Click No, if prompted to save the console.
8. Log off of the computer.

NOTE: After deleting a Local Group Policy object you change all the defined policy settings back to Not Configured. This removes any of the policy settings that you previously applied to the user. Don’t forget to double check the results after deleting a Local Group Policy object. You can simply log on with local administrative user or nonadministrative user and check that it has been changed back to default settings.

Tables Containing Local Group Policy

These two tables contain the necessary settings for Local Group Policy and Non-administrators Local Group Policy. You should not change any policy settings do not appear in this appendix. Changing additional policy settings may alter the results of the scenarios described in this guide.

Table 1 - Local Group Policy

Table 2 - Non-Administrators Local Group Policy Settings
