Creating a Pivot Control

A Pivot Control is a simple, interactive way to organize high volumes of related data into a condensed system.

1. Begin by opening a new GraphWorX64 display either through GraphWorX64 or through the Workbench.

2. Select the Controls tab.

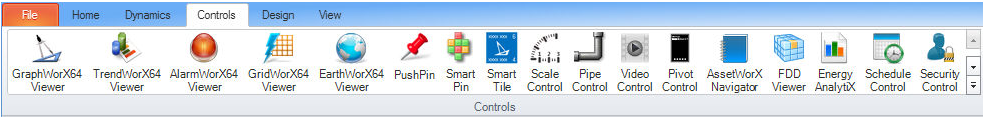

Controls Ribbon

3. Select the Pivot Control icon.

4. To begin adding content to the Pivot Control, select the Add Page icon.

Add the desired number of pages. Pages can always be deleted by selecting the Remove Page icon.

Each individual page is considered a Pivot Item within the Pivot Control Explorer.

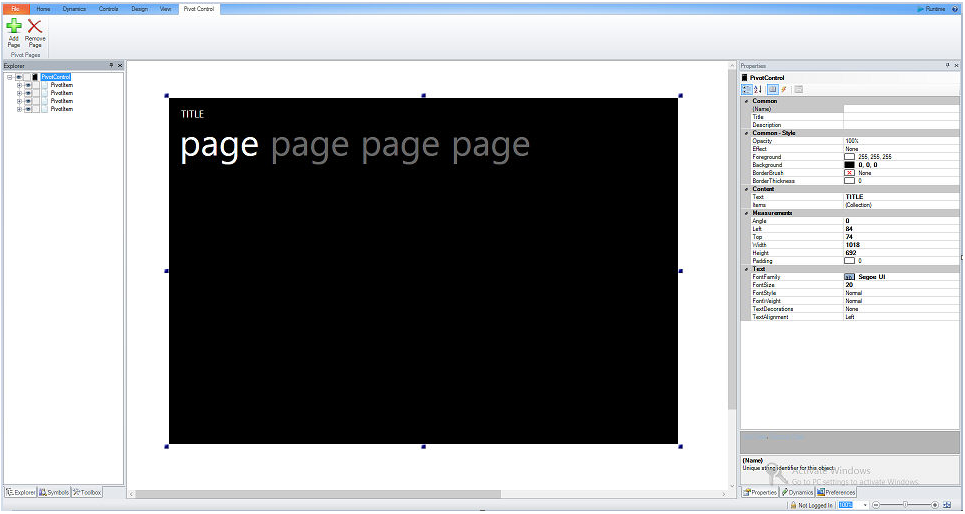

Pivot Control with Pivot Items

Pivot Controls are especially effective when used in conjunction with a touch-screen. To use a pivot control in runtime, see Pivot Control Runtime.

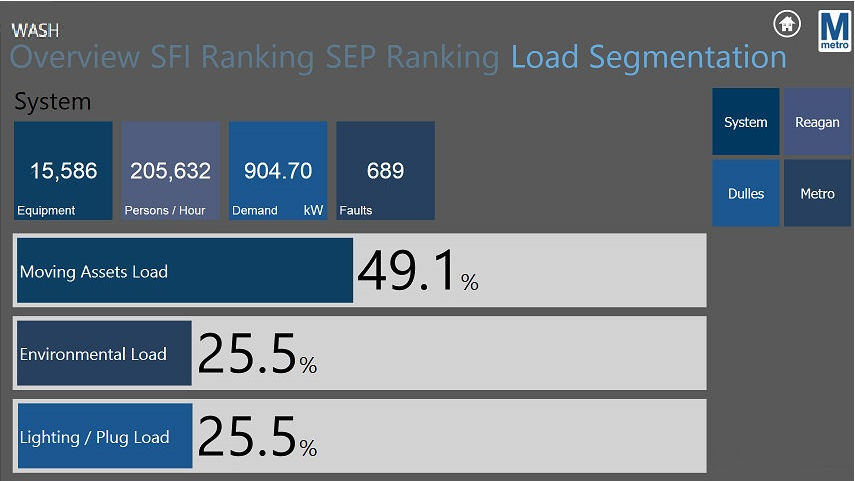

Pivot Control in Runtime


See also:

Pivot Control

Controls Ribbon in GraphWorX 2D
