MIB items are organized in a tree structure of folders and items. Use folders to organize items into a hierarchical tree structure.
To Create a New MIB folder (or rather, a new "Oid" folder):
1. Right-click the MIB Items tree control and select Oid Folder from the pop-up menu, as shown in the figure below.
Creating a New MIB Folder (Oid Folder)
-OR-
Select the MIB folder, then click the Add button in the Edit section of the Home ribbon, then click Oid Folder.
Creating a New MIB Folder (Oid Folder)

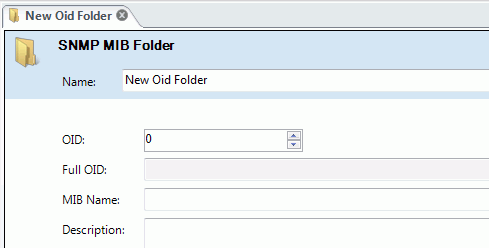

The properties dialog for the new data item folder appears in the right-hand pane of the SNMP Connector in the GENESIS64 Workbench, as shown in the figure below.
Setting the Properties for the New MIB Folder
In the Name field, type a name for the new folder.
To complete the folder's properties, refer to the MIB Folder Properties in SNMP Connector topic.
When you have finished configuring the folder properties, click the Apply button. The new folder appears under device in the tree control.
