Collection Groups

Collection Groups allow you to configure groups used to collect data in the publish lists.

To Edit a Collection Group:

Open your project in the Workbench, then expand the Internet of Things node.
Right-click on the Collection Groups node, then select Edit from the pulldown menu, as shown below.

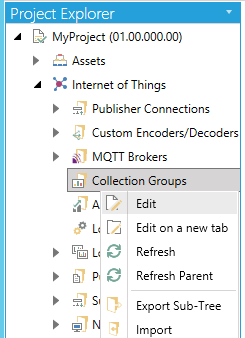

Editing a Collection Group from the Project Explorer

-OR-

Select the Collection Groups node in the Project Explorer, then click on the Edit button, shown below, in the Edit section of the Home ribbon in the Workbench.

Edit Button

This opens the Collection Groups properties within the Workbench, as shown below. Click on the "+ Click here to add new item" link to add a new Collection Group.

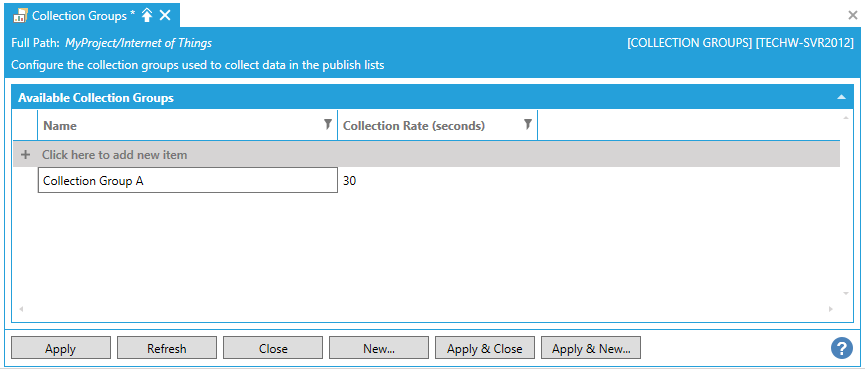

Collection Groups Properties

Once you have added a new item, you can update the following settings.

Name - Enter a name for the Collection Group in the text entry field.
Collection Rate (seconds) - Enter a collection rate (in seconds) in the text entry field.

Once you have completed making your changes, click on the Apply button and then on the Close button to return to the Workbench.
