Device Nodes

To Add a Device Node:

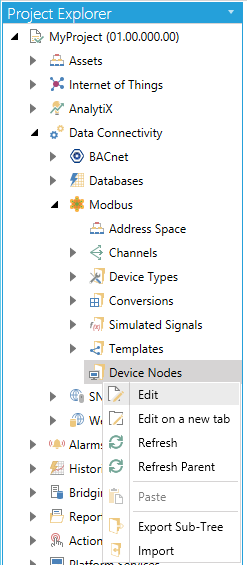

1. Expand your project in the Workbench and then the Data Connectivity and Modbus nodes. Double-click on the Device Nodes node or right-click it in the Project Explorer, then select Edit, as shown below.

Editing the Device Nodes Node in the Project Explorer in the Workbench

-OR-

Select the Device Nodes node then click on the Edit button, shown below, in the Edit section of the Home ribbon in the Workbench.

Edit Button

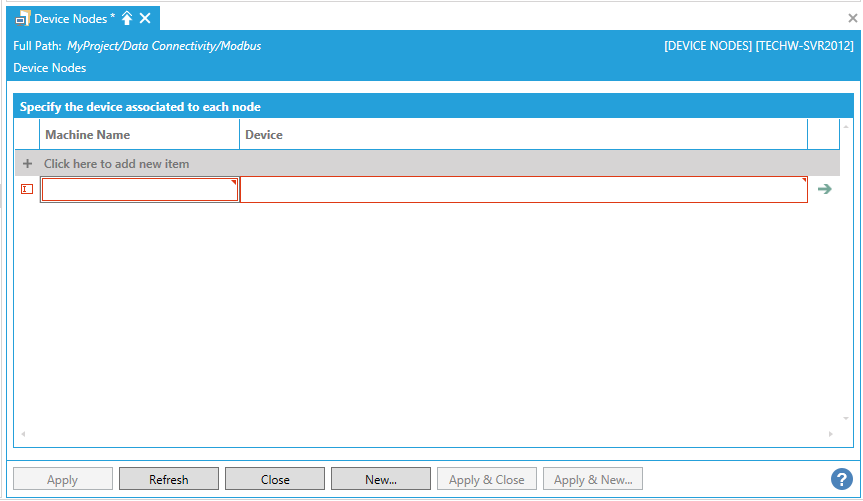

2. This opens the Device Nodes properties window in the Workbench, shown below.

Device Nodes Properties

• Machine Name - Enter a Machine Name, in the text entry field, connected to the device associated to each node.

• Device - Enter a Device, to associate to each node, in the text entry field.

Once these fields are completed, you can then click on the to jump to the device's configuration properties.

3. Click on Apply, then Close to return to the Workbench.

See Also:

About Modbus Configurator
