About Hyper Historian to Hyper Historian



The Hyper Historian to Hyper Historian feature includes multiple benefits, including:

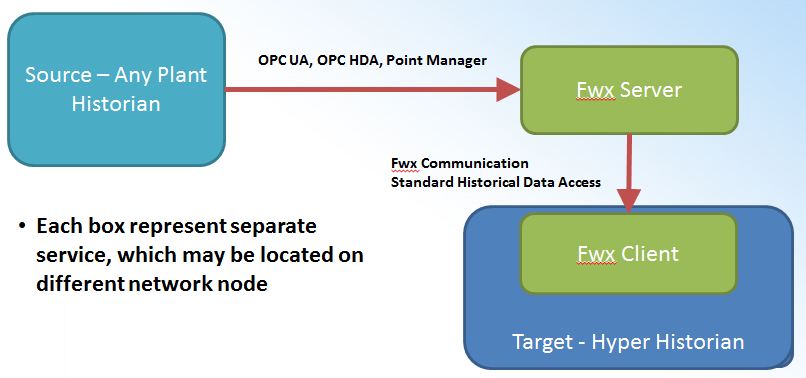

The following image illustrates Basic data flow in Hyper Historian.



Basic Data Flow

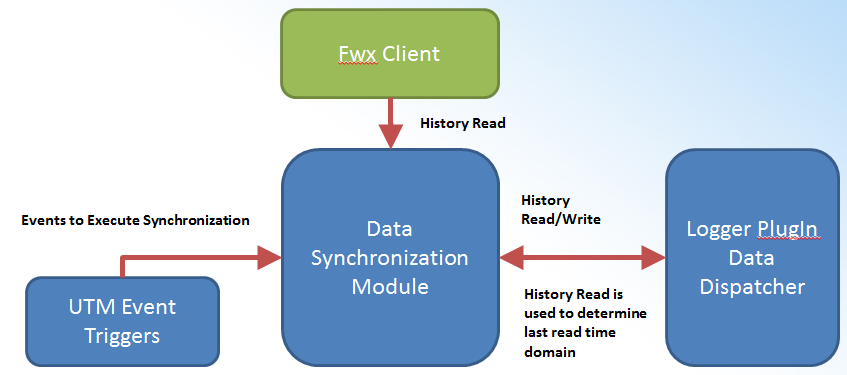

This image shows the Target Hyper Historian Structure.



Target Hyper Historian Structure

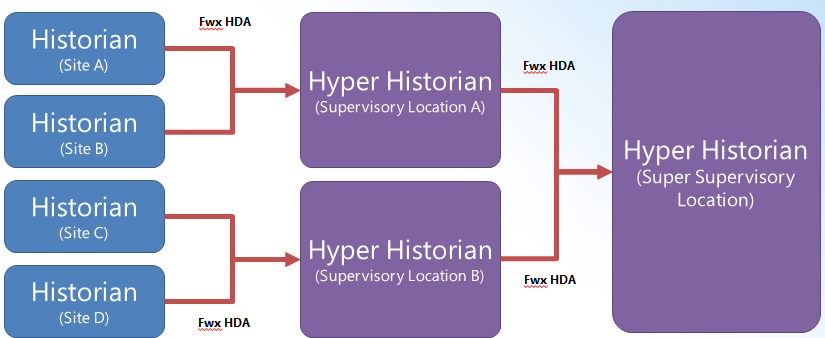

Multi-Tier Synchronization

Enhanced Data Synchronization

The Enhanced Data Synchronization available through the Hyper Historian to Hyper Historian feature provides the ability detect changes done after synchronization. It requires support from a Source Historian Server and is supported for Hyper Historian to Hyper Historian connections only. Third-party historian servers can utilize manual data synchronization.



The design of the Enhanced Data Synchronization includes "data modification snapshots". Each time values are inserted or deleted for a particular tag, a new record is added to the snapshot historical database (modified time-domain, type of modification). The snapshot data is exposed as a property within the source data tag. The target historian reads the snapshot info first, then the historical data (if needed).

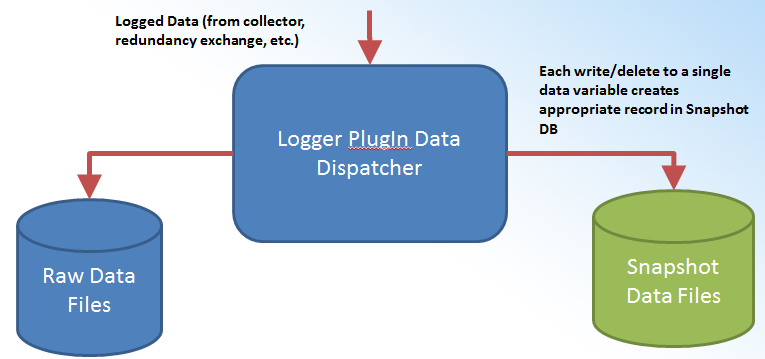

Snapshot Processing Architecture



Snapshot processing involves a snapshot database (standard Hyper Historian Logger [file logger]). This contains data for synchronization purposes only. The processing involves short-term, persistent storage (one day, one week), and doesn't require archiving. The snapshot data is available as a property data variable on a source (raw) data variable. Group-level settings are optional.

Synchronization Scenarios

Without Snapshot Data on Source Historian

With Snapshot Data on Source Historian

Both scenarios support manually entered re-synchronization tasks.
