Backup Device

To Back Up a Device:

1. Open the BACnet Provider in the Workbench.
2. Expand the connected BACnet database and then the Devices branch. Select the Device you wish to back up. Right-click on it then click on Backup Device from the popup menu, as shown below.

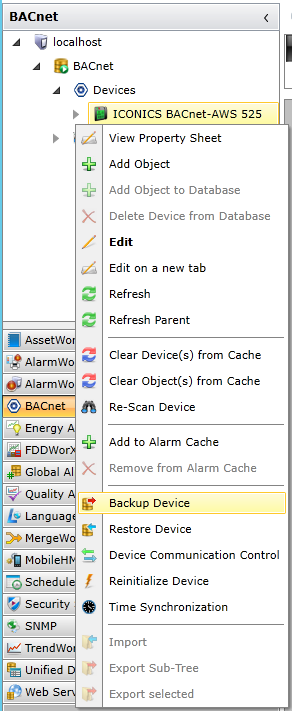

Backing Up a Device

3. The Backup Device Options window appears. Enter the device's password to start the backup procedure, then click OK.

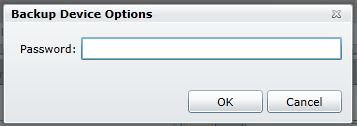

Backup Device Options window

The following window will then appear to let you know how many files were copied during the backup.

Backup Device Options - Copied Files

See Also:

Restore Device
