Adding a Trend Log Multiple Object
In order to create a Trend Log Multiple object and to configure its properties, follow these steps:
- Launch the Workbench.
- Switch to the BACnet provider.
- In the tree, find a device and your desired object underneath.
- Double-click on the object to open its properties.
- Choose ‘Trend Log Multiple’ in the drop-down list.

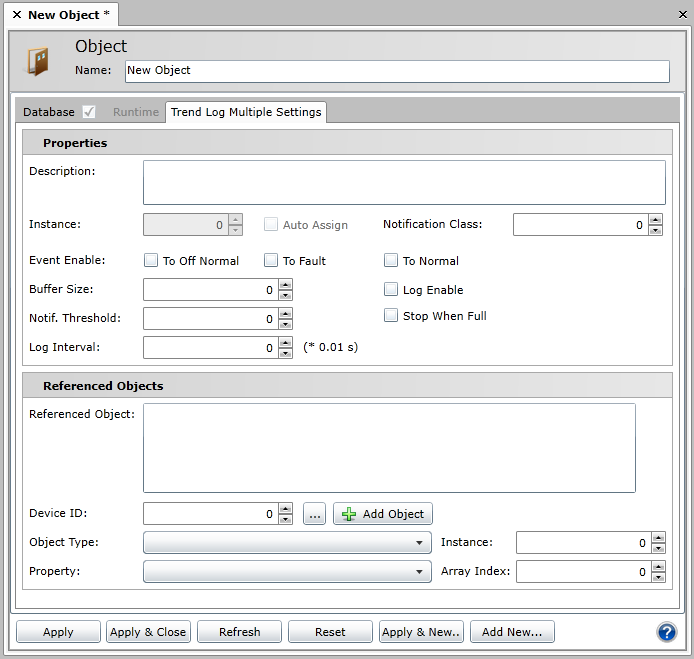

- A New Trend Log Multiple form will open in the right-side window of the BACnet provider.
- Fill in all the properties you need to configure and press the Apply button to create a Trend Log Multiple object in the device (if the device supports it).
