Nodes in AlarmWorX64 Logger

Each node represents a computer or system on the network that is configured to run one or more of the named logger configurations in the active AlarmWorX64 Logger configuration database. When the logger executable is run, it looks for its network computer name in the list of nodes to determine which logger configuration(s) to run. If a logger cannot find its computer name in the list of nodes, it will run the default configuration.

To Add a New Node to a Configuration:

1. Right-click the Nodes tree and select the Add Node command from the context menu. The New Node form appears.

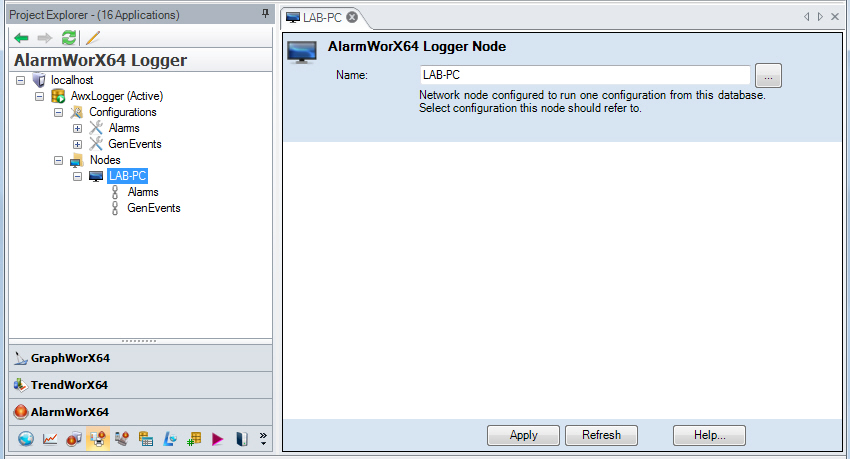

   AlarmWorX Logger Node Form



2. Enter the name of the network node in the Name text box.

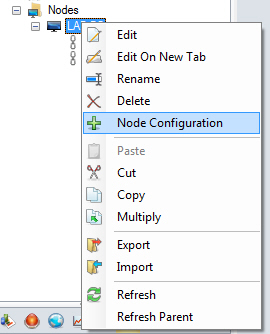

3. Right click the node and select the Add Node Configuration command.



4. Select the configuration that will be connected to the node from the Configuration Name drop-down menu.

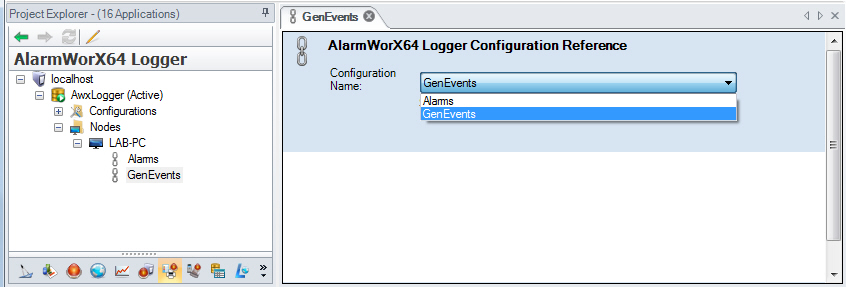

   Configuration Reference



5. Repeat Steps 3 and 4 to add any additional configurations to your node.

6. Click the Apply button.

For additional information, refer to Configuring the Logger.

To Link a Node to a Configuration:

1. Right-click a Node that appears beneath the Node branch of the AlarmWorX64 Logger in the tree explorer then click on Add Link to Configuration. OR, select a Node in the tree explorer then click on the Add Link to Configuration button in the Edit section of the Home ribbon in the Workbench.

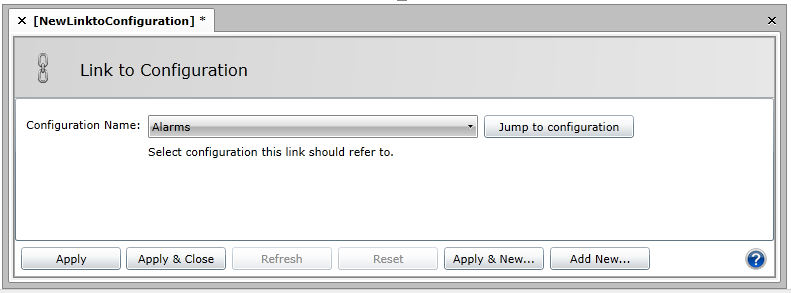

2. This opens the Link to Configuration window. Use the Configuration Name pulldown to select the Configuration to which the link should refer. Clicking on the Jump to configuration button opens the selected Configuration's properties in a separate tab within the Workbench.
3. Once you have selected the Configuration, click Apply to save your changes or Apply & Close to save your changes and return to the Workbench.

See Also:

Configuring the AlarmWorX Logger
