Properties Tab in the Script Editor

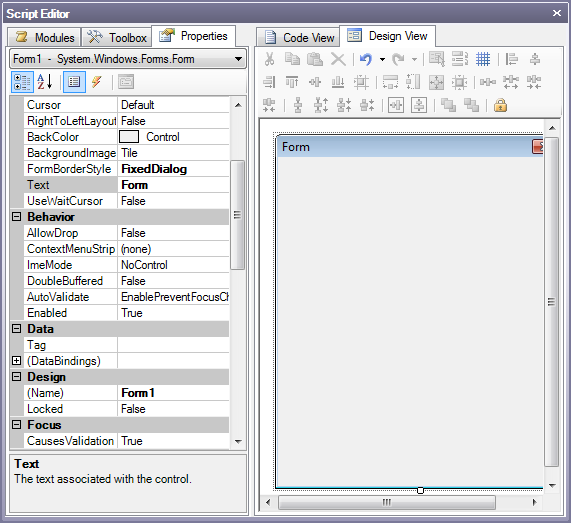

When you are working in the Script Editor Design View mode to create a form, you can use the Properties tab (shown in the figure below) to configure properties and events for your forms.

Editing Form Properties

You can select the form from the drop-down list at the top of the Properties tab. The Properties toolbar, shown in the figure below, enables you to navigate selected items in the Properties tab.

Properties Toolbar

Properties Toolbar Buttons

Categorized: Lists the object properties by category in the Property Editor.

Alphabetic: Lists the object properties in alphabetical order in the Property Editor.

Properties: Displays the properties for the form itself as well as objects (such as, .NET form controls added from the Toolbox) that are added to the form.

Note. For information about properties for .NET form controls, see the article called "Building Windows Forms Controls and Components with Rich Design-Time Features, Part 2" by clicking here.

Events: Displays the events for the selected form or objects (i.e., the .NET form controls added from the Toolbox) within the form.

Property Pages: Displays the property pages for the selected object.
