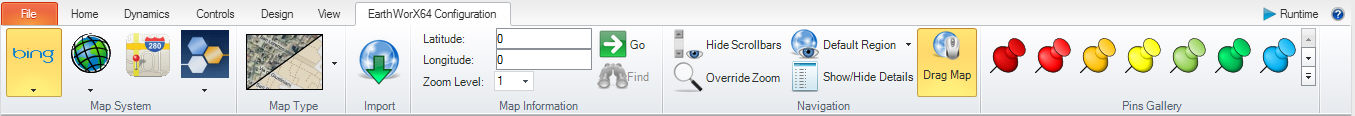

EarthWorX Configuration Ribbon
The EarthWorX Configuration ribbon has the following sections. Click on the hyperlinks below to see more information about sections of the ribbon.
Map System - Determines the database from which the maps will be loaded. EarthWorX has four options available:
icon to access Bing maps (this is the default setting).
icon to access esri maps.
icon to access Google maps.
icon to access OGC/WMS maps.
Map Type - Determines how the map displays.
Import - Opens a dialog box for importing GPS data from a .GPX file in order to establish waypoints, routes, and tracks on the map.
Map Information - Useful for going to a specific location on the map and for zooming in and out.
Navigation - Contains navigational tools for configuration and runtime views of the map.
Pins Gallery - The Pins Gallery section on the EarthWorX ribbon lets you choose from a wide variety of icons to use to designate points or places.
See
Controls Ribbon in GraphWorX 2D
